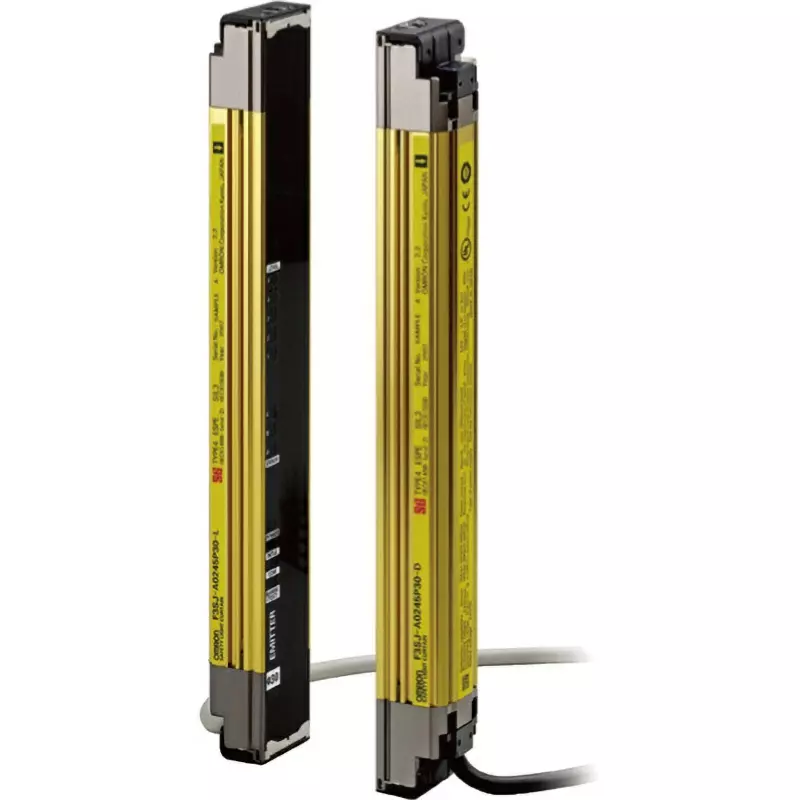

| Type of Product | Safety Light Curtain |
| Model No | F3SJ-A1115P20-TS |
| Type | Auto Reset Fixed Model |
| Protection Class | IP65(Iec60529) |
Type of Product |
Safety Light Curtain |
Model No |
F3SJ-A1115P20-TS |
Type |
Auto Reset Fixed Model |
Protection Class |
IP65(Iec60529) |
Output |
PNP Output |
Connection Type |
Connector Type (M12, 8-Pin) |
Case Material |
Aluminum, Zinc Die-Cast (Including Metal Parts On Both Ends) |
Cell Spacing (mm) |
(Optical Axis) 15 |
Monotaro ID |
46469543 |
Power Supply Voltage |
DC 24 ± 20% (ripple p-p ≤ 10%) |
Sensor Type |
Type4 Safety Light Curtain |
Series |
F3SJ-A20 Series |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual, mounting brackets (F39-LJ1 for top and bottom mounting), intermediate mounting brackets (*), error mode label, quick installation manual (QIM) 1 set included |
Set Contents |
Emitter, Receiver |
Applicable Standard |
IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) IEC61496-2, EN 61496-2, UL61496-2 (Type 4 AOPD) IEC61508-1 to -3, EN61508-1 to -3 (SIL3) ISO13849-1: 2015, EN ISO13849-1: 2015 (PLe/Safety Category 4) UL508, UL1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Detection Distance (m) |
0.2-9 |
Mass (g) |
1889.5 (Single), 3172.5 (Packed) |
Detection Distance |
0.2 to 9 m |
Input Voltage (V) |
Test Input, Interlock Selection Input, Reset Input, Muting Input: On Voltage: 9 To Vs (Short Circuit Current Approx. 2.0 mA) Off Voltage: 0 To 1.5, Or Open External Relay Monitor Input On Voltage: 9 To Vs (Short Circuit Current Approx. 3.5 mA) Off Voltage: Open Note: Vs Here Is The Voltage Value In The Operating Environment. |
Lens Diameter (Φmm) |
5 |
Connector |
M12, 8 Pins |
