Ships within 25 days
View
View
View
View
| Type of Product | Linear Bush |
| Model No | LM 6UU |
| Monotaro ID | 7231375 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
LM 6UU |
Monotaro ID |
7231375 |
Country of Origin |
Japan |
Tolerance |
0 to -5 μm |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
8 |
Outer Diameter Tolerance (mm) |
0 to -0.011 |
Shape |
Straight |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
12 |
Basic load rating Coa (N) |
265 |
Basic load rating Ca (N) |
206 |
Ball Material |
SUJ2 (high carbon chromium steel) |

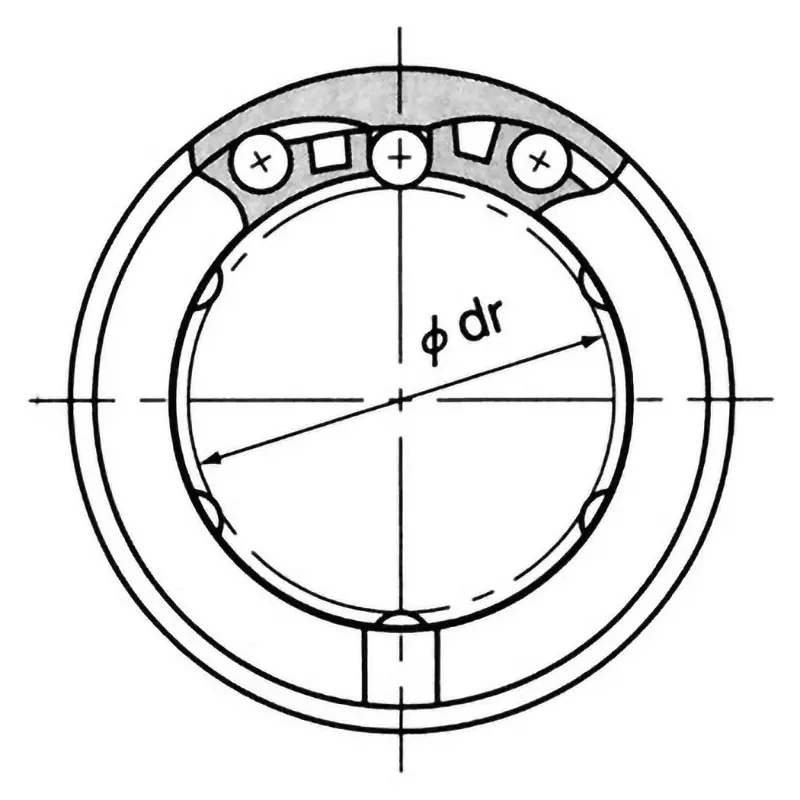

Dimension Dr (Φmm) |
6 |
Maximum Eccentricity (μm) |
12 |
Number of Ball Raws |
4 |
Import Country |
Direct Import from Japan |
Overall Length L |
19 mm (0 to -0.2) |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |
Dimension H0 (mm) |
1 |
Dimension D0 (Φmm) |
11.5 |
Dimension L2 |
1.1 mm |
