| Type of Product | Linear Bush |
| Model No | LM 16LUU |
| Type | Long Type |
| Monotaro ID | 7231761 |
Type of Product |
Linear Bush |
Model No |
LM 16LUU |
Type |
Long Type |
Monotaro ID |
7231761 |
Country of Origin |
Japan |
Tolerance |
0 to -7 μm |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
145 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Straight (long type) |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
28 |
Basic load rating Coa (N) |
2350 |
Basic load rating Ca (N) |
1230 |
Ball Material |
SUJ2 (high carbon chromium steel) |

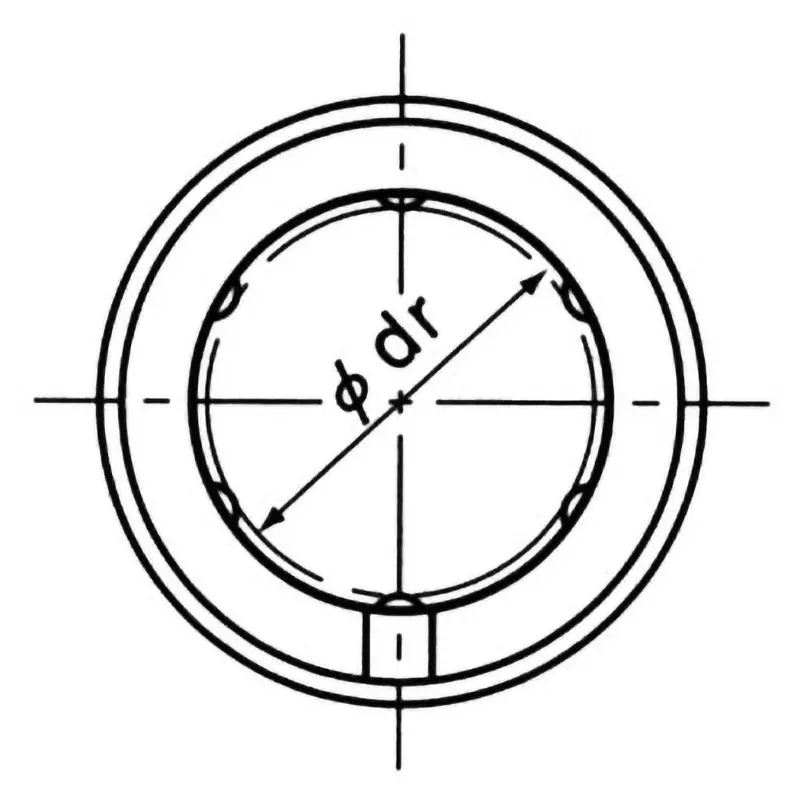

Dimension Dr (Φmm) |
16 |
Maximum Eccentricity (μm) |
15 |
Number of Ball Raws |
5 |
Import Country |
Direct Import from Japan |
Overall Length L |
70 mm (0 to -0.3) |
Special Features |
Sealed on both ends of the outer cylinder |
Pipe Material |
SUJ2 (high carbon chromium steel) |
Seal Material |
Rubber |
Dimension D0 (Φmm) |
27 |
Dimension L2 |
1.6 mm |
