| Type of Product | Precision Ball Screw |
| Model No | BNK 1616-3.6G2+321LC7Y |
| Type | Standard Lead |
| Monotaro ID | 7258124 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 1616-3.6G2+321LC7Y |
Type |
Standard Lead |
Monotaro ID |
7258124 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal and end cap |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

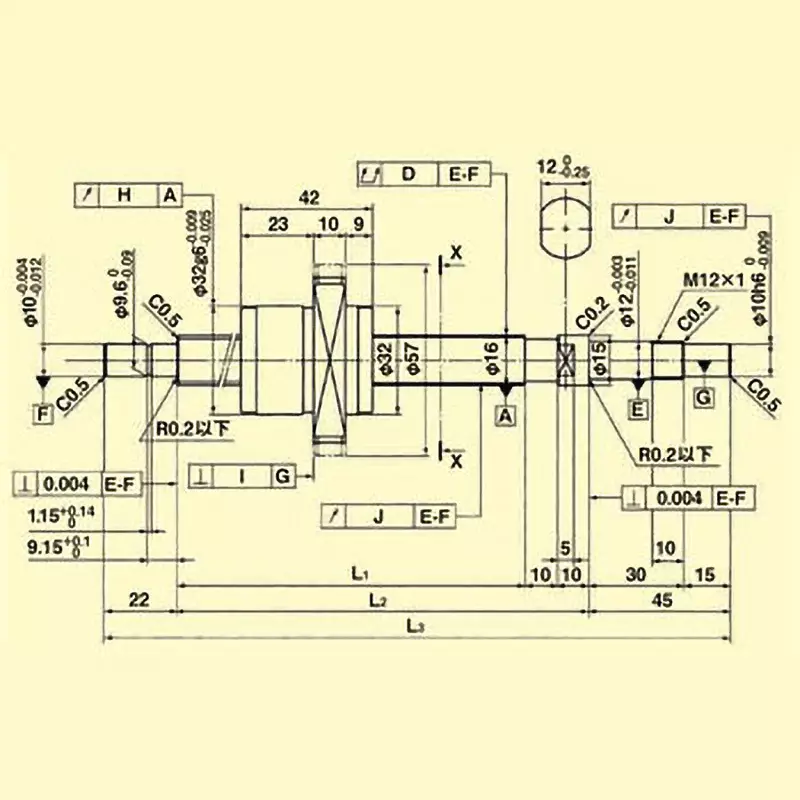

Dimension L2 |
254 mm |

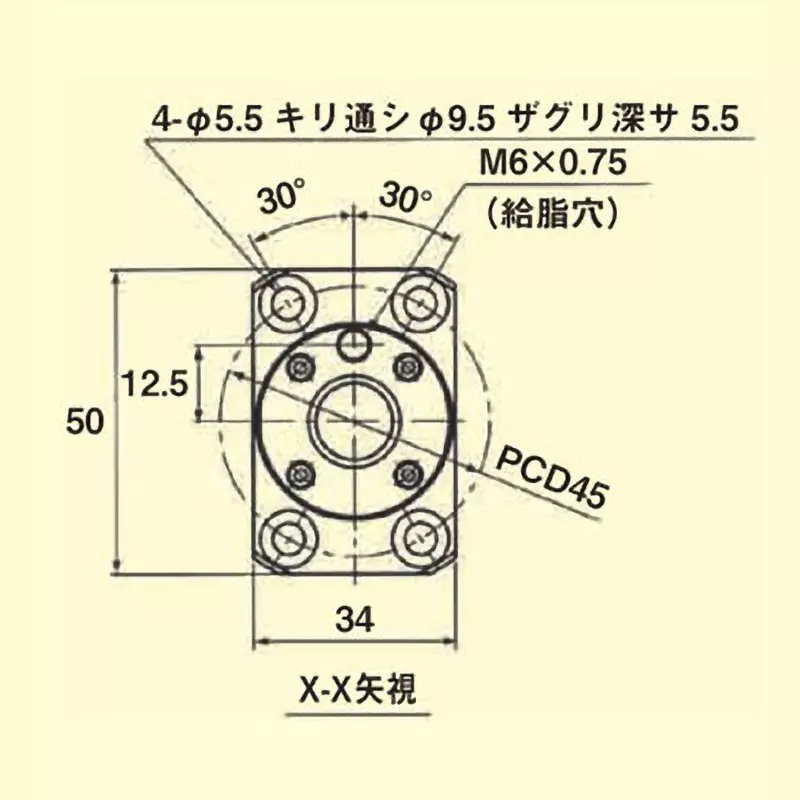

P.C.D (mm) |
45 |
Dimension L3 (mm) |
321 |
Variation |
±0.05/300 mm |
Stroke (mm) |
150 |
Dimension L1 |
234 mm |
Nut Outside Dia |
Φ32 mm (g6：-0.009 to -0.025) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
16.649999999999999 |
Squareness (mm) |
1.7999999999999999E-2 |
Lead |
16 mm |
Basic Static Load Rating (kN) |
14.3 |
Basic Dynamic Load Rating (kN) |
7.1 |
Shaft Outer Diameter |
16 mm |
Root Diameter |
13.7 mm |
Start Type |
2 |
Spiral Angle |
Right direction |
Bore Diameter (mm) |
9.5, depth: 5.5 |
