| Type of Product | Linear Ball Slide |
| Model No | LS852 |
| Type | LS/LSP/LSC Type |
| Monotaro ID | 75119125 |
Type of Product |
Linear Ball Slide |
Model No |
LS852 |
Type |
LS/LSP/LSC Type |
Monotaro ID |
75119125 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
15 |
Import Country |
Direct Import from Japan |

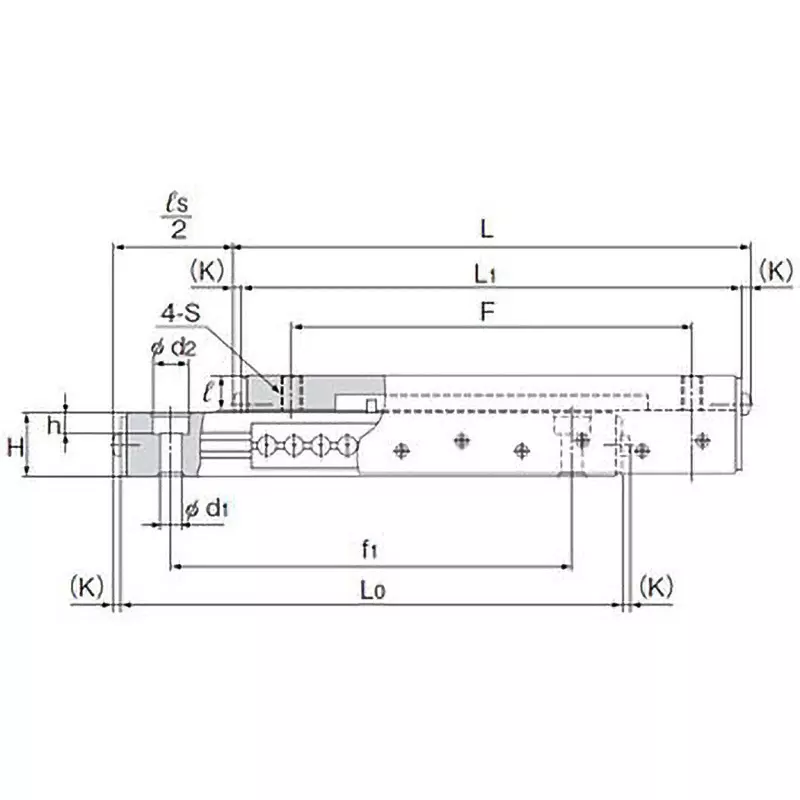

Dimension H (Φmm) |
4.7 |
Dimension B (Φmm) |
5.5 |
Dimension L1 |
51 mm |
Dimension M |
8 mm |
Dimension T |
7.6 mm |
Dimension W |
14.2 mm |
Dimension L (mm) |
54.6 |
Basic Load Rating C (kN) |
68.6 kN |
Basic Load Rating Co (kN) |
118 kN |
Dimensions d1 x d2 x h (mm) |
2.2x3.9x1.4 |
Dimension W1 (mm) |
6.2 |
RoHS Directive |
Correspondence |
Dimension F (Φmm) |
41 |
Dimension Ls (mm) |
25 |
Dimension F1 |
35 mm |
Dimension L0 (mm) |
54.6 |
Dimensions S x l (mm) |
M2x2.7 |
