Ships within 25 days
View
View
View
View

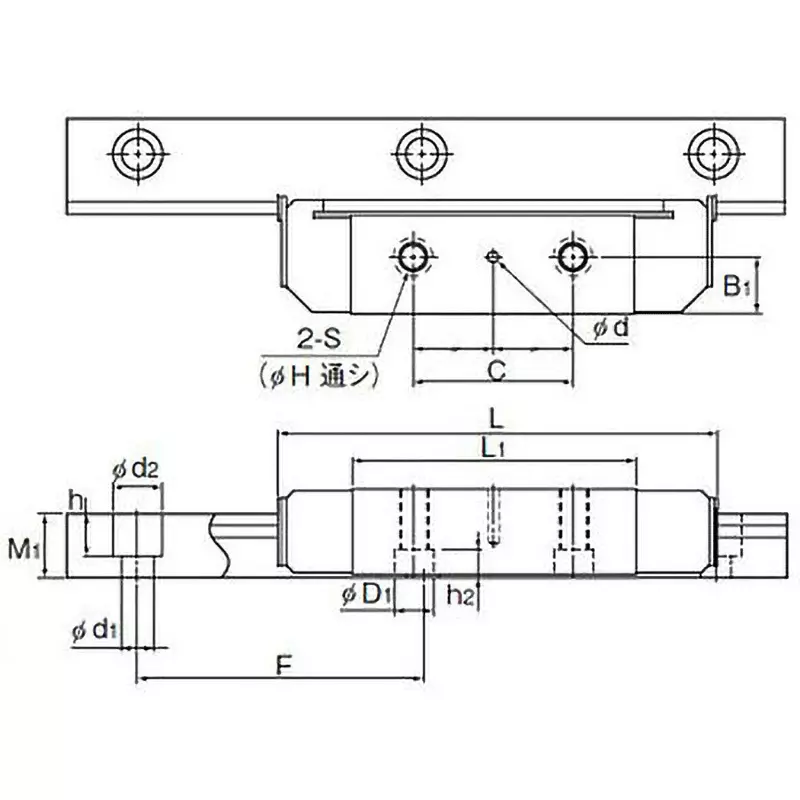

| Type of Product | Linear Motion Block |
| Model No | HR4085TUUBLOCK |
| Type | HR Type |
| Monotaro ID | 75094905 |
Type of Product |
Linear Motion Block |
Model No |
HR4085TUUBLOCK |
Type |
HR Type |
Monotaro ID |
75094905 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Single Block |
Dimension H (Φmm) |
12.5 |
Dimension d1 (Φmm) |
20 |
Dimension K |
38 mm |
Dimension C |
110 mm |
Dimension L1 |
158.9 mm |
Basic Static Load Rating (kN) |
103 |
Basic Dynamic Load Rating (kN) |
95.1 |
Dimension B1 (mm) |
24 |
Mass (Kg) |
1.7 |
Dimension T |
36 mm |
Dimension W |
50.4 mm |
Dimension L (mm) |
215.9 |
Dimension D (Φmm) |
4 |
RoHS Directive |
Correspondence |
Height (mm) |
40 |
Block Width mm |
50.4 |
Block Height mm |
38 |
Dimensions w (mm) |
85 |
Dimension H2 |
13 mm |
