| Type of Product | Linear Bush |
| Model No | LMK 25UU |
| Monotaro ID | 7232626 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
LMK 25UU |
Monotaro ID |
7232626 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mounting Hole Diameter (Φmm) |
5.5x9.2x5.4 |
Mass (g) |
300 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Square flange type |
Specifications |
Flange square |
Outer Diameter D (Φmm) |
40 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

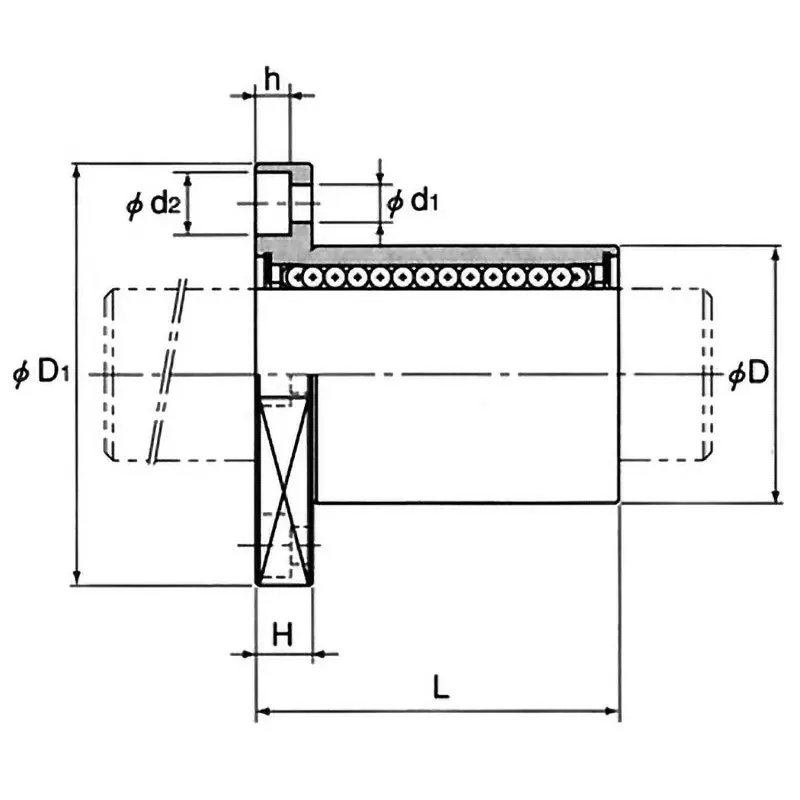

Overall Length L |
59 mm (0 to -0.3) |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |
Trusco Part No. |
293-5155 |
Dimension H (Φmm) |
8 |
Dimension d1 (Φmm) |
62(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：5.5x9.2x5.4 |
Squareness (microns) |
15 μm |

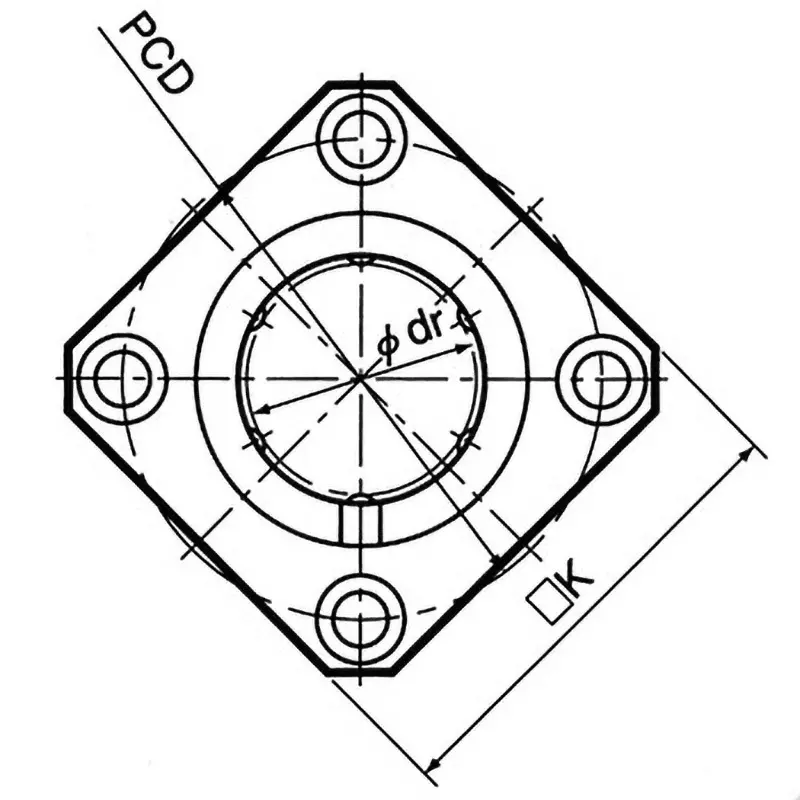

P.C.D (mm) |
51 |
Dimension K |
50 mm |
