| Type of Product | Linear Bush |
| Model No | SC 50UU |
| Monotaro ID | 7233554 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
SC 50UU |
Monotaro ID |
7233554 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
3350 |
Shape |
Case unit |
Specifications |
Case unit |
Ball Material |
SUJ2 (high carbon chromium steel) |
Import Country |
Direct Import from Japan |

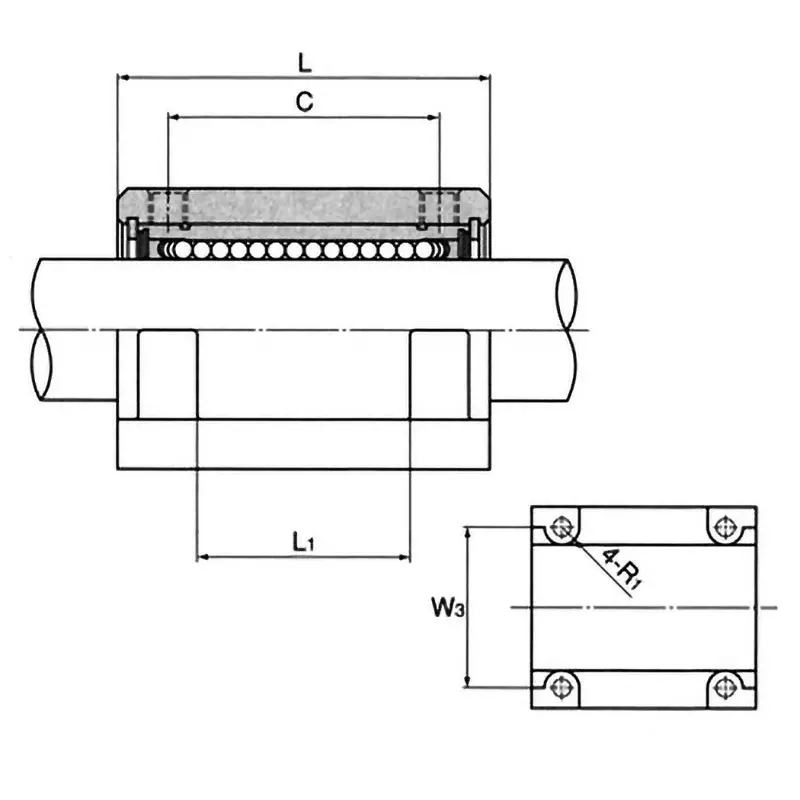

Overall Length L |
110 mm |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |

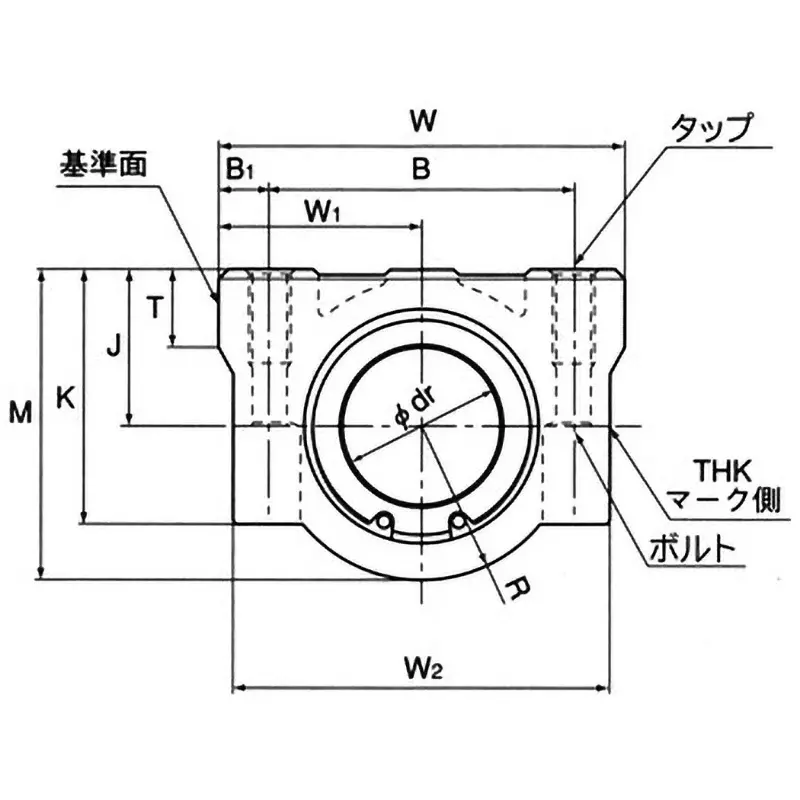

Dimension K |
80 mm |
Dimension B (Φmm) |
100 |
Dimension C |
80 mm |
Dimension B1 (mm) |
11 |
Dimension M |
102 mm |
Dimension T |
25 mm |
Dimension R |
50 mm |
Set Contents |
Linear bushing: LM 50UU |
Dimension J (mm) |
52(±0.02) |
Bolt Size |
M8 |
Dimension W |
122 mm |
