| Type of Product | Linear Bushing |
| Model No | LMF 20LUU |
| Type | Long Type |
| Monotaro ID | 7232346 |
Type of Product |
Linear Bushing |
Model No |
LMF 20LUU |
Type |
Long Type |
Monotaro ID |
7232346 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.012 |
Mass (g) |
260 |
Outer Diameter Tolerance (mm) |
0 to -0.019 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
32 |
Basic load rating Coa (N) |
2750 |
Basic load rating Ca (N) |
1400 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Dimension Dr (Φmm) |
20 |
Number of Ball Raws |
5 |
Import Country |
Direct Import from Japan |
Overall Length L |
80 mm (0 to -0.3) |
Special Features |
Sealed On Both Ends of the Outer Cylinder |
Seal Material |
Rubber |
Dimension H (Φmm) |
8 |
Dimension d1 (Φmm) |
54(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：5.5x9.2x5.4 |
Squareness |
20 μm |

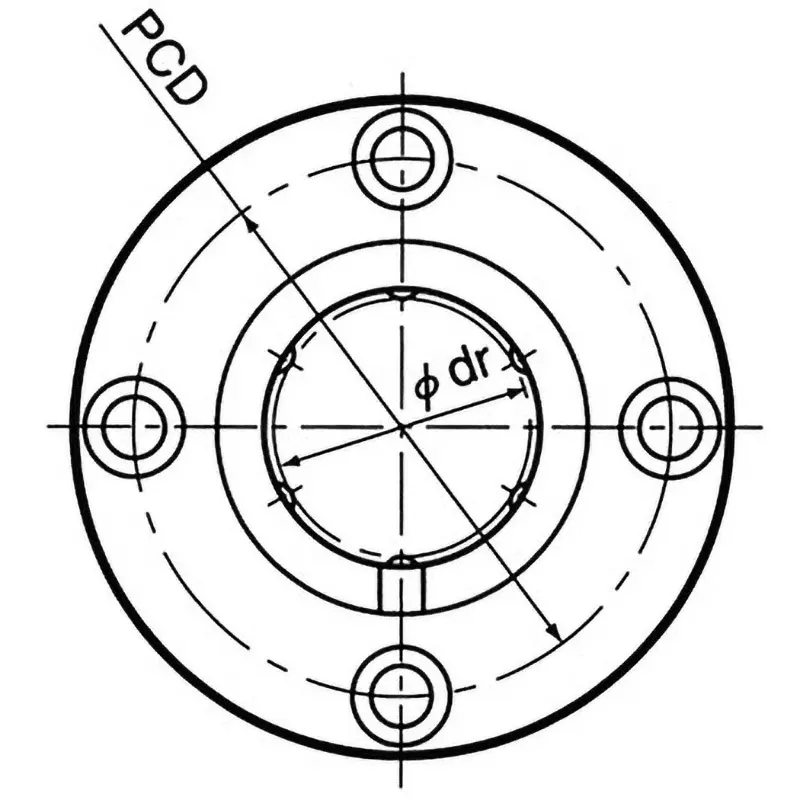

PCD (mm) |
43 |
