| Type of Product | Linear Bushing |
| Model No | LMH 25LUU |
| Type | Long Type |
| Monotaro ID | 7233335 |
Type of Product |
Linear Bushing |
Model No |
LMH 25LUU |
Type |
Long Type |
Monotaro ID |
7233335 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.012 |
Mass (g) |
450 |
Outer Diameter Tolerance (mm) |
0 to -0.019 |
Shape |
Oval flange type |
Specifications |
Flange oval shape |
Outer Diameter D (Φmm) |
40 |
Basic load rating Ca (N) |
1560 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

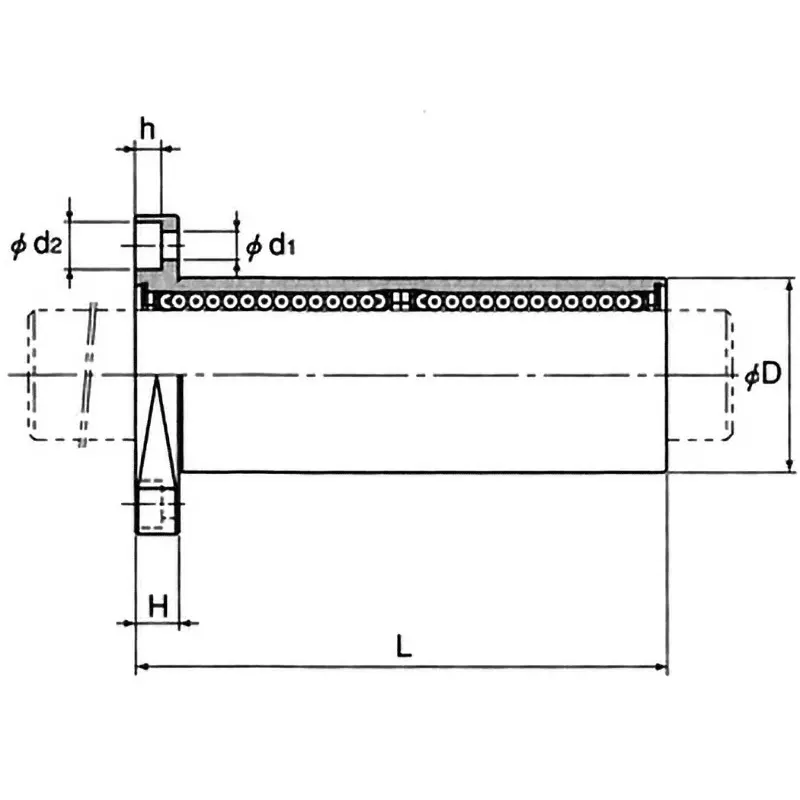

Overall Length L |
112 mm (0 to -0.4) |
Special Features |
Sealed On Both Ends of the Outer Cylinder |
Seal Material |
Rubber |
Dimension H (Φmm) |
8 |
Dimension d1 (Φmm) |
62(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：5.5x9.2x5.4 |

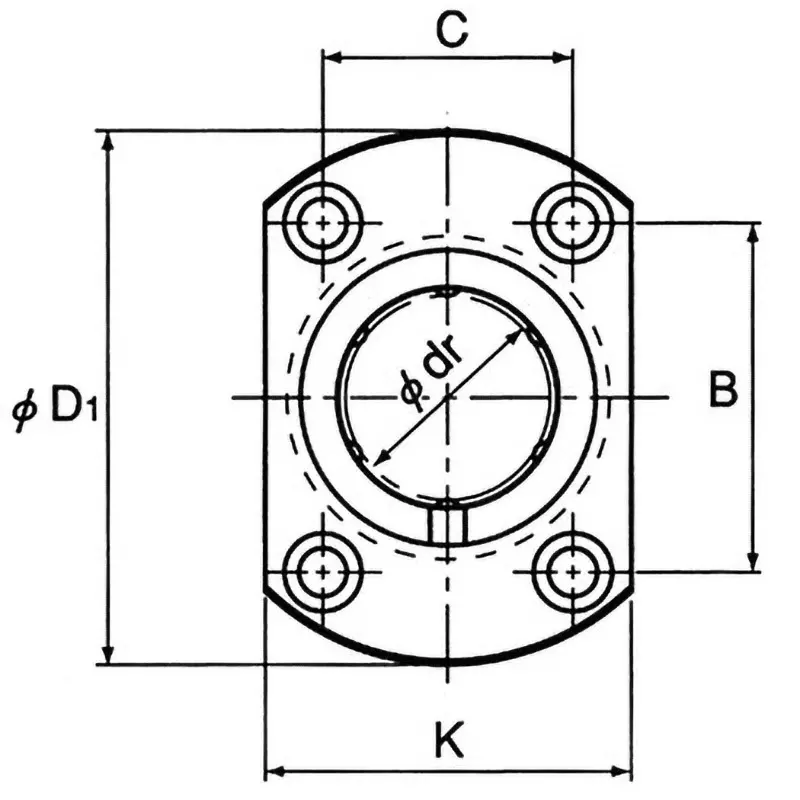

Dimension K |
46 mm |
Dimension B (Φmm) |
40 |
Dimension C |
32 mm |
Squareness |
20 μm |
