| Type of Product | Linear Bushing with Seal |
| Model No | SH 20LUU |
| Type | Long Type |
| Monotaro ID | 39252333 |
Type of Product |
Linear Bushing with Seal |
Model No |
SH 20LUU |
Type |
Long Type |
Monotaro ID |
39252333 |
Country of Origin |
Japan |
Diameter |
S1xl1：M6x12、S2xl：M6x12 |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
425 |
Shape |
Case unit |
Specifications |
Case built-in type |
Basic load rating Coa (N) |
2750 |
Basic load rating Ca (N) |
1400 |

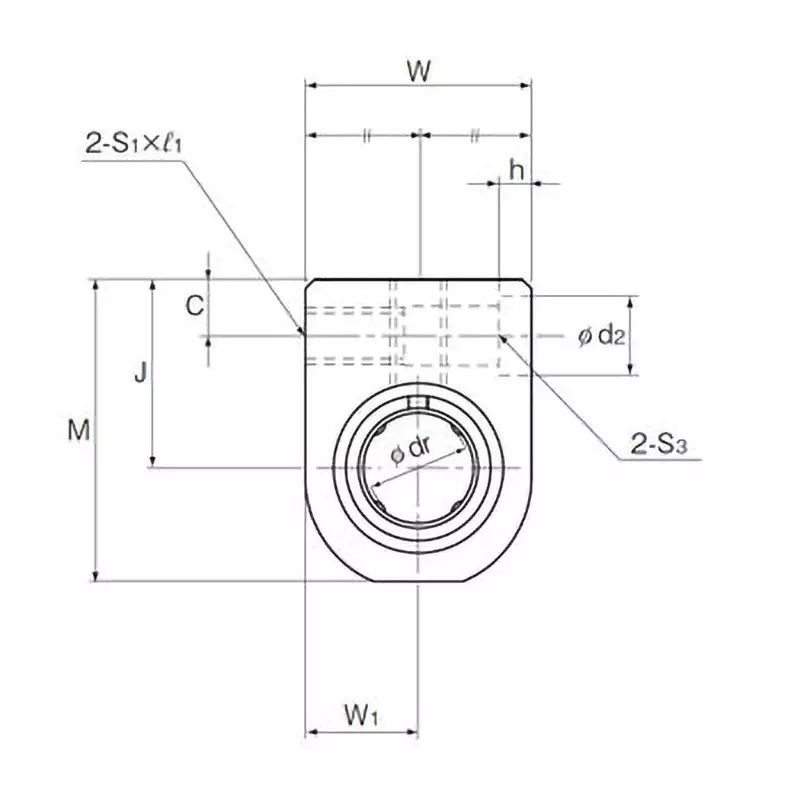

Dimension Dr (Φmm) |
20 |
Import Country |
Direct Import from Japan |
Overall Length L |
86 mm |
Pipe Material |
SUJ2 (high carbon chromium steel) |
Seal Material |
Rubber |
Dimension H (Φmm) |
5.4 |
Dimension B (Φmm) |
58 |
Dimension C |
7 mm |
Dimension B1 (mm) |
72 |
Set Contents |
Linear bushing: LM 20U |
Dimension J (mm) |
28(±0.02) |
Dimension d2 (Φmm) |
9.5 |
Bolt Type |
(Through bolt nominal S3) M5 |
Dimension W1 (mm) |
21(±0.02) |
