Ships within 25 days
View
View
View
View
| Type of Product | Linear Motion Block |
| Model No | HR3065UUBLOCK |
| Type | HR Type |
| Monotaro ID | 75094853 |
Type of Product |
Linear Motion Block |
Model No |
HR3065UUBLOCK |
Type |
HR Type |
Monotaro ID |
75094853 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Single Block |

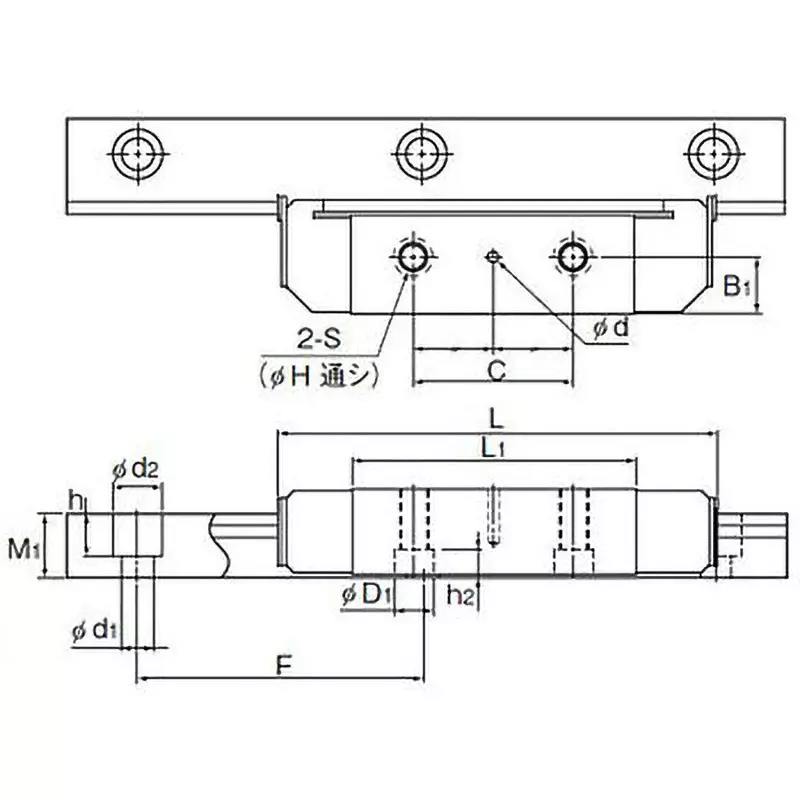

Dimension H (Φmm) |
8.6 |
Dimension d1 (Φmm) |
14 |
Dimension K |
29 mm |
Dimension C |
50 mm |
Dimension L1 |
90 mm |
Basic Static Load Rating (kN) |
44.4 |
Basic Dynamic Load Rating (kN) |
42.6 |
Dimension B1 (mm) |
19 |
Mass (Kg) |
0.7 |
Dimension T |
27.5 mm |
Dimension W |
40.3 mm |
Dimension L (mm) |
145 |
Dimension D (Φmm) |
4 |
RoHS Directive |
Correspondence |
Height (mm) |
30 |
Block Width mm |
40.299999999999997 |
Block Height mm |
29 |
Dimensions w (mm) |
65 |
Dimension H2 |
9 mm |
