| Type of Product | Linear Motion Block |
| Model No | HSR 25LRSS |
| Suitable For | HSR 25 type rail |
| Type | HSR-LR Type |
Type of Product |
Linear Motion Block |
Model No |
HSR 25LRSS |
Suitable For |
HSR 25 type rail |
Type |
HSR-LR Type |
Monotaro ID |
7295391 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
With side seal with end seal |
Import Country |
Direct Import from Japan |

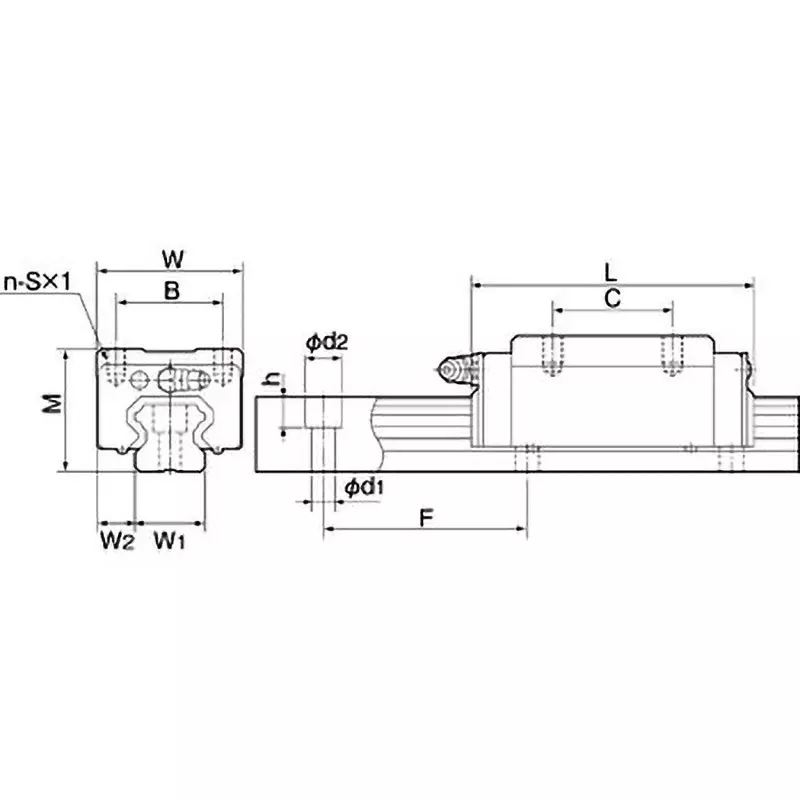

Dimension K |
34.5 mm |
Dimension B (Φmm) |
35 |
Dimension C |
50 mm |
Dimension L1 |
78.6 mm |
Basic Static Load Rating (kN) |
51.6 |
Basic Dynamic Load Rating (kN) |
35.200000000000003 |
Mass (Kg) |
0.67 |
Dimension T |
9 mm |
Dimension n (mm) |
10 |
Dimension L (mm) |
8 |
RoHS Directive |
Correspondence |
Dimension E (Φmm) |
12 |
Grease Nipple |
B-M6F |
Allowable Static Moment (Nm) |
M <sub>A</sub> (1): 0.529k, (2 close contacts): 2.74k <br> M <sub>B</sub> (1 piece): 0.529k, 1.712.74k <br> M <sub>C</sub> (one): 0.459k |
Block Height mm |
34.5 |
Dimension S |
ΦM6 mm |
