| Type of Product | Linear Motion Rail |
| Model No | HSR 15+1000L |
| Suitable For | HSR 15 |
| Type | Fixed Length HSR Type |
Type of Product |
Linear Motion Rail |
Model No |
HSR 15+1000L |
Suitable For |
HSR 15 |
Type |
Fixed Length HSR Type |
Height |
15 mm |
Monotaro ID |
7296922 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Single Rail |

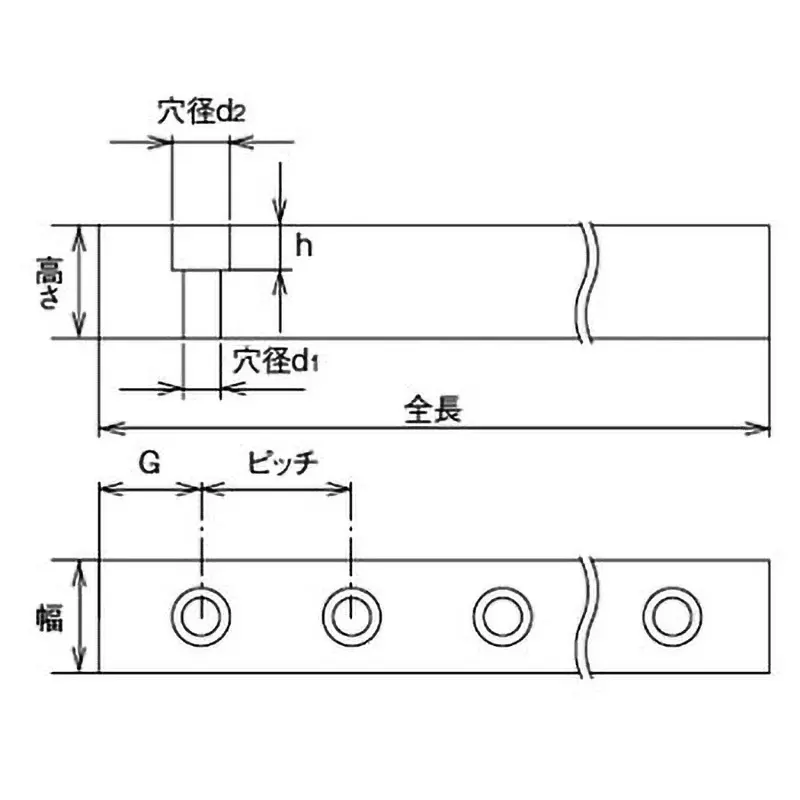

Dimension H (Φmm) |
5.3 |
Mass (Kg) |
1.5 |
Dimensions d1 x d2 x h (mm) |
4.5x7.5x5.3 |
RoHS Directive |
Correspondence |
Cell Spacing (mm) |
60 |
Reel Width |
15 mm (±0.05) |
Rail Length |
1000 mm |
Dimension G |
20 mm |
Hole Diameter d1 (Φmm) |
4.5 |
Hole Diameter d2 (Φmm) |
7.5 |
Dimension W2 (mm) |
16 |
