| Type of Product | Precision Ball Screw |
| Model No | BNK 1002-3RRG2+193LC7Y |
| Type | Standard Lead |
| Monotaro ID | 7256444 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 1002-3RRG2+193LC7Y |
Type |
Standard Lead |
Monotaro ID |
7256444 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

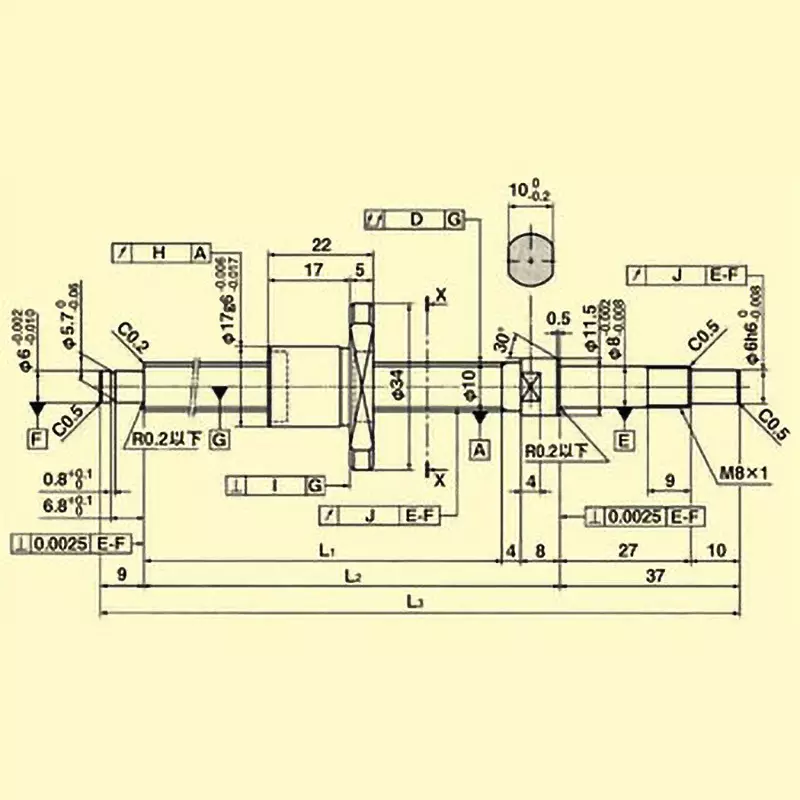

Dimension L2 |
147 mm |

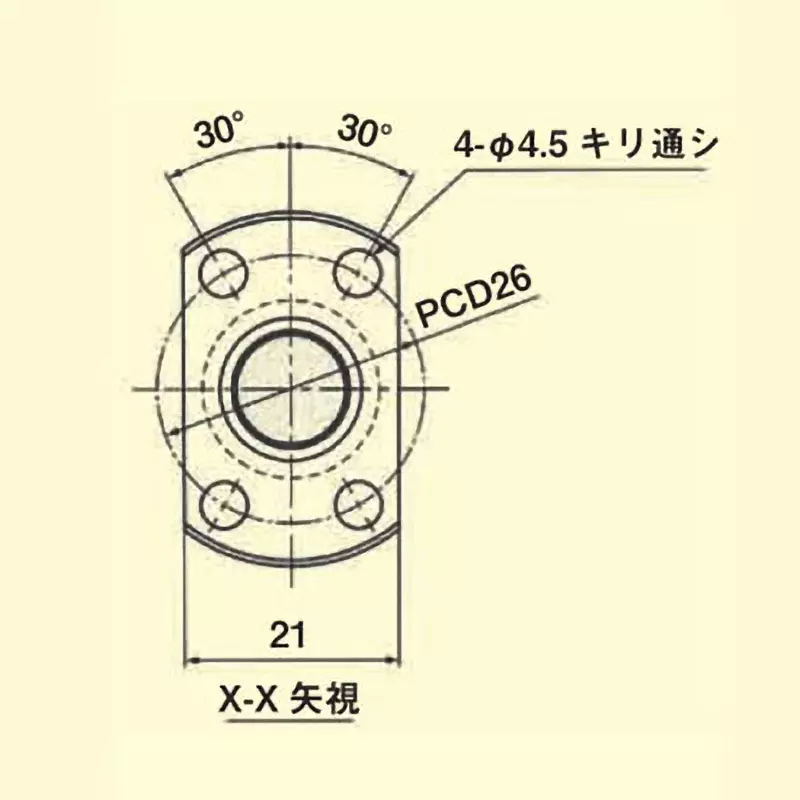

P.C.D (mm) |
26 |
Dimension L3 (mm) |
193 |
Variation |
±0.05/300 mm |
No. of Circuits |
1 roll x 3 rows |
Stroke (mm) |
100 |
Dimension L1 |
135 mm |
Nut Outside Dia |
Φ17 mm (g6：-0.006 to -0.017) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
10.3 |
Squareness (mm) |
1.4E-2 |
Lead |
2 mm |
Basic Static Load Rating (kN) |
2.9 |
Basic Dynamic Load Rating (kN) |
1.5 |
Shaft Outer Diameter |
10 mm |
Root Diameter |
9 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
