| Type of Product | Linear Bush |
| Model No | LM 8MG |
| Type | Stainless Steel Type |
| Monotaro ID | 39249506 |
Type of Product |
Linear Bush |
Model No |
LM 8MG |
Type |
Stainless Steel Type |
Monotaro ID |
39249506 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.009 |
Mass (g) |
16 |
Outer Diameter Tolerance (mm) |
0 to -0.011 |
Shape |
Straight |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
15 |
Basic load rating Coa (N) |
402 |
Basic load rating Ca (N) |
265 |
Ball Material |
SUS (stainless steel) |

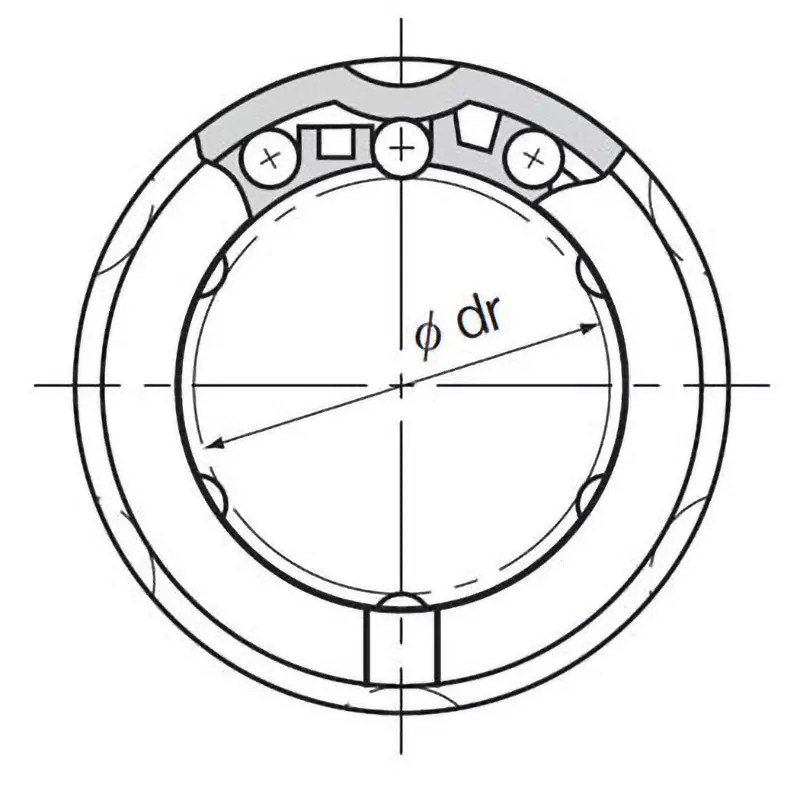

Dimension Dr (Φmm) |
8 |
Import Country |
Direct Import from Japan |

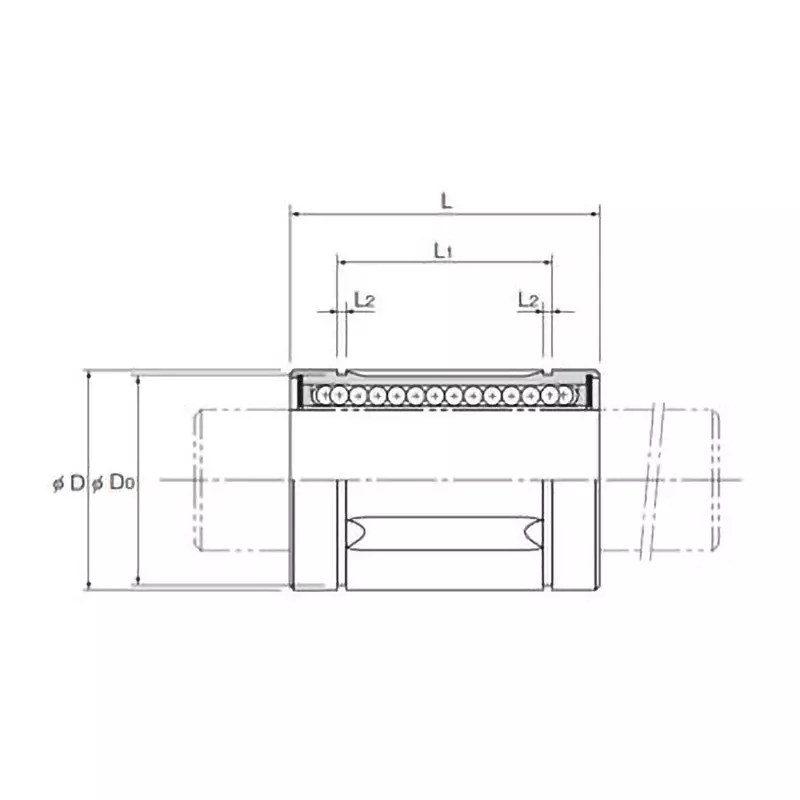

Overall Length L |
24 mm (0 to -0.2) |
Dimension D0 (Φmm) |
14.3 |
Length L2 (mm) |
1.1000000000000001 |
