Ships within 25 days
View
View
View
View
| Type of Product | Linear Bushing |
| Model No | LMIK16LUU |
| Type | Inlay Flange Type |
| Monotaro ID | 89790504 |
Type of Product |
Linear Bushing |
Model No |
LMIK16LUU |
Type |
Inlay Flange Type |
Monotaro ID |
89790504 |
Country of Origin |
Japan |
Tolerance |
-7 μm |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
174 |
Shape |
Square flange type |
Outer Diameter D (Φmm) |
28 |
Basic load rating Coa (N) |
2350 |
Basic load rating Ca (N) |
1230 |
Maximum Eccentricity (μm) |
12 |
Import Country |
Direct Import from Japan |
Dimension H (Φmm) |
6 |
Dimension d1 (Φmm) |
48 |

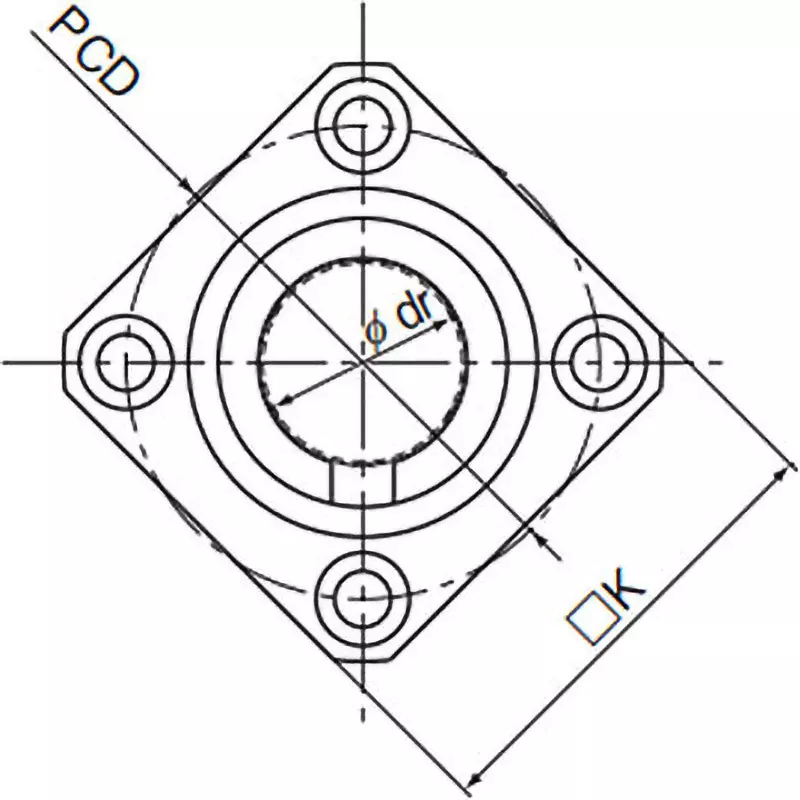

Dimension K |
37 mm |
Dimension PCD (mm) |
38 |
Dimension L (mm) |
70 |
Squareness |
12 μm |
Inscribed Circle Diameter |
Φ16 mm |
Dimension d2 (Φmm) |
28 |
Ball |
5 |
Dimensions d1 x d2 x h (mm) |
4.5x7.5x4.4 |
Dimension I (mm) |
6 |
