| Type of Product | Linear Motion Rail |
| Model No | SSR 20X+1300L |
| Material | Stainless steel |
| Suitable For | LM block SSR 20X |
Type of Product |
Linear Motion Rail |
Model No |
SSR 20X+1300L |
Material |
Stainless steel |
Suitable For |
LM block SSR 20X |
Type |
Fixed SSR Type |
Height |
15.5 mm |
Monotaro ID |
7296116 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Single Rail |

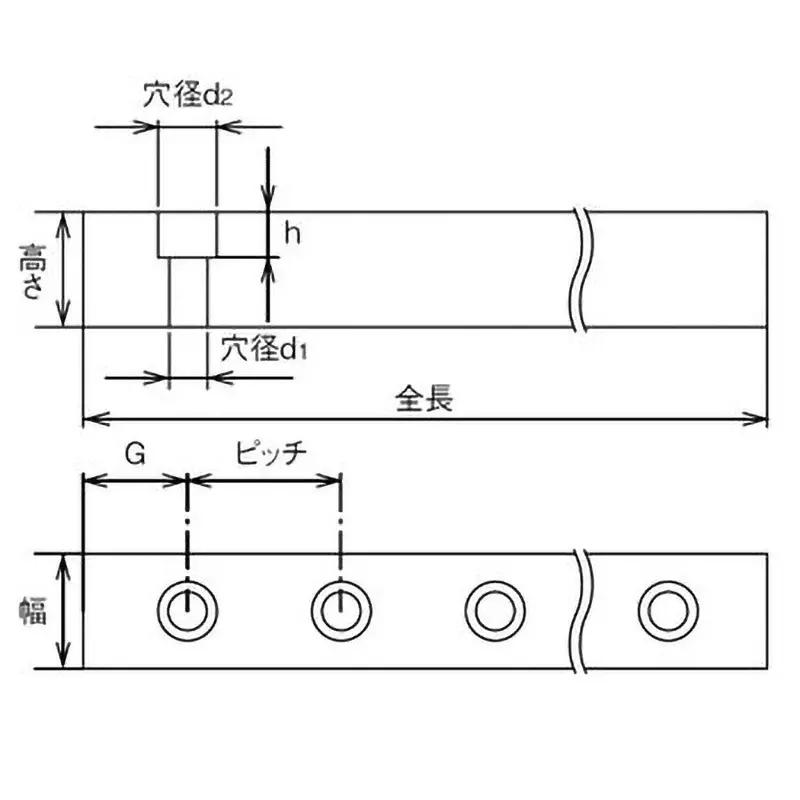

Dimension H (Φmm) |
8.5 |
Mass (Kg) |
2.73 |
Dimensions d1 x d2 x h (mm) |
6x9.5x8.5 |
RoHS Directive |
Correspondence |
Cell Spacing (mm) |
60 |
Reel Width |
20 mm (±0.05) |
Rail Length |
1300 mm |
Dimension G |
20 mm |
Hole Diameter d1 (Φmm) |
6 |
Hole Diameter d2 (Φmm) |
9.5 |
Dimension W2 (mm) |
11 |
