| Type of Product | Linear Bush |
| Model No | LMH 6UU |
| Monotaro ID | 7233082 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
LMH 6UU |
Monotaro ID |
7233082 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
18 |
Outer Diameter Tolerance (mm) |
0 to -0.011 |
Shape |
Oval flange type |
Specifications |
Flange oval shape |
Outer Diameter D (Φmm) |
12 |
Basic load rating Coa (N) |
265 |
Basic load rating Ca (N) |
206 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
4 |
Import Country |
Direct Import from Japan |

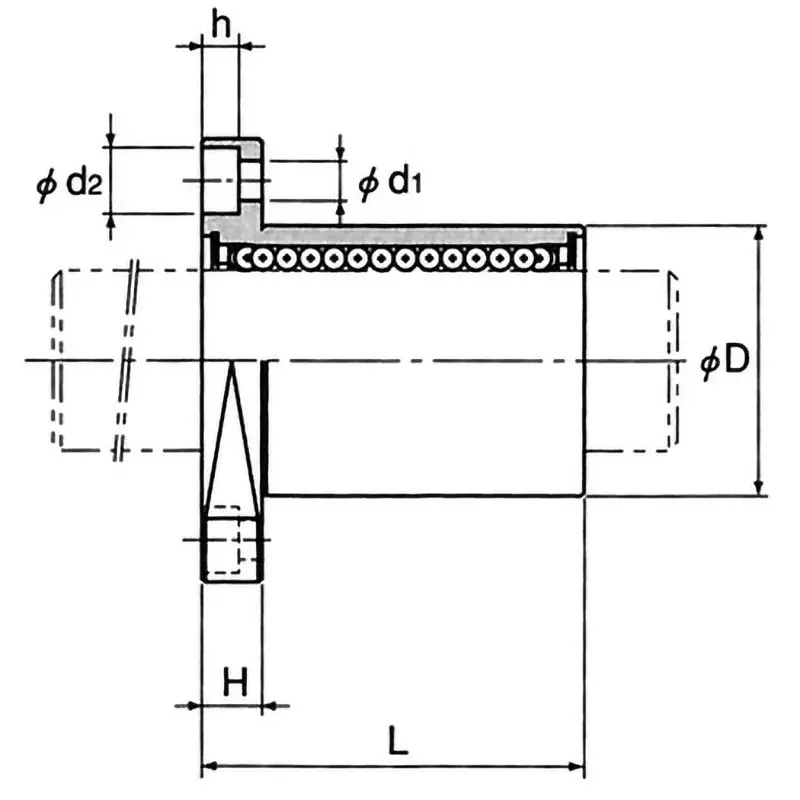

Overall Length L |
19 mm (0 to -0.2) |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |
Dimension H (Φmm) |
5 |
Dimension d1 (Φmm) |
28(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：3.4x6.5x3.3 |
Squareness (microns) |
12 μm |

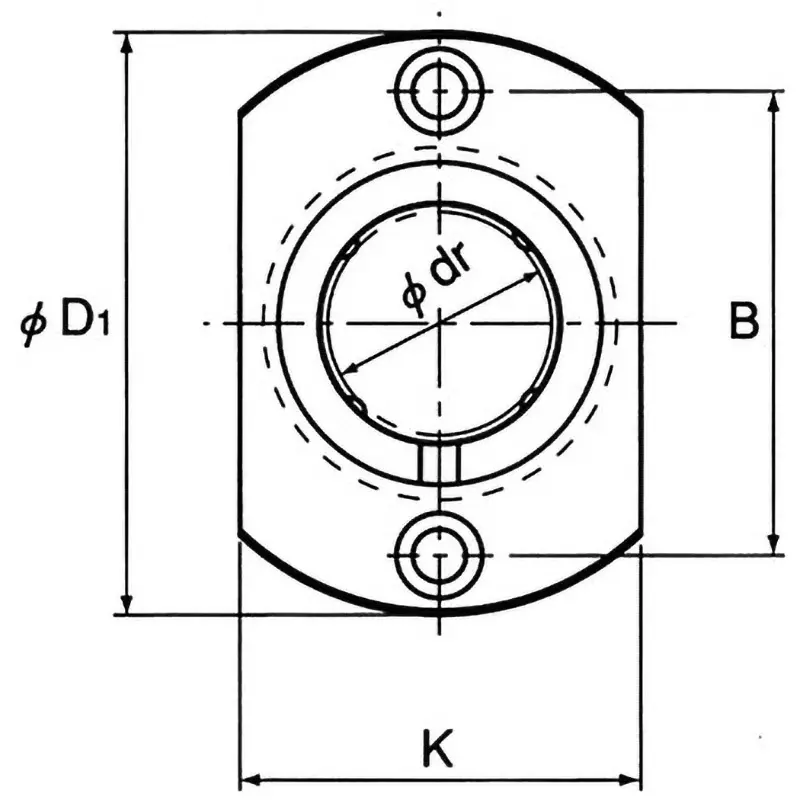

Dimension K |
18 mm |
Dimension B (Φmm) |
20 |
