| Type of Product | Precision Ball Screw |
| Model No | BNK 1408-2.5RRG2+871LC7Y |
| Type | Standard Lead |
| Monotaro ID | 7257625 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 1408-2.5RRG2+871LC7Y |
Type |
Standard Lead |
Monotaro ID |
7257625 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

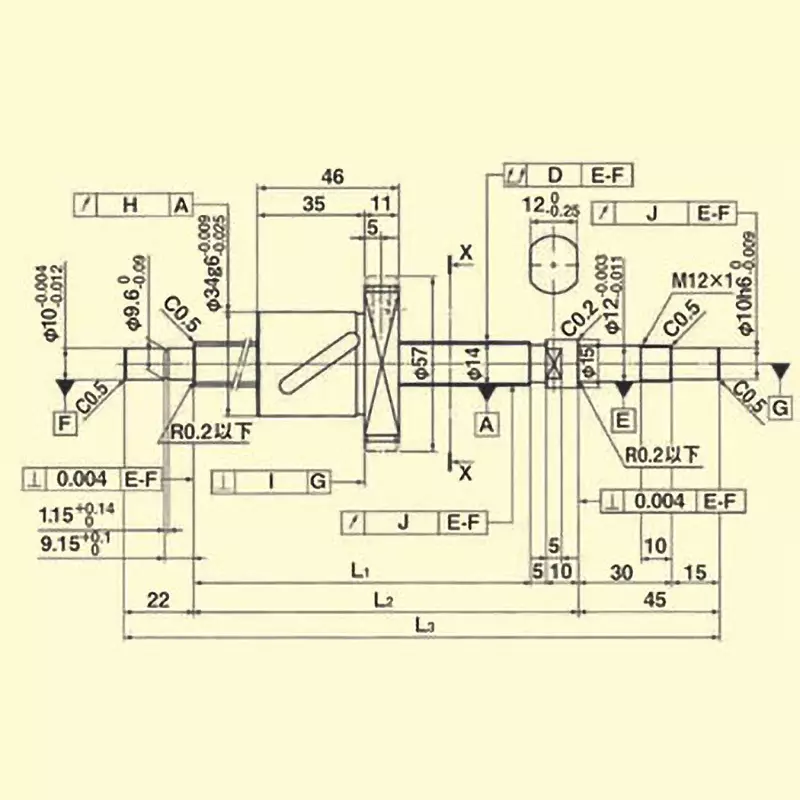

Dimension L2 |
804 mm |

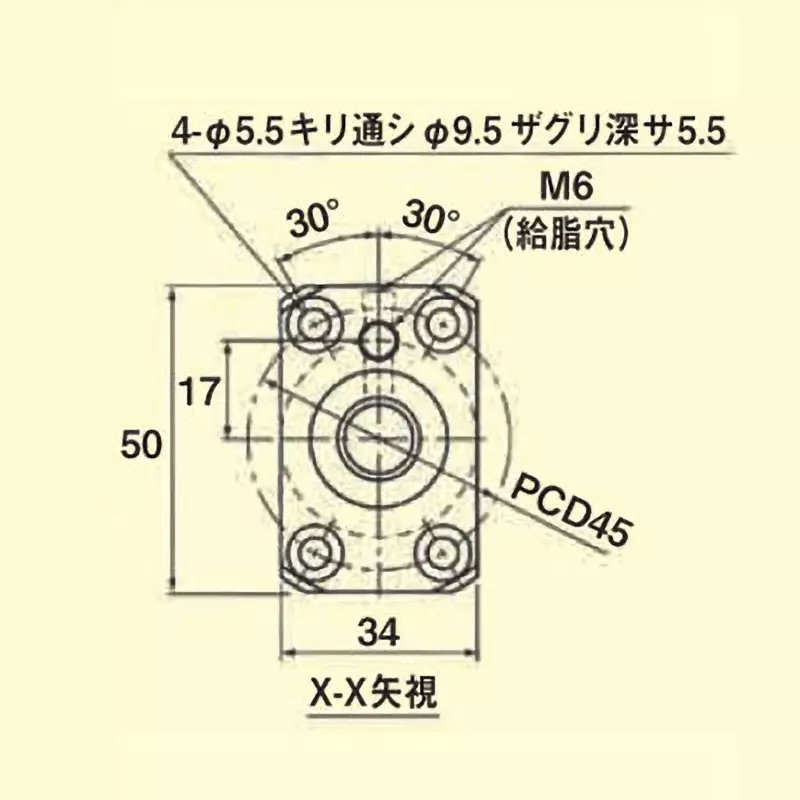

P.C.D (mm) |
45 |
Dimension L3 (mm) |
871 |
Variation |
±0.05/300 mm |
Stroke (mm) |
700 |
Dimension L1 |
789 mm |
Nut Outside Dia |
Φ34 mm (g6：-0.009 to -0.025) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
14.75 |
Squareness (mm) |
1.7999999999999999E-2 |
Lead |
8 mm |
Basic Static Load Rating (kN) |
11.5 |
Basic Dynamic Load Rating (kN) |
6.9 |
Shaft Outer Diameter |
14 mm |
Root Diameter |
11.2 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
Bore Diameter (mm) |
9.5, depth: 5.5 |
