| Type of Product | Linear Bush |
| Model No | LMF 10MLUU |
| Type | Long Type |
| Monotaro ID | 39250531 |
Type of Product |
Linear Bush |
Model No |
LMF 10MLUU |
Type |
Long Type |
Monotaro ID |
39250531 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |

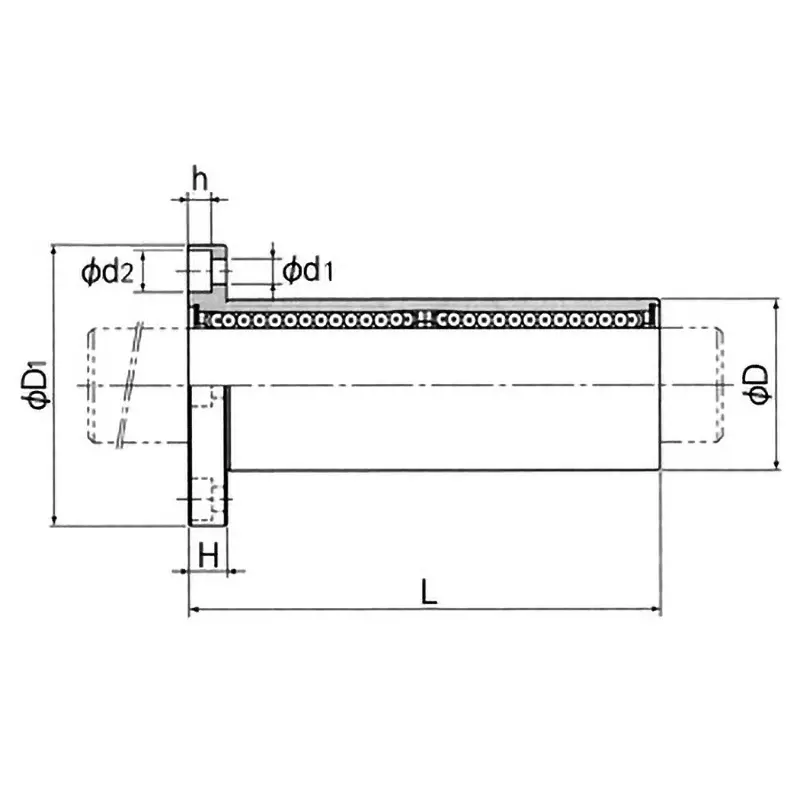

Mounting Hole Diameter (Φmm) |
d1xd2xh：4.5x8x4.4 |
Tolerance (mm) |
0 to -0.010 |
Mass (g) |
105 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Round flange type |
Specifications |
Flange round shape, sealed on both ends of the outer cylinder |
Outer Diameter D (Φmm) |
19 |
Basic load rating Ca (N) |
588 |
Ball Material |
SUS (stainless steel) |
Import Country |
Direct Import from Japan |
Overall Length L |
55 mm (0 to -0.3) |
Seal Material |
Rubber |
Dimension H (Φmm) |
6 |
Dimension d1 (Φmm) |
39(0 to -0.2) |
Squareness |
15 μm |

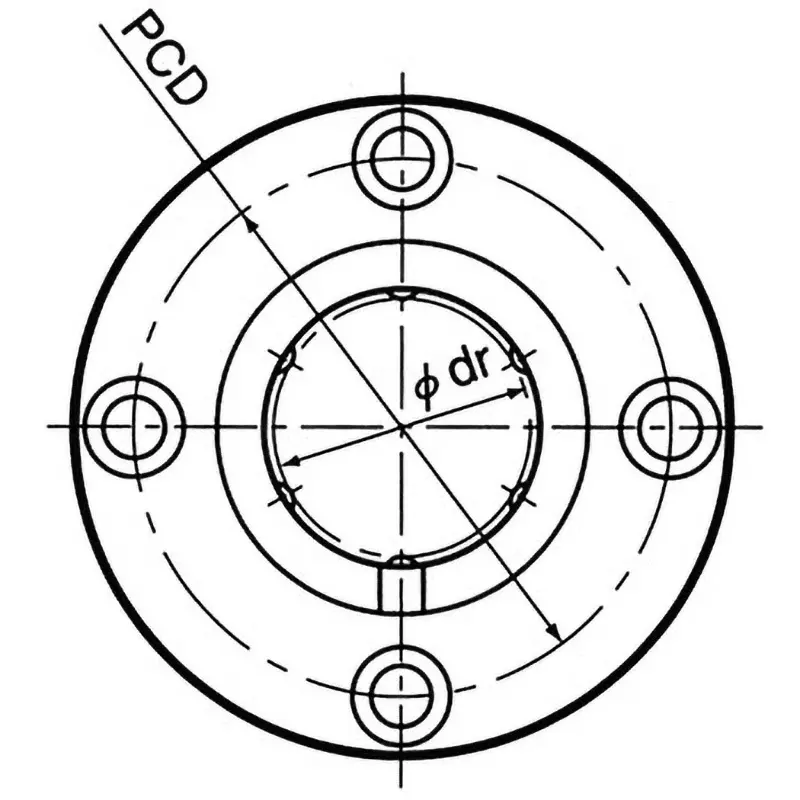

PCD (mm) |
29 |
