| Type of Product | Linear Bush |
| Model No | LMF 30M |
| Type | Stainless Steel Type |
| Monotaro ID | 39249691 |
Type of Product |
Linear Bush |
Model No |
LMF 30M |
Type |
Stainless Steel Type |
Monotaro ID |
39249691 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |

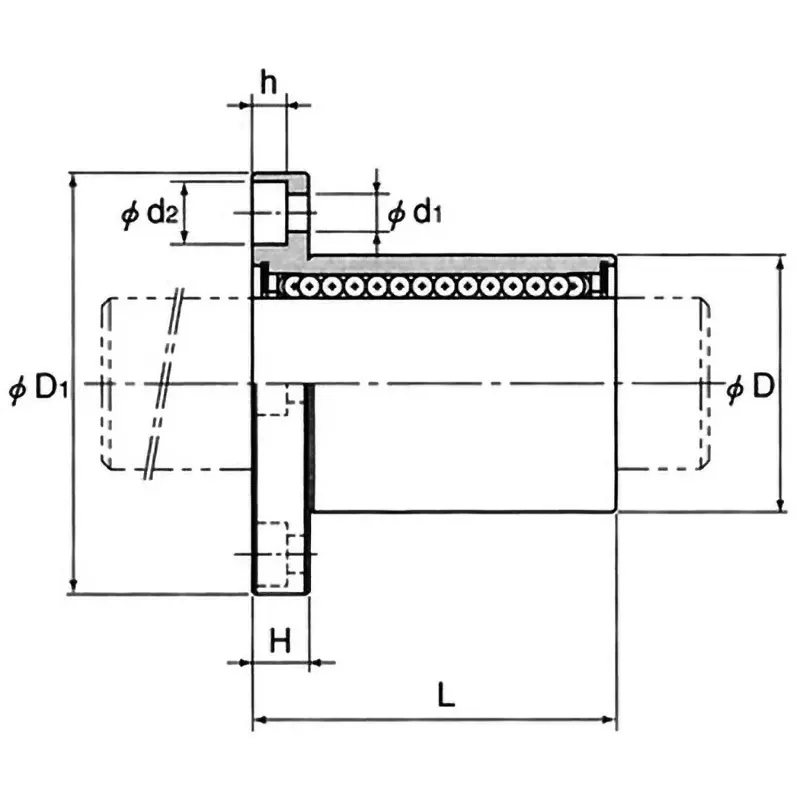

Mounting Hole Diameter (Φmm) |
d1xd2xh：6.6x11x6.5 |
Tolerance (mm) |
0 to -0.010 |
Mass (g) |
460 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
45 |
Basic load rating Coa (N) |
2750 |
Basic load rating Ca (N) |
1570 |
Ball Material |
SUS (stainless steel) |
Dimension Dr (Φmm) |
30 |
Import Country |
Direct Import from Japan |
Overall Length L |
64 mm (0 to -0.3) |
Dimension H (Φmm) |
10 |
Dimension d1 (Φmm) |
74(0 to -0.2) |
Squareness |
15 μm |

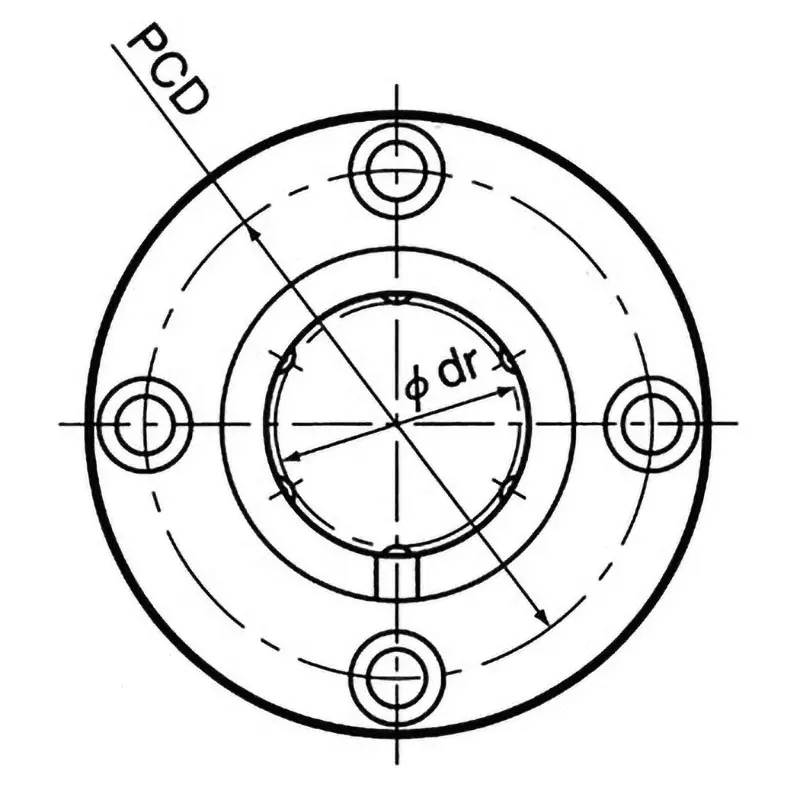

PCD (mm) |
60 |
