| Type of Product | Linear Bushing |
| Model No | LMIH8LUU |
| Type | Long Flanged Type |
| Monotaro ID | 89790547 |
Type of Product |
Linear Bushing |
Model No |
LMIH8LUU |
Type |
Long Flanged Type |
Monotaro ID |
89790547 |
Country of Origin |
Japan |
Tolerance |
-5 μm |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
41 |
Shape |
Oval flange type |
Outer Diameter D (Φmm) |
15 |
Basic load rating Coa (N) |
784 |
Basic load rating Ca (N) |
431 |
Maximum Eccentricity (μm) |
12 |
Import Country |
Direct Import from Japan |

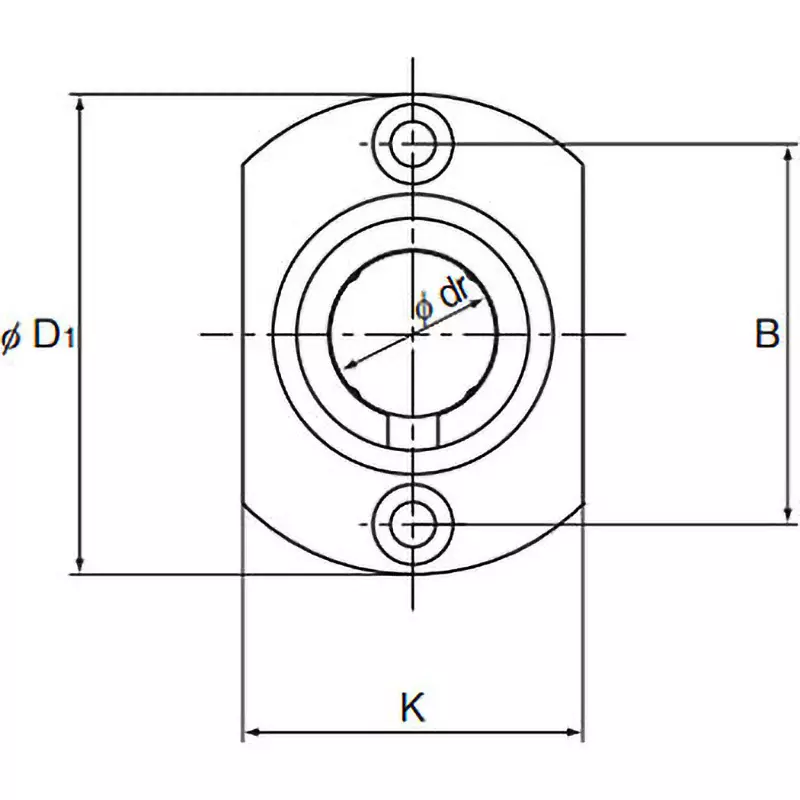

Dimension H (Φmm) |
5 |
Dimension d1 (Φmm) |
32 |
Dimension K |
21 mm |
Dimension B (Φmm) |
24 |
Dimension L (mm) |
45 |
Squareness |
12 μm |
Inscribed Circle Diameter |
Φ8 mm |
Dimension d2 (Φmm) |
15 |
Ball |
4 |
Dimensions d1 x d2 x h (mm) |
3.4x6x3.3 |
Dimension I (mm) |
5 |
