| Type of Product | Linear Bush |
| Model No | SC 25UU |
| Monotaro ID | 7233511 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
SC 25UU |
Monotaro ID |
7233511 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
555 |
Shape |
Case unit |
Specifications |
Case unit |
Ball Material |
SUJ2 (high carbon chromium steel) |
Import Country |
Direct Import from Japan |

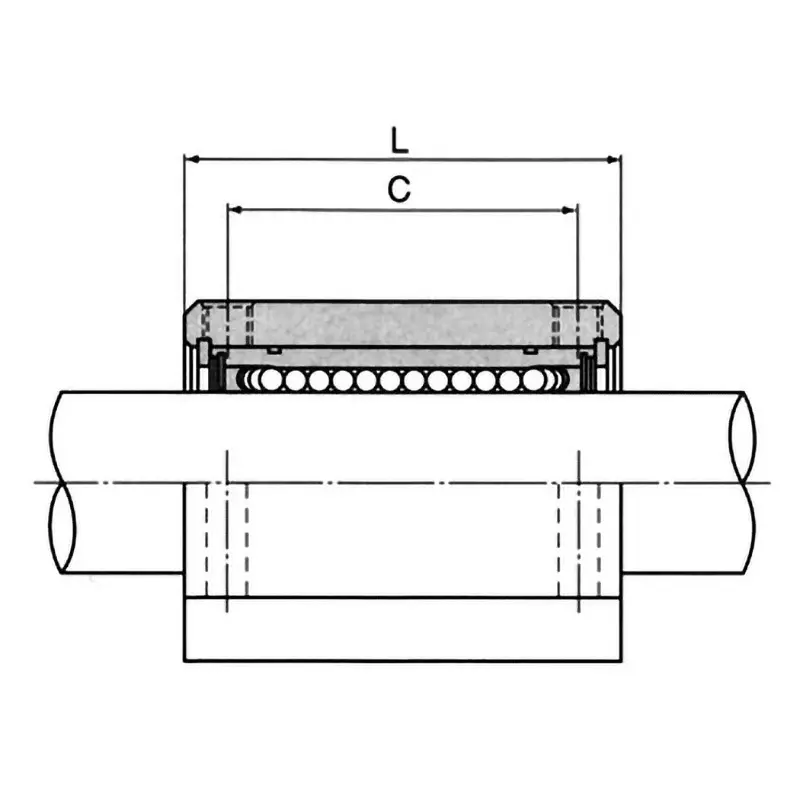

Overall Length L |
67 mm |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |

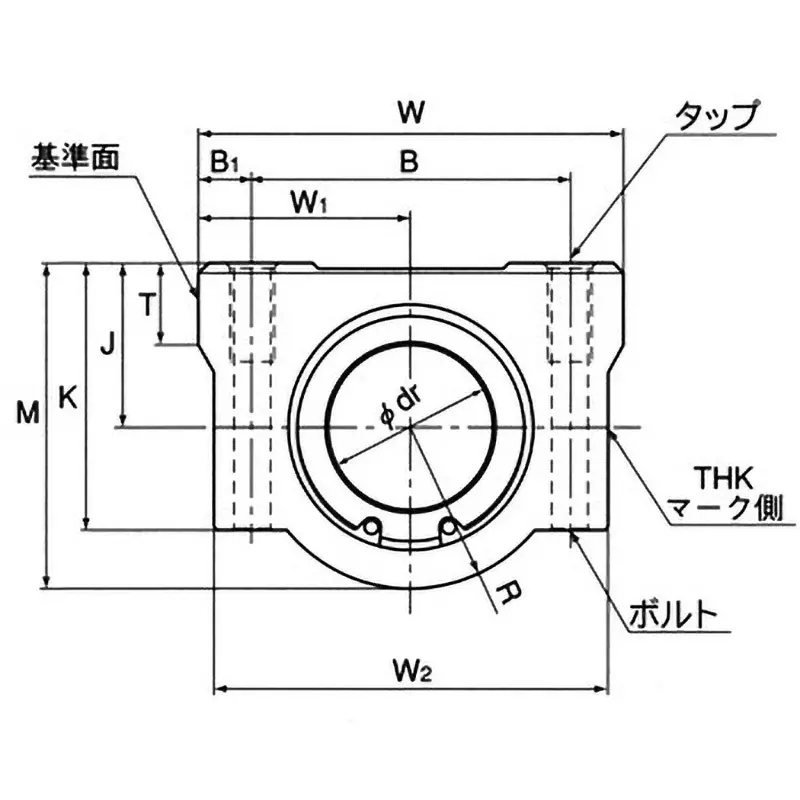

Dimension K |
41 mm |
Dimension B (Φmm) |
54 |
Dimension C |
50 mm |
Dimension B1 (mm) |
11 |
Dimension M |
51.5 mm |
Dimension T |
12 mm |
Dimension R |
25.5 mm |
Set Contents |
Linear bushing: LM 25UU |
Dimension J (mm) |
26(±0.02) |
Bolt Size |
M6 |
Dimension W |
76 mm |
