| Type of Product | Precision Ball Screw |
| Model No | BNK 0601-3G0+130LC3Y |
| Type | Standard Lead |
| Monotaro ID | 7255997 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 0601-3G0+130LC3Y |
Type |
Standard Lead |
Monotaro ID |
7255997 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

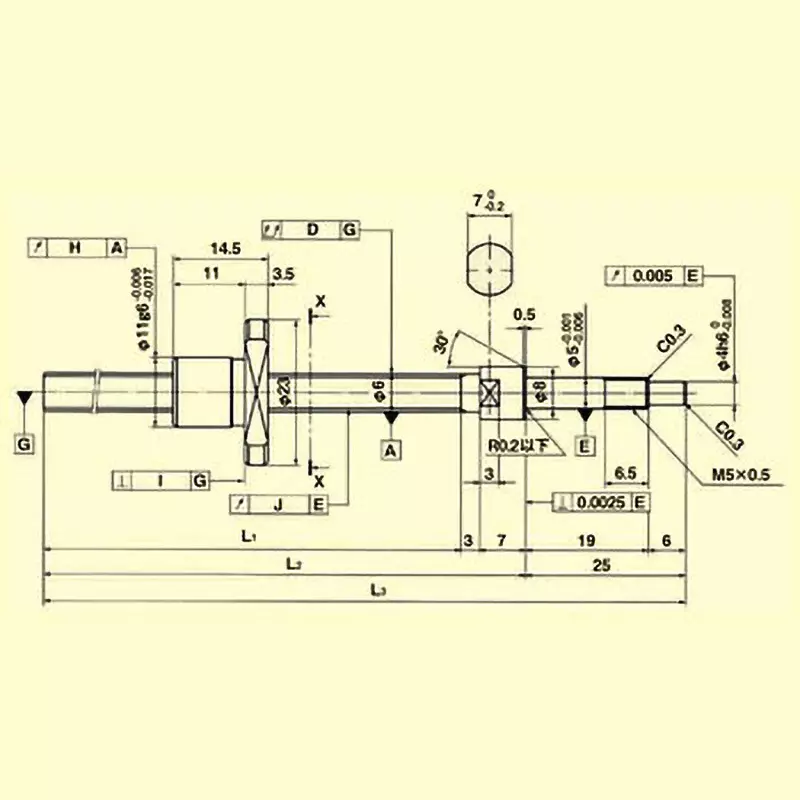

Dimension L2 |
105 mm |

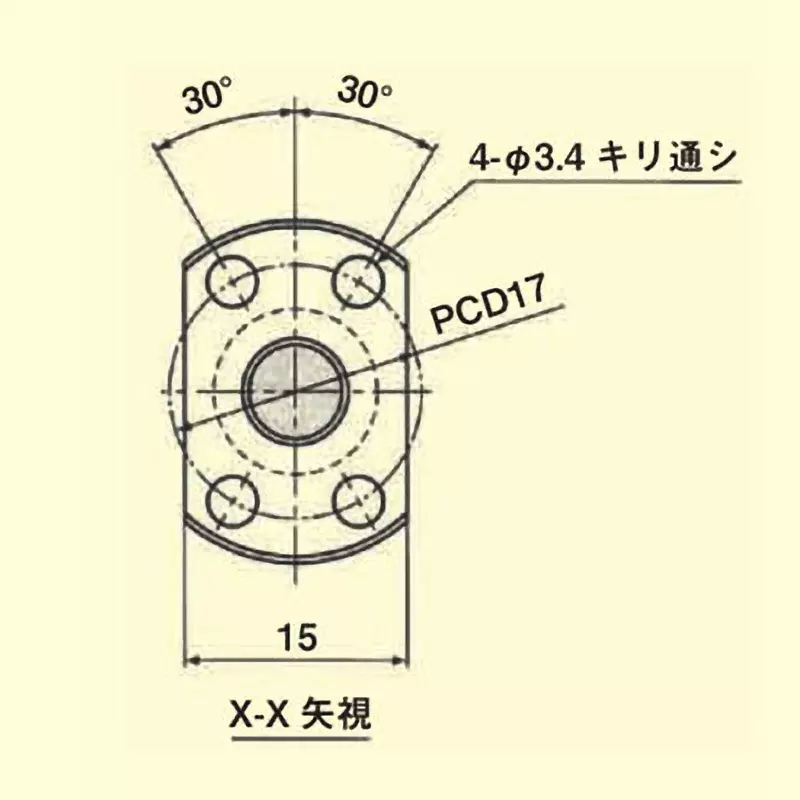

P.C.D (mm) |
17 |
Dimension L3 (mm) |
130 |
Variation |
0.008 mm |
No. of Circuits |
1 roll x 3 rows |
Stroke (mm) |
70 |
Dimension L1 |
95 mm |
Nut Outside Dia |
Φ11 mm (g6：-0.006 to -0.017) |
Type of Terminal Fitting |
Fixed-free |
BCD (mm) |
6.2 |
Squareness (mm) |
8.0000000000000002E-3 |
Lead |
1 mm |
Basic Static Load Rating (kN) |
0.94 |
Basic Dynamic Load Rating (kN) |
0.54 |
Shaft Outer Diameter |
6 mm |
Root Diameter |
5.3 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
Torque (Nm) |
0 to 1.3x10<sup>-2</sup> |
