Ships within 25 days
View
View
View
View
| Type of Product | Precision Ball Screw |
| Model No | BNK 1004-2.5RRG2+180LC7Y |
| Type | Standard Lead |
| Monotaro ID | 7256532 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 1004-2.5RRG2+180LC7Y |
Type |
Standard Lead |
Monotaro ID |
7256532 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

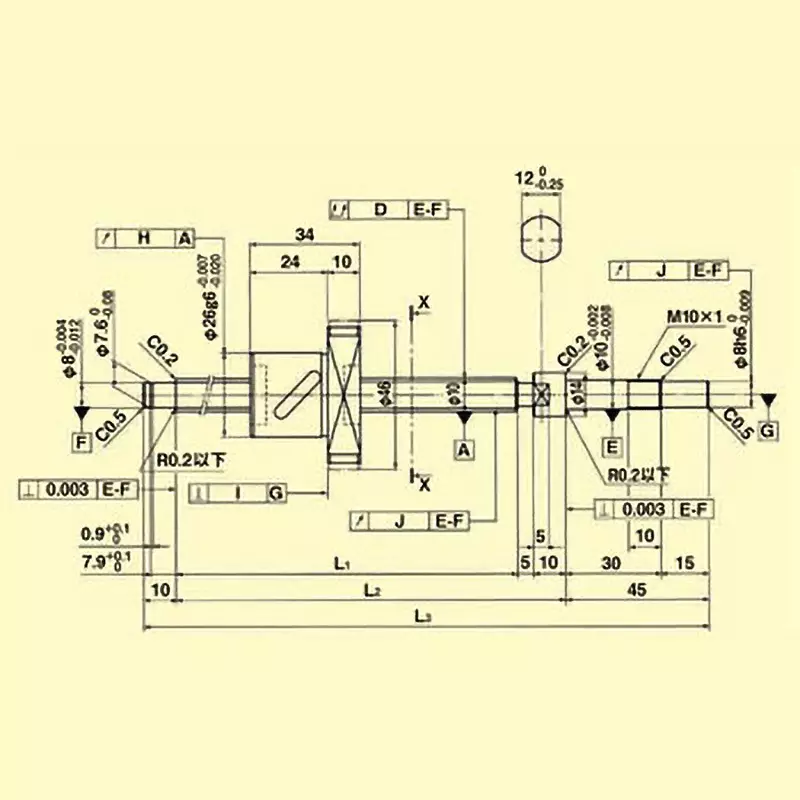

Dimension L2 |
125 mm |

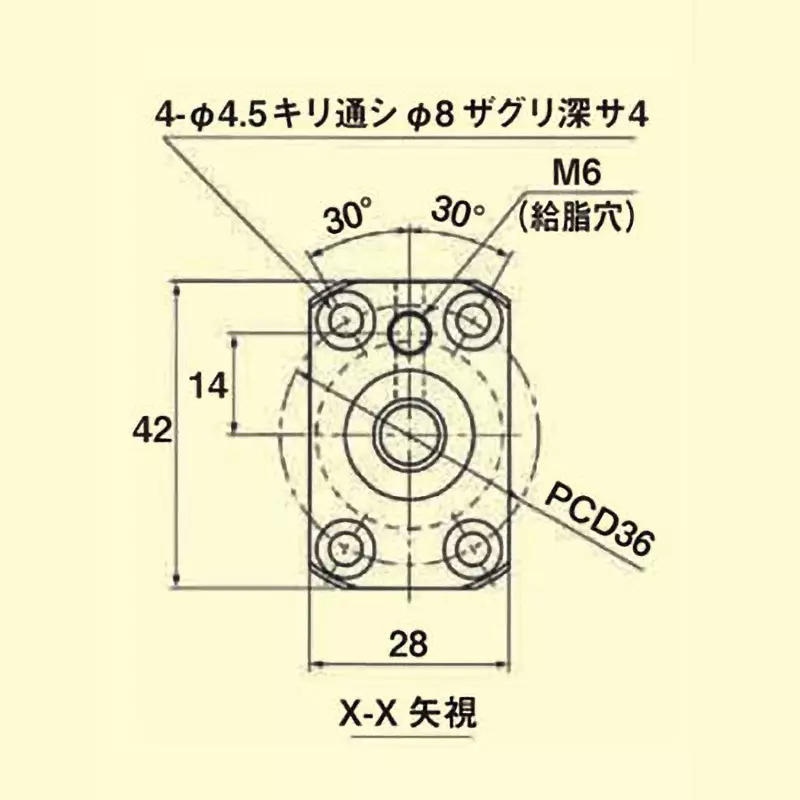

P.C.D (mm) |
36 |
Dimension L3 (mm) |
180 |
Variation |
±0.05/300 mm |
Stroke (mm) |
50 |
Dimension L1 |
110 mm |
Nut Outside Dia |
Φ26 mm (g6：-0.007 to -0.020) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
10.5 |
Squareness (mm) |
1.4E-2 |
Lead |
4 mm |
Basic Static Load Rating (kN) |
5.4 |
Basic Dynamic Load Rating (kN) |
3.4 |
Shaft Outer Diameter |
10 mm |
Root Diameter |
7.8 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
Bore Diameter (mm) |
8, depth: 4 |
