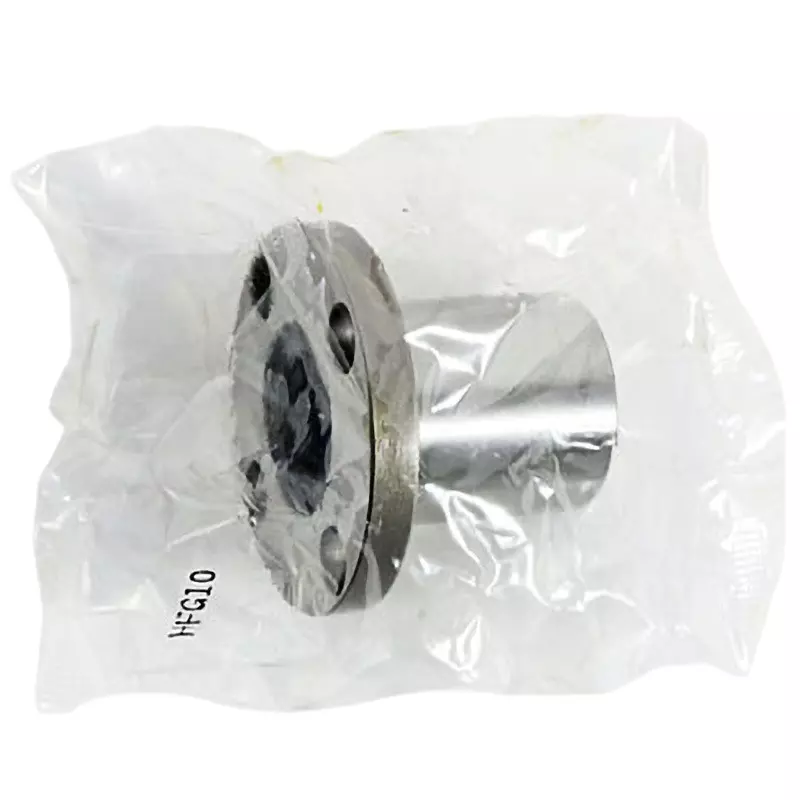

| Type of Product | Linear Bushing |
| Model No | LMF 16UU |
| Monotaro ID | 7232066 |
| Country of Origin | Japan |
Type of Product |
Linear Bushing |
Model No |
LMF 16UU |
Monotaro ID |
7232066 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |

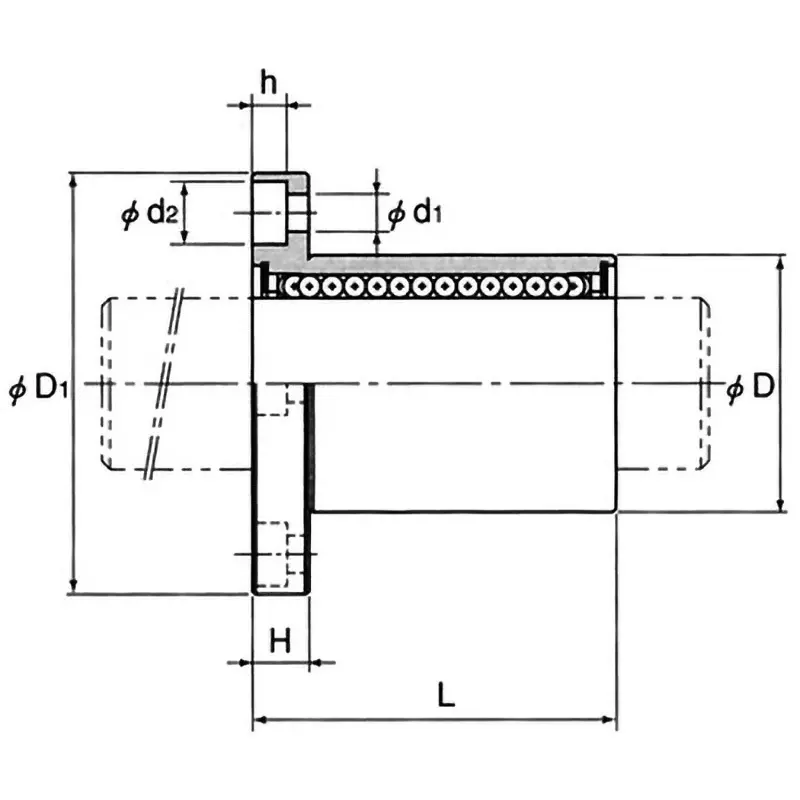

Mounting Hole Diameter (Φmm) |
d1xd2xh：4.5x8x4.4 |
Tolerance (mm) |
0 to -0.009 |
Mass (g) |
134 |
Outer Diameter Tolerance (mm) |
0 to -0.013 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
28 |
Basic load rating Ca (N) |
775 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
5 |
Import Country |
Direct Import from Japan |
Overall Length L |
37 mm (0 to -0.2) |
Special Features |
Sealed On Both Ends of the Outer Cylinder |
Seal Material |
Rubber |
Trusco Part No. |
293-5040 |
Dimension H (Φmm) |
6 |
Dimension d1 (Φmm) |
48(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：4.5x8x4.4 |
Squareness |
12 μm |

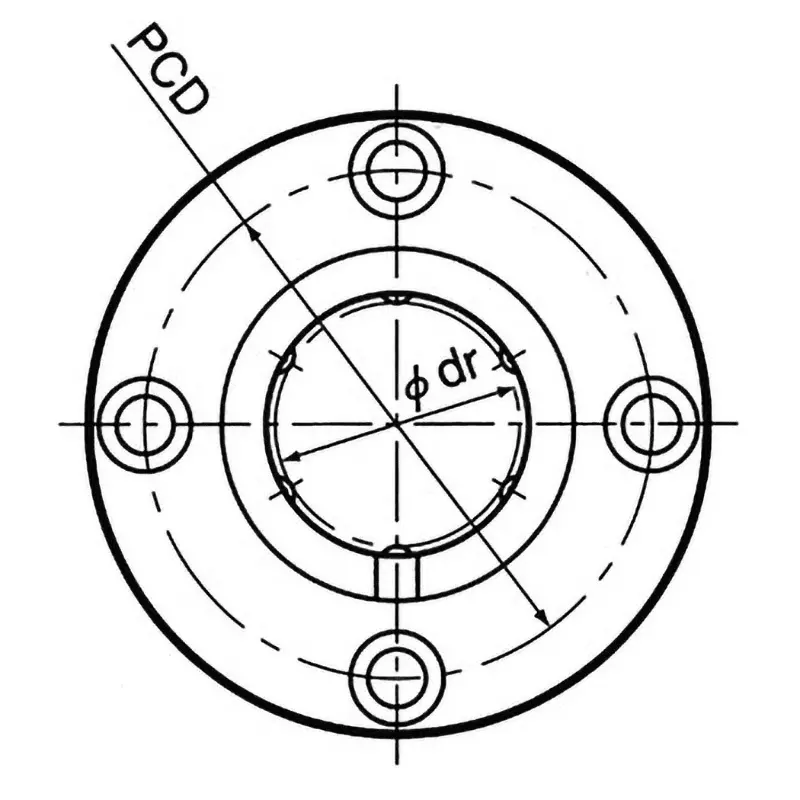

PCD (mm) |
38 |
