| Type of Product | Stainless Linear Bush |
| Model No | LMF 20ML |
| Type | Long Type |
| Monotaro ID | 39250872 |
Type of Product |
Stainless Linear Bush |
Model No |
LMF 20ML |
Type |
Long Type |
Monotaro ID |
39250872 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mounting Hole Diameter (Φmm) |
d1xd2xh：5.5x9.2x5.4 |
Tolerance (mm) |
0 to -0.012 |
Mass (g) |
260 |
Outer Diameter Tolerance (mm) |
0 to -0.019 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
32 |
Basic load rating Coa (N) |
2750 |
Basic load rating Ca (N) |
1400 |
Ball Material |
SUS (stainless steel) |
Import Country |
Direct Import from Japan |

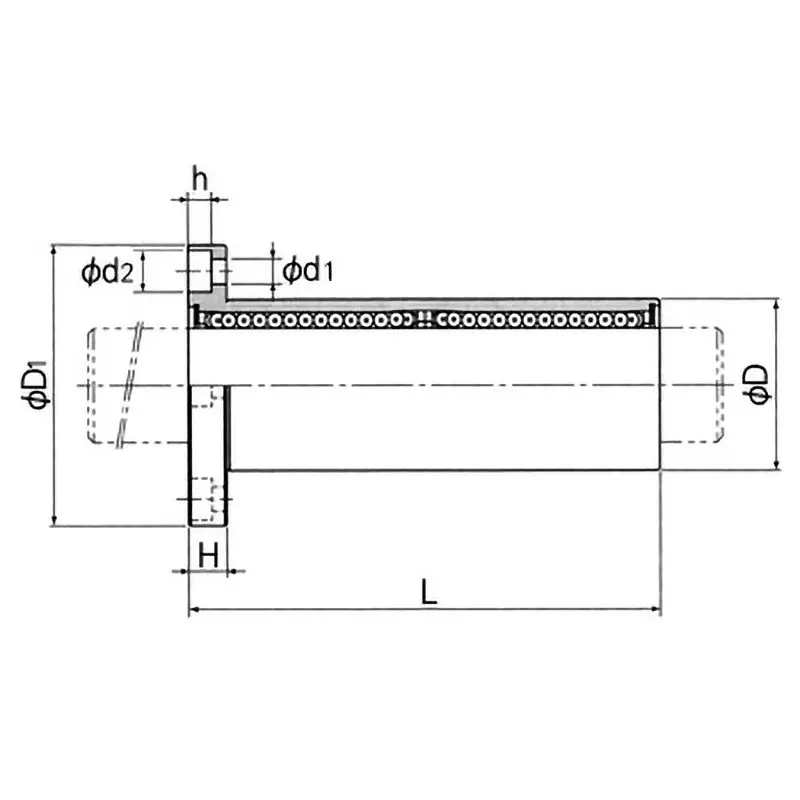

Overall Length L |
80 mm (0 to -0.3) |
Dimension H (Φmm) |
8 |
Dimension d1 (Φmm) |
54(0 to -0.2) |
Squareness |
20 μm |

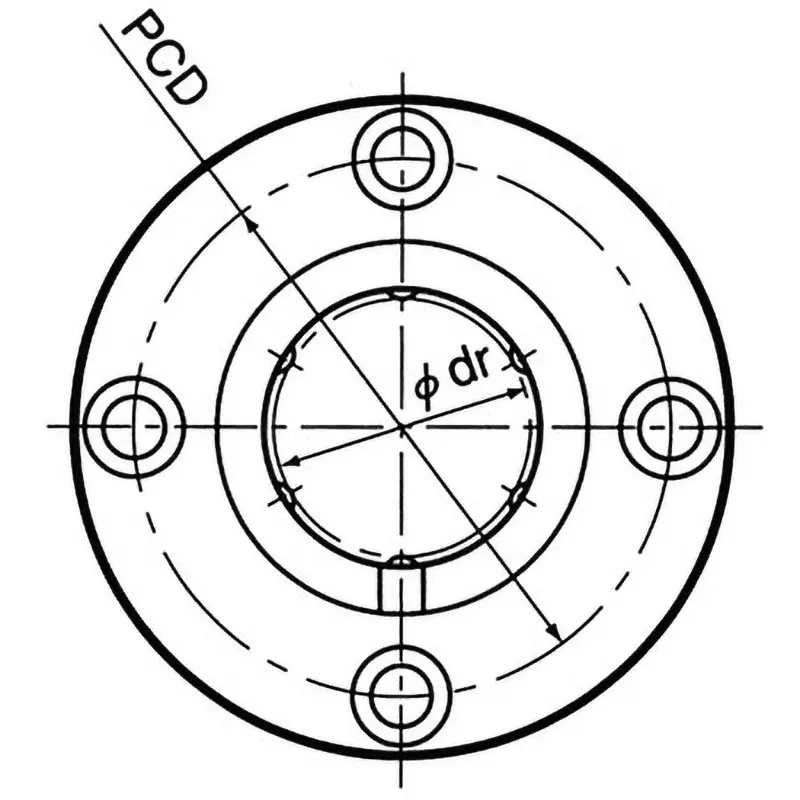

PCD (mm) |
43 |
