| Type of Product | Linear Ball Slide |
| Model No | LSP2050 |
| Type | LS/LSP/LSC Type |
| Monotaro ID | 75119204 |
Type of Product |
Linear Ball Slide |
Model No |
LSP2050 |
Type |
LS/LSP/LSC Type |
Monotaro ID |
75119204 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
114 |
Basic load rating Coa (N) |
284 |
Basic load rating Ca (N) |
157 |
Import Country |
Direct Import from Japan |

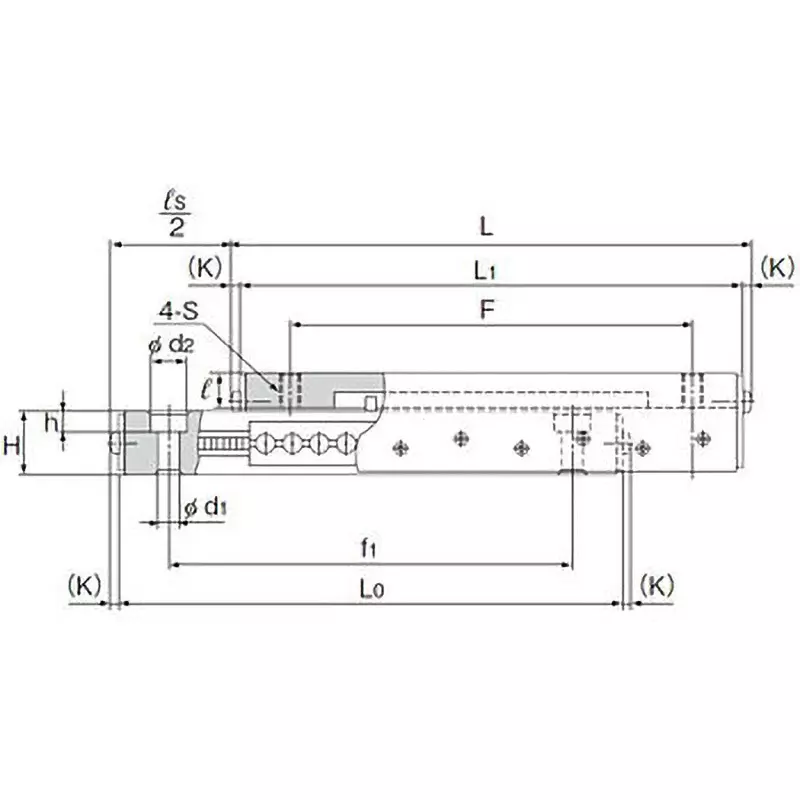

Dimension H (Φmm) |
11 |
Dimension B (Φmm) |
20 |
Dimension L1 |
47 mm |
Dimension M |
20 mm |
Dimension T |
18.3 mm |
Dimension W |
44 mm |
Dimension L (mm) |
54 |
Dimensions d1 x d2 x h (mm) |
5.3x9x5.3 |
Dimension W1 (mm) |
22.3 |
RoHS Directive |
Correspondence |
Dimension F (Φmm) |
35 |
Dimension Ls (mm) |
25 |
Dimension F1 |
35 mm |
Dimension L0 (mm) |
54 |
Dimensions S x l (mm) |
M5x8.4 |
