| Type of Product | Linear Bush |
| Model No | LM 30L |
| Type | Long Standard Type |
| Monotaro ID | 7231953 |
Type of Product |
Linear Bush |
Model No |
LM 30L |
Type |
Long Standard Type |
Monotaro ID |
7231953 |
Country of Origin |
Japan |
Tolerance |
0 to -9 μm |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
580 |
Outer Diameter Tolerance (mm) |
0 to -0.019 |
Shape |
Straight (long type) |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
45 |
Basic load rating Coa (N) |
5490 |
Basic load rating Ca (N) |
2490 |
Ball Material |
SUJ2 (high carbon chromium steel) |

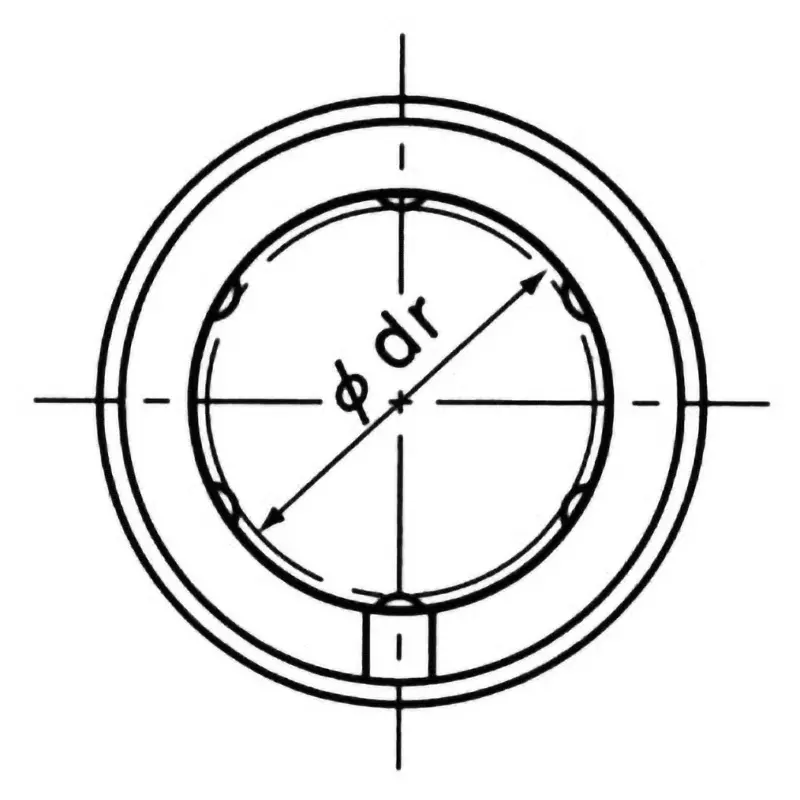

Dimension Dr (Φmm) |
30 |
Maximum Eccentricity (μm) |
20 |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |
Overall Length L |
123 mm (0 to -0.4) |
Pipe Material |
SUJ2 (high carbon chromium steel) |
Seal Material |
Rubber |
Dimension D0 (Φmm) |
43 |
Dimension L2 |
1.85 mm |
