| Type of Product | Precision Ball Screw |
| Model No | BNK 1402-3RRG0+266LC3Y |
| Type | Standard Lead |
| Monotaro ID | 7257171 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 1402-3RRG0+266LC3Y |
Type |
Standard Lead |
Monotaro ID |
7257171 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

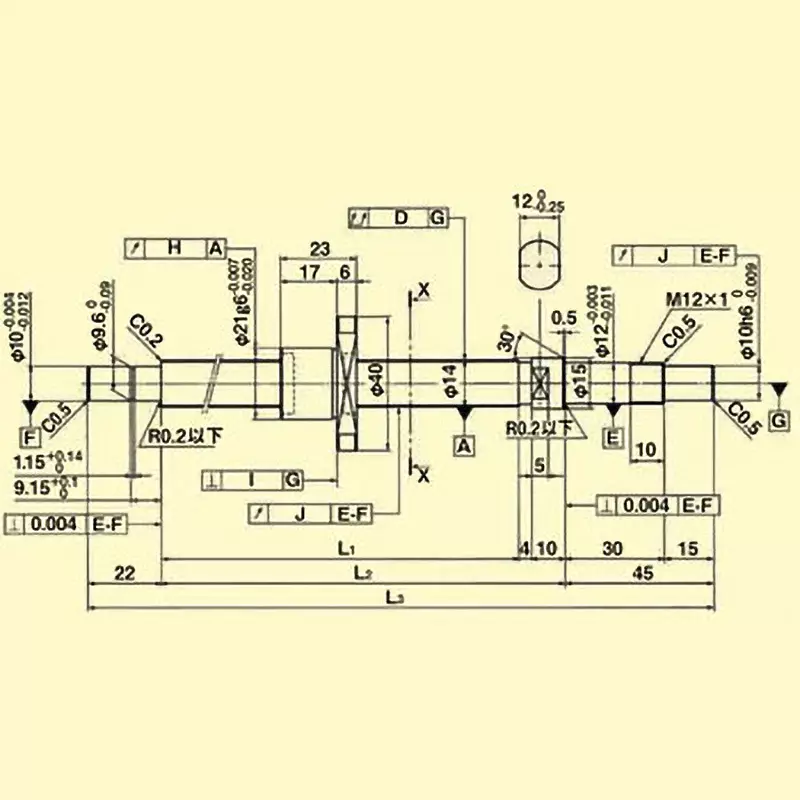

Dimension L2 |
199 mm |

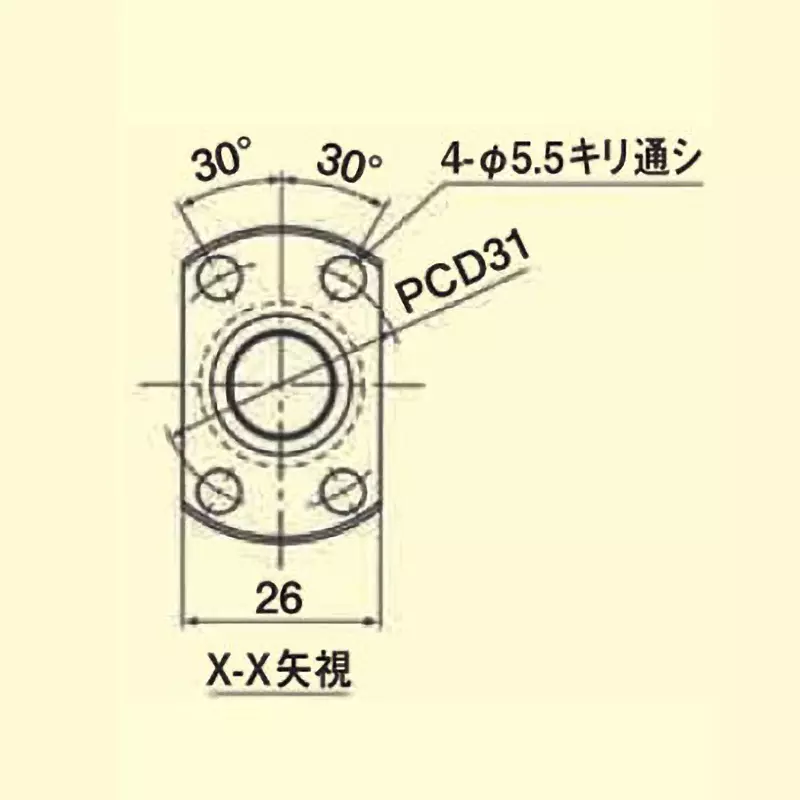

P.C.D (mm) |
31 |
Dimension L3 (mm) |
266 |
Variation |
0.008 mm |
No. of Circuits |
1 roll x 3 rows |
Stroke (mm) |
150 |
Dimension L1 |
185 mm |
Nut Outside Dia |
Φ21 mm (g6：-0.007 to -0.020) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
14.3 |
Squareness (mm) |
8.0000000000000002E-3 |
Lead |
2 mm |
Basic Static Load Rating (kN) |
4.3 |
Basic Dynamic Load Rating (kN) |
1.8 |
Shaft Outer Diameter |
14 mm |
Root Diameter |
13 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
Torque (Nm) |
4.9x10<sup>-3</sup> to 4.9x10<sup>-2</sup> |
