Ships within 25 days
View
View
View
View
| Type of Product | Linear Bush |
| Model No | LMK 20 |
| Type | Standard Type |
| Monotaro ID | 7232757 |
Type of Product |
Linear Bush |
Model No |
LMK 20 |
Type |
Standard Type |
Monotaro ID |
7232757 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mounting Hole Diameter (Φmm) |
d1xd2xh：5.5x9.2x5.4 |
Mass (g) |
145 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Square flange type |
Specifications |
Flange square |
Outer Diameter D (Φmm) |
32 |
Basic load rating Ca (N) |
863 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
5 |
Import Country |
Direct Import from Japan |

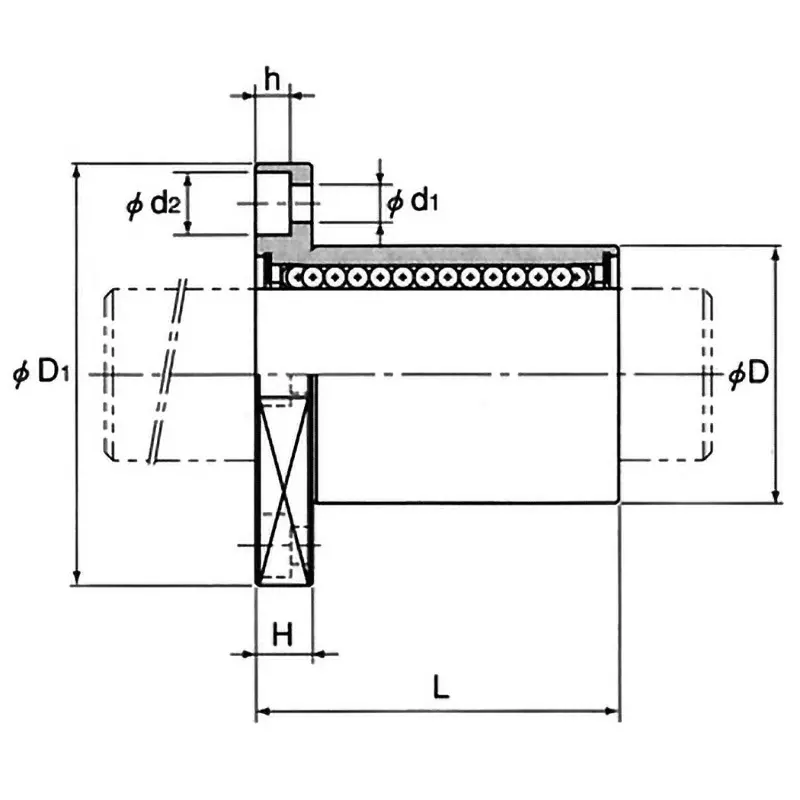

Overall Length L |
42 mm (0 to -0.2) |
Seal Material |
Rubber |
Dimension H (Φmm) |
8 |
Dimension d1 (Φmm) |
54(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：5.5x9.2x5.4 |
Squareness (microns) |
15 μm |

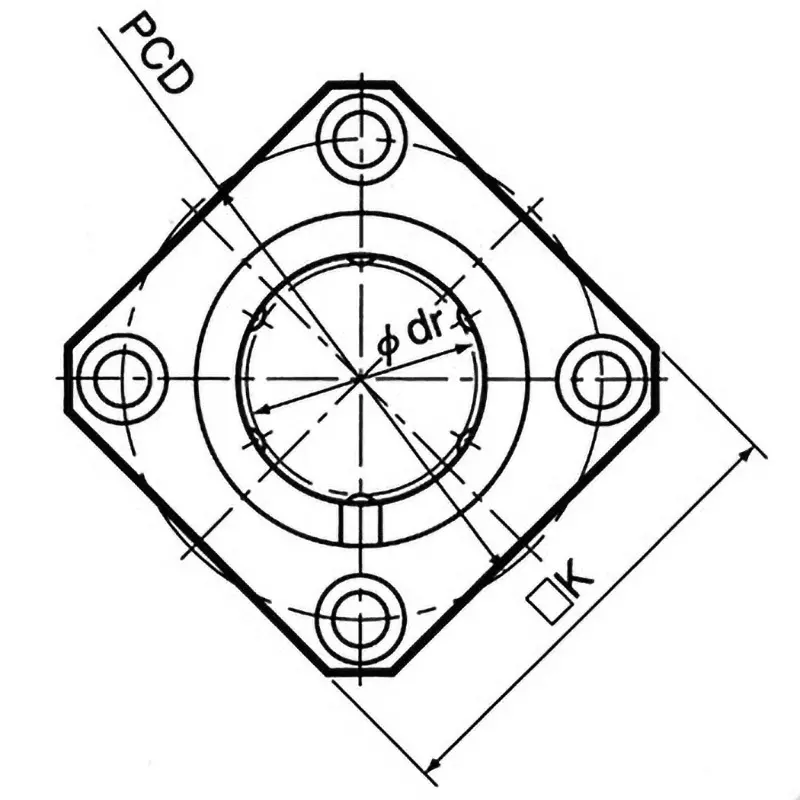

P.C.D (mm) |
43 |
Dimension K |
42 mm |
