| Type of Product | Linear Bushing |
| Model No | LM 4 |
| Type | Standard Type |
| Monotaro ID | 7231524 |
Type of Product |
Linear Bushing |
Model No |
LM 4 |
Type |
Standard Type |
Monotaro ID |
7231524 |
Country of Origin |
Japan |
Tolerance |
0 to -3 μm |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.008 |
Mass (g) |
1.9 |
Outer Diameter Tolerance (mm) |
0 to -0.009 |
Shape |
Straight |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
8 |
Basic load rating Coa (N) |
127 |
Basic load rating Ca (N) |
88.2 |
Ball Material |
SUJ2 (high carbon chromium steel) |

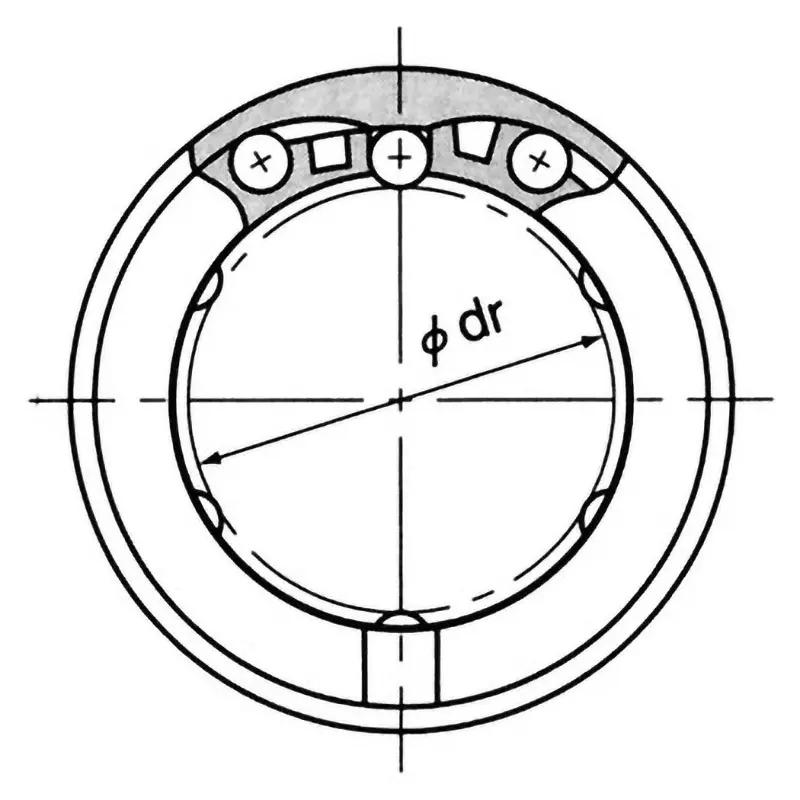

Dimension Dr (Φmm) |
4 |
Maximum Eccentricity (μm) |
8 |
Number of Ball Raws |
4 |
Import Country |
Direct Import from Japan |
Overall Length L |
12 mm (0 to -0.12) |
Pipe Material |
SUJ2 (high carbon chromium steel) |
Seal Material |
Rubber |
