Ships within 25 days
View
View
View
View
| Type of Product | Linear Bushing |
| Model No | LMF 40LUU |
| Type | Long Type |
| Monotaro ID | 7232382 |
Type of Product |
Linear Bushing |
Model No |
LMF 40LUU |
Type |
Long Type |
Monotaro ID |
7232382 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.015 |
Mass (g) |
1560 |
Outer Diameter Tolerance (mm) |
0 to -0.022 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
60 |
Basic load rating Coa (N) |
8040 |
Basic load rating Ca (N) |
3430 |
Ball Material |
SUJ2 (high carbon chromium steel) |

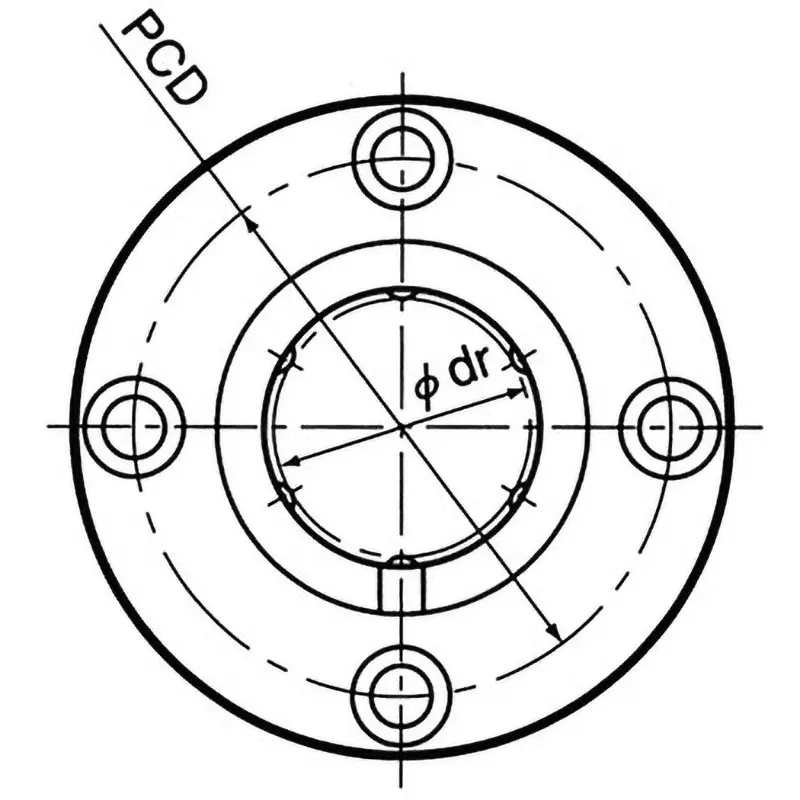

Dimension Dr (Φmm) |
40 |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

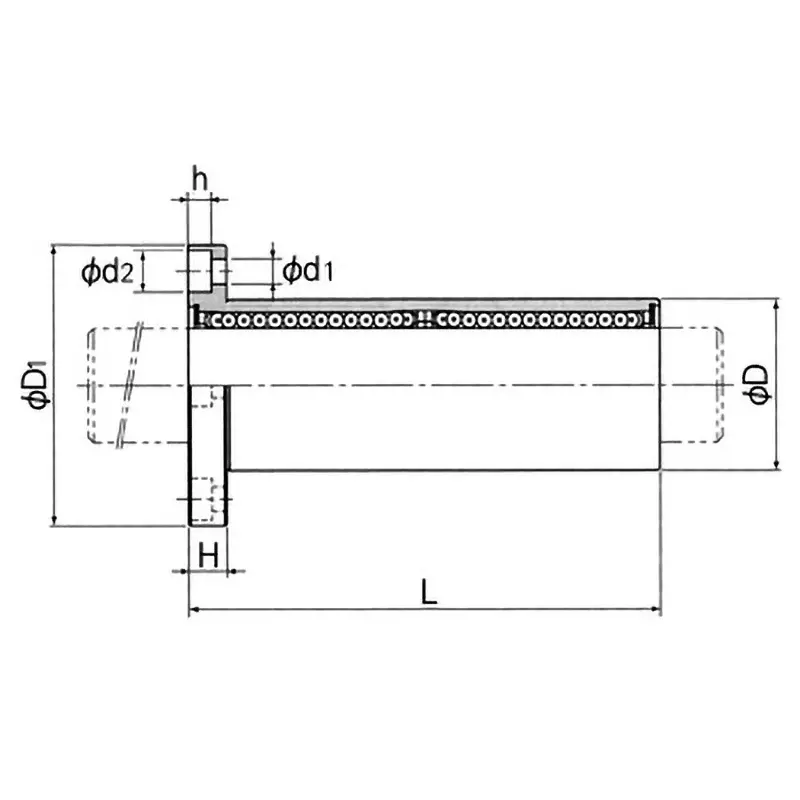

Overall Length L |
154 mm (0 to -0.4) |
Special Features |
Sealed On Both Ends of the Outer Cylinder |
Seal Material |
Rubber |
Dimension H (Φmm) |
13 |
Dimension d1 (Φmm) |
96(0 to -0.3) |
Mounting Hole (mm) |
d1xd2xh：9x14x8.6 |
Squareness |
25 μm |
PCD (mm) |
78 |
