Ships within 25 days
View
View
View
View
| Type of Product | Linear Bushing |
| Model No | LM 50 |
| Type | Standard Type |
| Monotaro ID | 7231664 |
Type of Product |
Linear Bushing |
Model No |
LM 50 |
Type |
Standard Type |
Monotaro ID |
7231664 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Tolerance (mm) |
0 to -0.012 |
Mass (g) |
1580 |
Outer Diameter Tolerance (mm) |
0 to -0.022 |
Shape |
Straight |
Specifications |
Standard type |
Outer Diameter D (Φmm) |
80 |
Basic load rating Coa (N) |
7940 |
Basic load rating Ca (N) |
3820 |
Ball Material |
SUJ2 (high carbon chromium steel) |

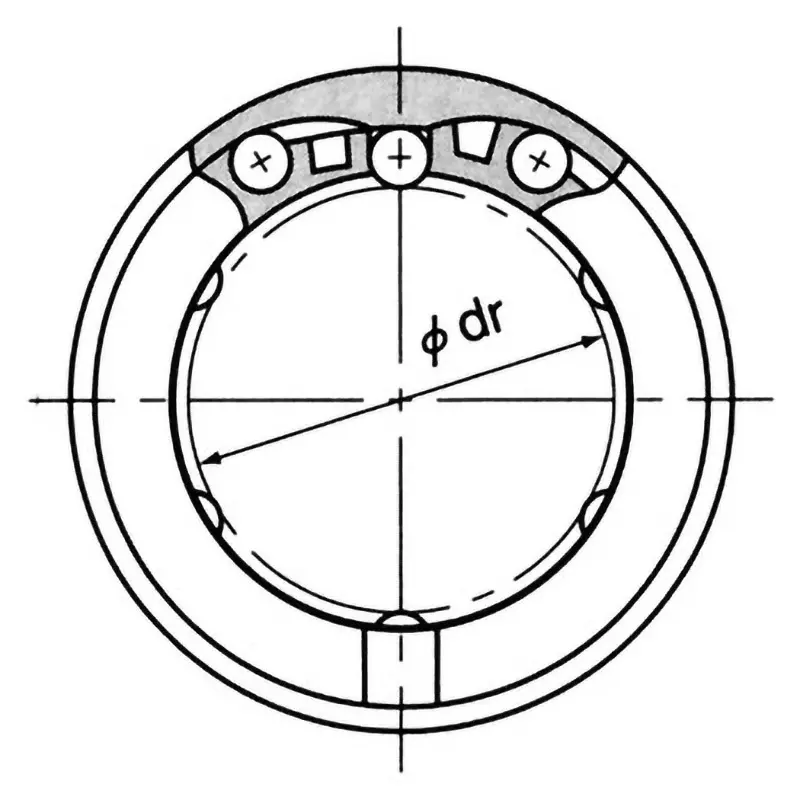

Dimension Dr (Φmm) |
50 |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

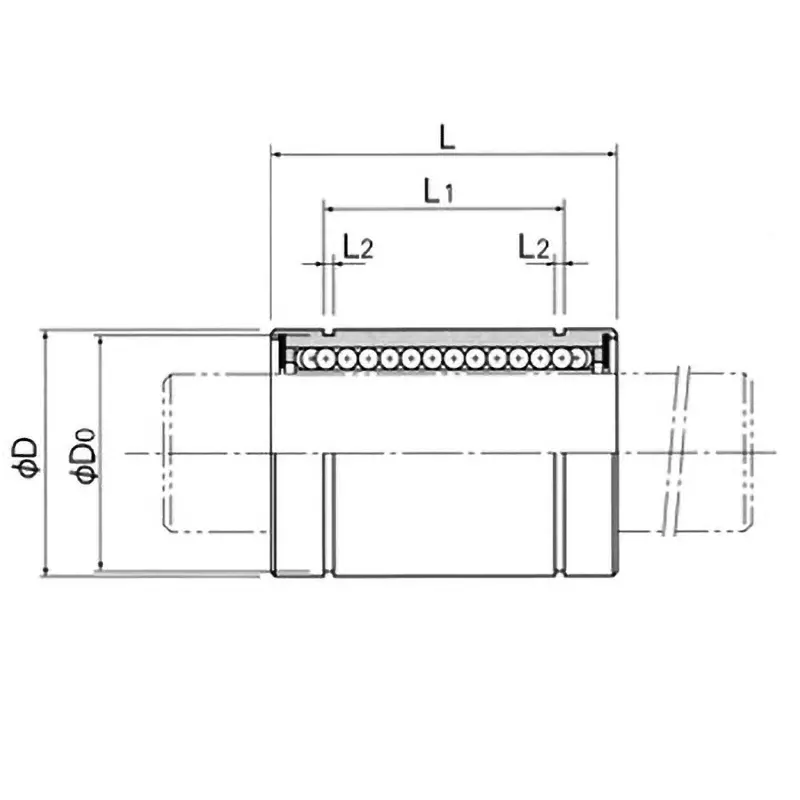

Overall Length L |
100 mm (0 to -0.3) |
Seal Material |
Rubber |
Dimension H0 (mm) |
3 |
Dimension D0 (Φmm) |
76.5 |
Dimension L2 |
2.6 mm |
Angle θ (°) |
50 |
Dimension H1 |
25 mm |
