| Type of Product | Linear Bush |
| Model No | LMF 40 |
| Type | Standard Type |
| Monotaro ID | 7232251 |
Type of Product |
Linear Bush |
Model No |
LMF 40 |
Type |
Standard Type |
Monotaro ID |
7232251 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mounting Hole Diameter (Φmm) |
9x14x8.6 |
Mass (g) |
1054 |
Outer Diameter Tolerance (mm) |
0 to -0.019 |
Shape |
Round flange type |
Specifications |
Flange round shape |
Outer Diameter D (Φmm) |
60 |
Basic load rating Coa (N) |
4020 |
Basic load rating Ca (N) |
2160 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

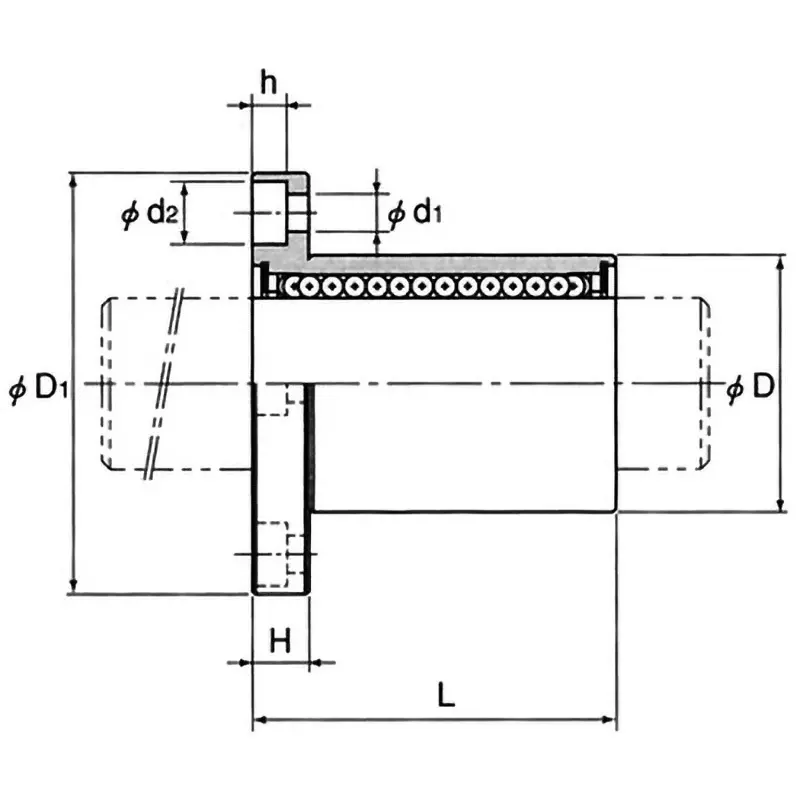

Overall Length L |
80 mm (0 to -0.3) |
Seal Material |
Rubber |
Dimension H (Φmm) |
13 |
Dimension d1 (Φmm) |
96(0 to -0.3) |
Mounting Hole (mm) |
d1xd2xh：9x14x8.6 |
Squareness (microns) |
20 μm |

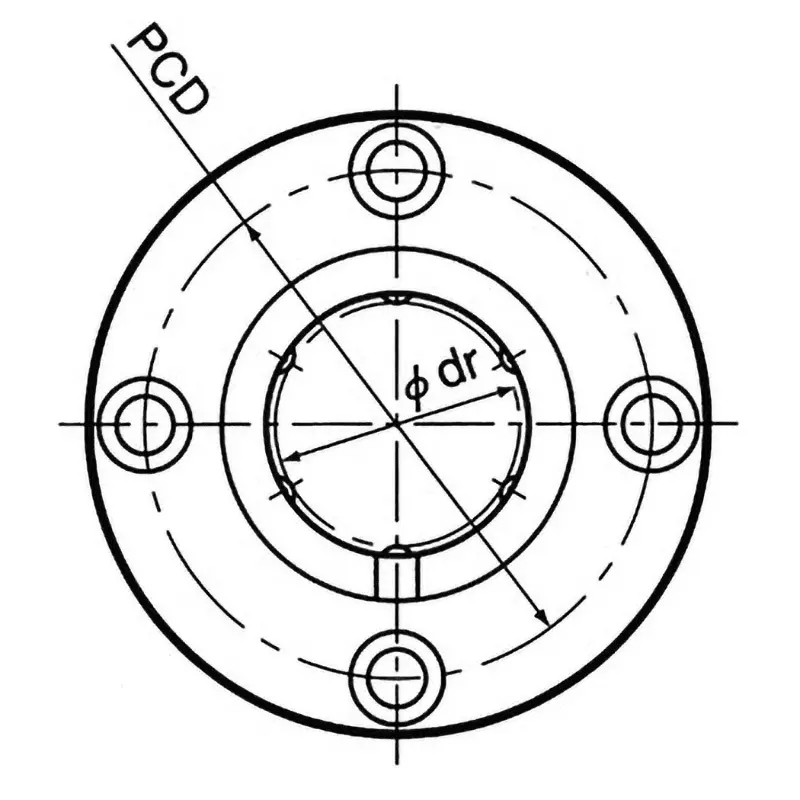

P.C.D (mm) |
78 |
