Ships within 25 days
View
View
View
View
| Type of Product | Linear Bush |
| Model No | LMK 40L |
| Type | Long Type |
| Monotaro ID | 7233055 |
Type of Product |
Linear Bush |
Model No |
LMK 40L |
Type |
Long Type |
Monotaro ID |
7233055 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
1380 |
Outer Diameter Tolerance (mm) |
0 to -0.022 |
Shape |
Square flange type |
Specifications |
Flange square |
Outer Diameter D (Φmm) |
60 |
Basic load rating Coa (N) |
8040 |
Basic load rating Ca (N) |
3430 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

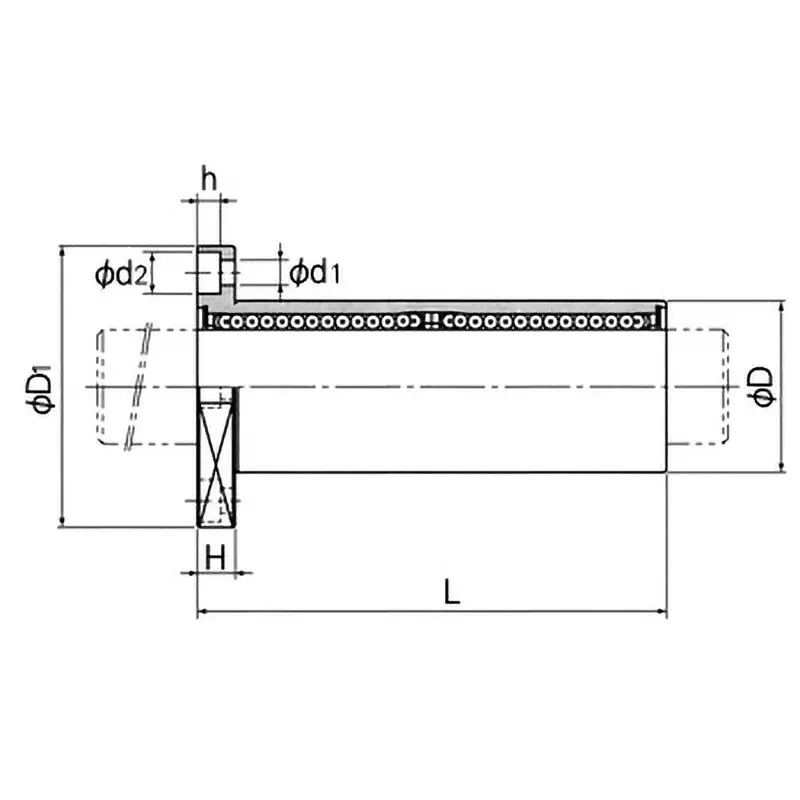

Overall Length L |
154 mm (0 to -0.4) |
Seal Material |
Rubber |
Dimension H (Φmm) |
13 |
Dimension d1 (Φmm) |
96(0 to -0.3) |
Mounting Hole (mm) |
d1xd2xh：9x14x8.6 |
Squareness (microns) |
25 μm |

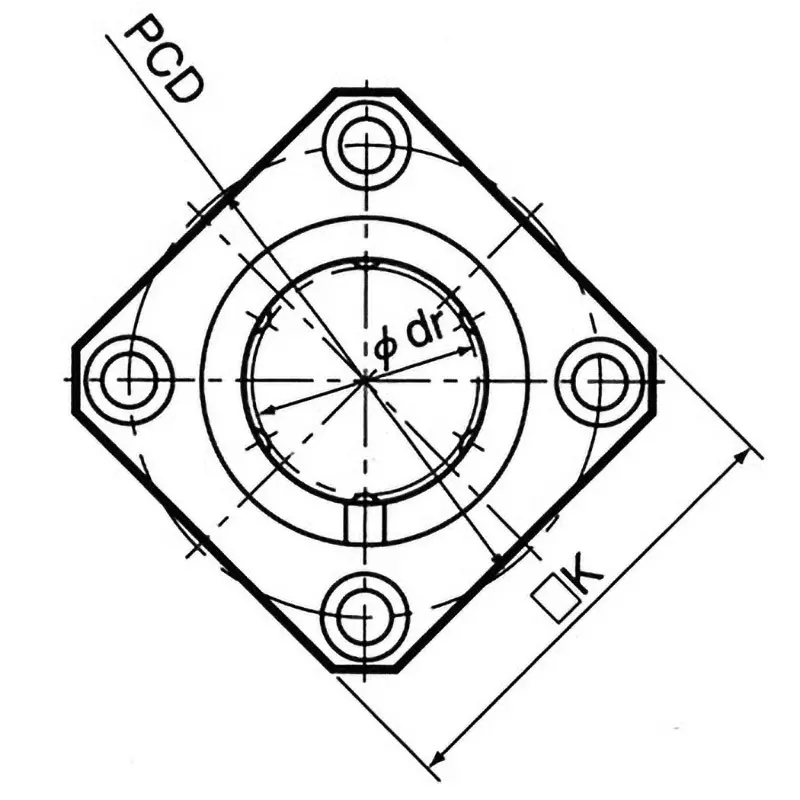

P.C.D (mm) |
78 |
Dimension K |
75 mm |
