| Type of Product | Linear Bush |
| Model No | LMH 30UU |
| Monotaro ID | 7233161 |
| Country of Origin | Japan |
Type of Product |
Linear Bush |
Model No |
LMH 30UU |
Monotaro ID |
7233161 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
350 |
Outer Diameter Tolerance (mm) |
0 to -0.016 |
Shape |
Oval flange type |
Specifications |
Flange oval shape |
Outer Diameter D (Φmm) |
45 |
Basic load rating Ca (N) |
1570 |
Ball Material |
SUJ2 (high carbon chromium steel) |
Number of Ball Raws |
6 |
Import Country |
Direct Import from Japan |

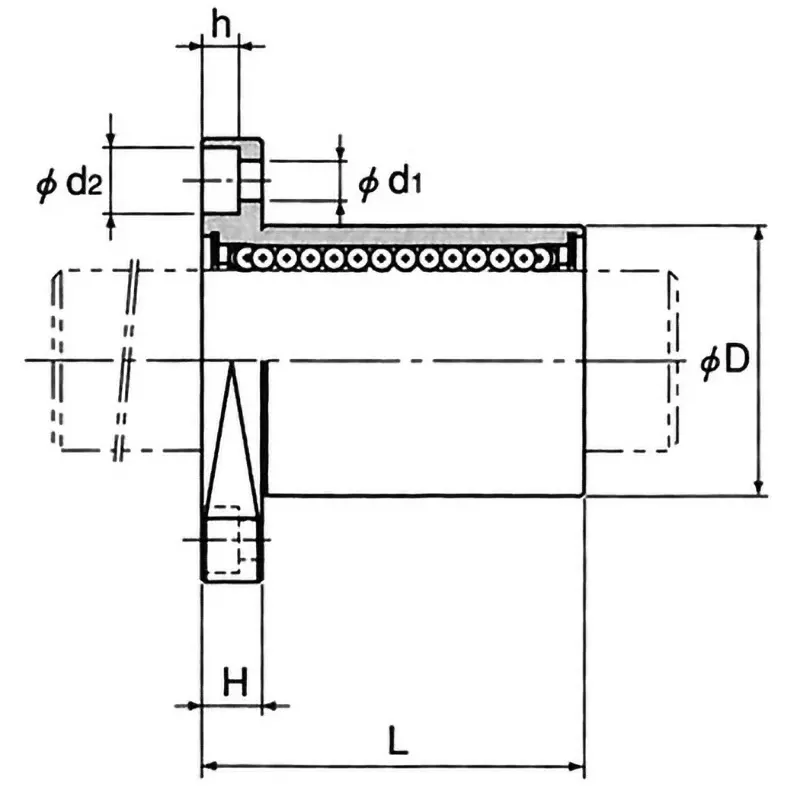

Overall Length L |
64 mm (0 to -0.3) |
Special Features |
Sealed on both ends of the outer cylinder |
Seal Material |
Rubber |
Dimension H (Φmm) |
10 |
Dimension d1 (Φmm) |
74(0 to -0.2) |
Mounting Hole (mm) |
d1xd2xh：6.6x11x6.5 |
Squareness (microns) |
15 μm |

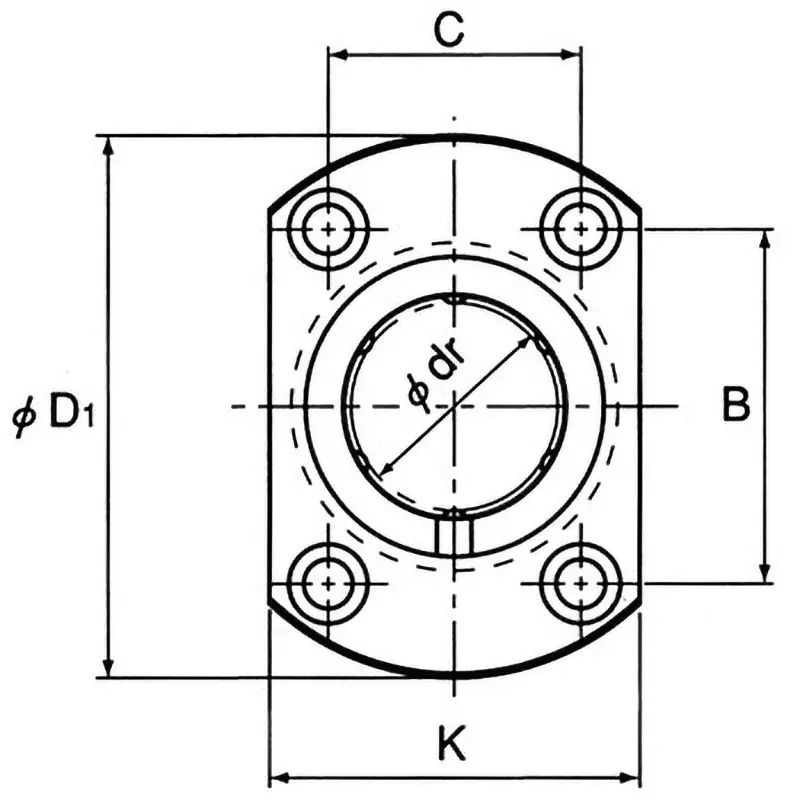

Dimension K |
51 mm |
Dimension B (Φmm) |
49 |
Dimension C |
35 mm |
