| Type of Product | Precision Ball Screw |
| Model No | BNK 0401-3G0+127LC3Y |
| Type | Standard Lead |
| Monotaro ID | 7255841 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 0401-3G0+127LC3Y |
Type |
Standard Lead |
Monotaro ID |
7255841 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

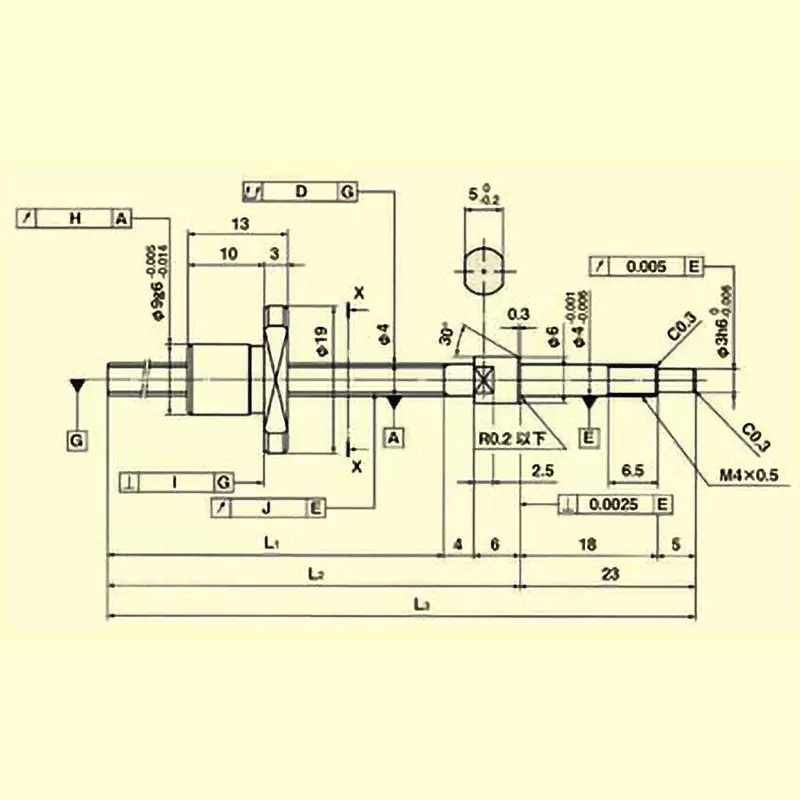

Dimension L2 |
104 mm |

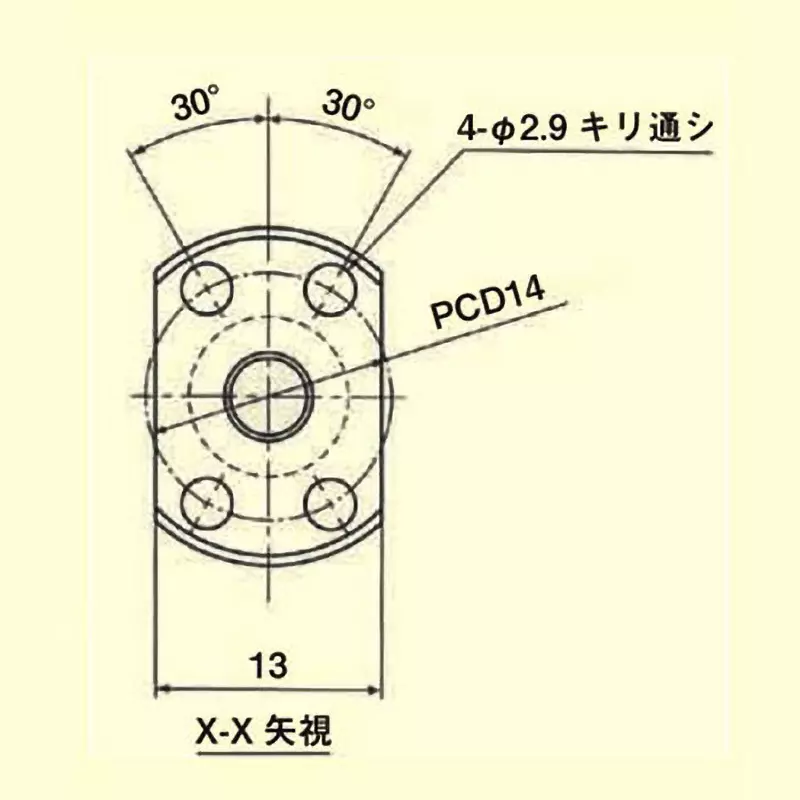

P.C.D (mm) |
14 |
Dimension L3 (mm) |
127 |
Variation |
0.008 mm |
No. of Circuits |
1 roll x 3 rows |
Stroke (mm) |
70 |
Dimension L1 |
94 mm |
Nut Outside Dia |
Φ9 mm (g6：-0.005 to -0.014) |
Type of Terminal Fitting |
Fixed-free |
BCD (mm) |
4.1500000000000004 |
Squareness (mm) |
8.0000000000000002E-3 |
Lead |
1 mm |
Basic Static Load Rating (kN) |
0.42 |
Basic Dynamic Load Rating (kN) |
0.28999999999999998 |
Shaft Outer Diameter |
4 mm |
Root Diameter |
3.4 mm |
Start Type |
1 |
Spiral Angle |
Right direction |
Torque (Nm) |
0 to 9.8x10<sup>-3</sup> |
