| Type of Product | Precision Ball Screw |
| Model No | BNK 2020-3.6G0+520LC5Y |
| Type | Standard Lead |
| Monotaro ID | 7258535 |
Type of Product |
Precision Ball Screw |
Model No |
BNK 2020-3.6G0+520LC5Y |
Type |
Standard Lead |
Monotaro ID |
7258535 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
Built-in labyrinth seal and end cap |
Import Country |
Direct Import from Japan |
Special Features |
Shaft End / Finished Product |

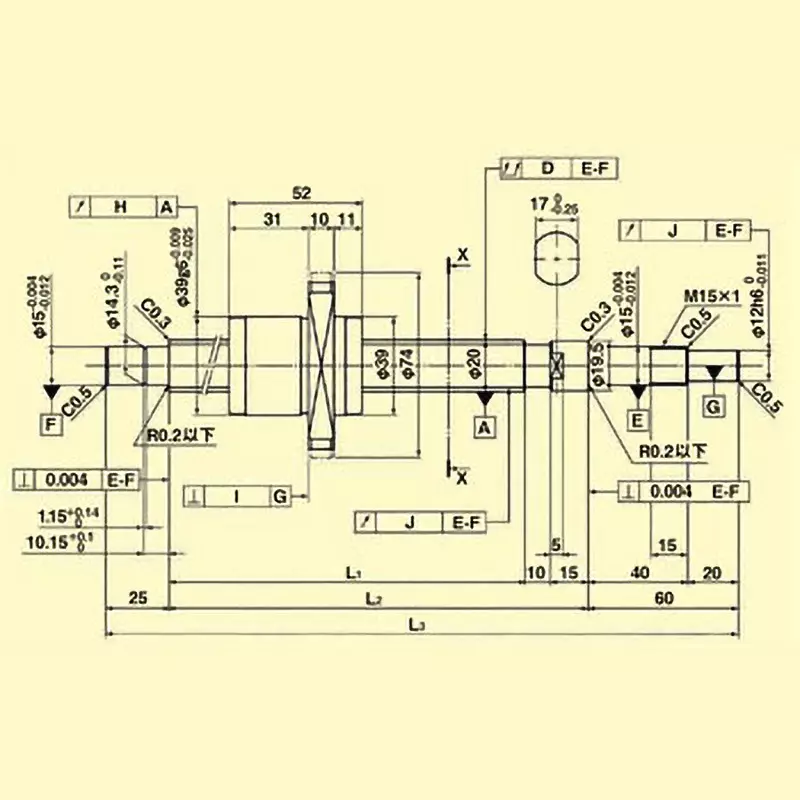

Dimension L2 |
435 mm |

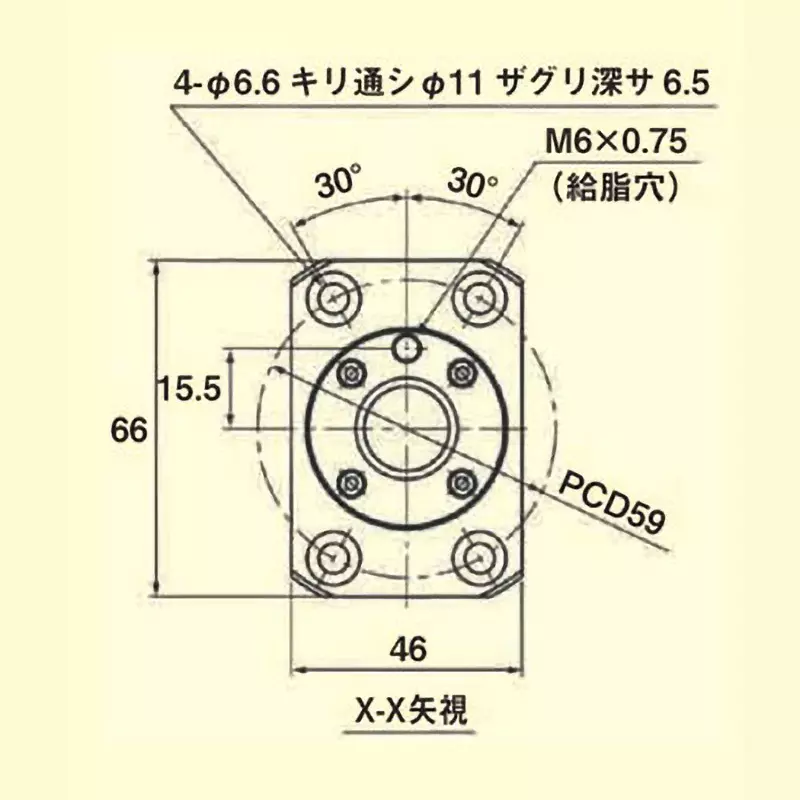

P.C.D (mm) |
59 |
Dimension L3 (mm) |
520 |
Variation |
0.02 mm |
Stroke (mm) |
300 |
Dimension L1 |
410 mm |
Nut Outside Dia |
Φ39 mm (g6：-0.009 to -0.025) |
Type of Terminal Fitting |
Fixed-supported |
BCD (mm) |
20.75 |
Squareness (mm) |
1.0999999999999999E-2 |
Lead |
20 mm |
Basic Static Load Rating (kN) |
12.3 |
Basic Dynamic Load Rating (kN) |
7 |
Shaft Outer Diameter |
20 mm |
Root Diameter |
17.5 mm |
Start Type |
2 |
Spiral Angle |
Right direction |
Torque (Nm) |
2x10<sup>-2</sup> to 9.8x10<sup>-2</sup> |
Bore Diameter (mm) |
11, depth: 6.5 |
