| Type of Product | Linear Bushing with Seal |
| Model No | SH 3LUU |
| Type | Long Type |
| Monotaro ID | 39252245 |
Type of Product |
Linear Bushing with Seal |
Model No |
SH 3LUU |
Type |
Long Type |
Monotaro ID |
39252245 |
Country of Origin |
Japan |
Diameter |
S1xl1：M3x6、S2xl：M3x5.5 |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mass (g) |
8.5 |
Shape |
Case unit |
Specifications |
Case built-in type |
Basic load rating Coa (N) |
216 |
Basic load rating Ca (N) |
139 |

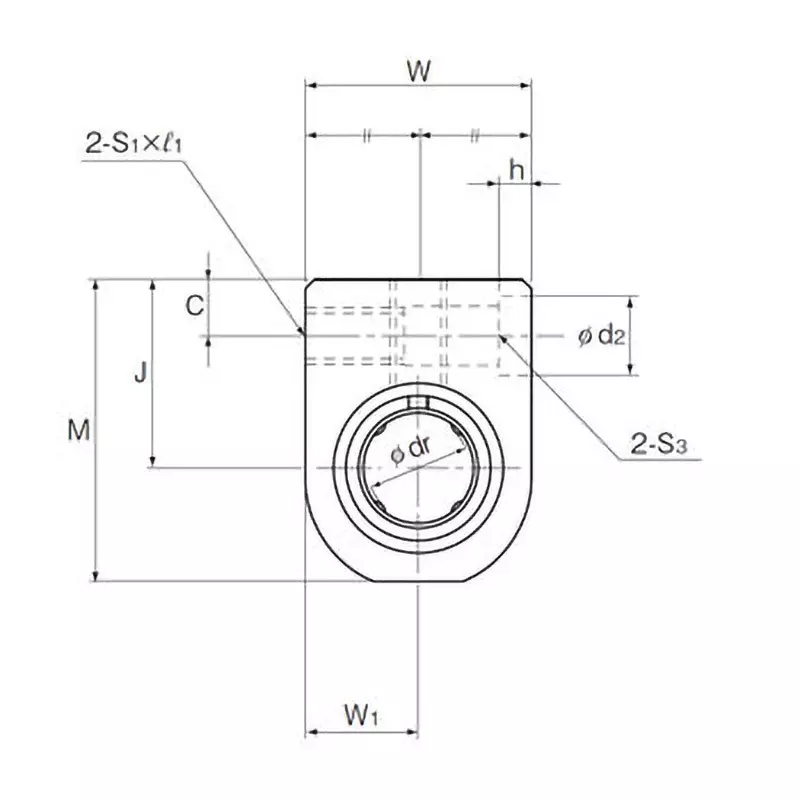

Dimension Dr (Φmm) |
3 |
Import Country |
Direct Import from Japan |
Overall Length L |
23 mm |
Pipe Material |
SUJ2 (high carbon chromium steel) |
Seal Material |
Rubber |
Dimension H (Φmm) |
1.5 |
Dimension B (Φmm) |
10 |
Dimension C |
3 mm |
Dimension B1 (mm) |
18 |
Set Contents |
Linear bushing: LM 3U |
Dimension J (mm) |
9(±0.02) |
Dimension d2 (Φmm) |
4.2 |
Bolt Type |
(Through bolt nominal S3) M2 |
Dimension W1 (mm) |
5(±0.02) |
