Ships within 25 days
View
View
View
View
| Type of Product | Stainless Linear Bush |
| Model No | LMK 6ML |
| Type | Long Type |
| Monotaro ID | 39250906 |
Type of Product |
Stainless Linear Bush |
Model No |
LMK 6ML |
Type |
Long Type |
Monotaro ID |
39250906 |
Country of Origin |
Japan |
Maximum Operating Temperature |
80℃ |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Mounting Hole Diameter (Φmm) |
d1xd2xh：3.4x6.5x3.3 |
Tolerance (mm) |
0 to -0.010 |
Mass (g) |
26 |
Outer Diameter Tolerance (mm) |
0 to -0.013 |
Shape |
Square flange type |
Specifications |
Flange square |
Outer Diameter D (Φmm) |
12 |
Basic load rating Coa (N) |
529 |
Basic load rating Ca (N) |
324 |
Ball Material |
SUS (stainless steel) |
Import Country |
Direct Import from Japan |

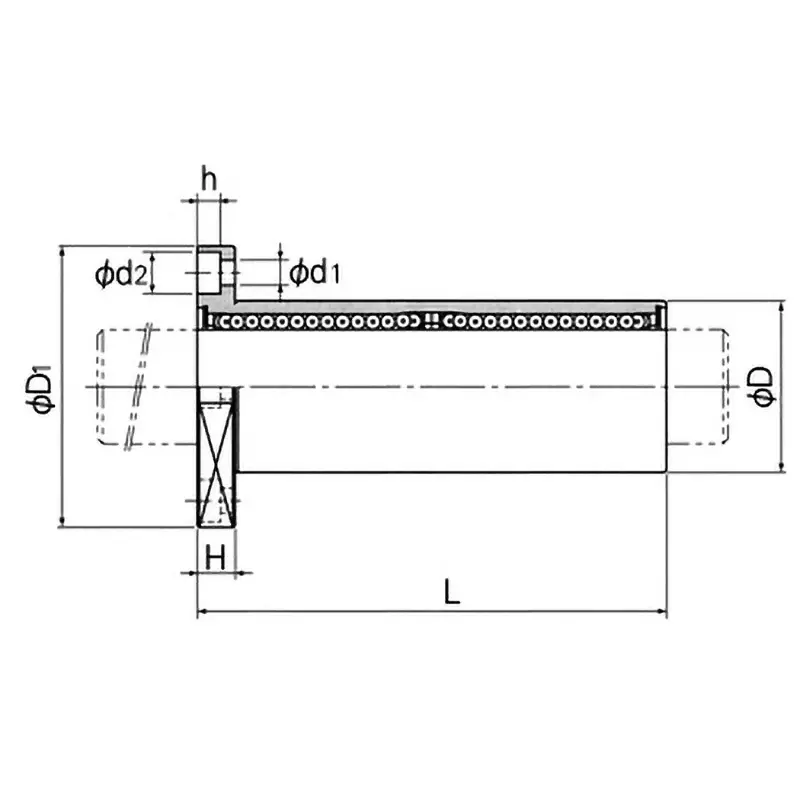

Overall Length L |
35 mm (0 to -0.3) |
Dimension H (Φmm) |
5 |
Dimension d1 (Φmm) |
28(0 to -0.2) |

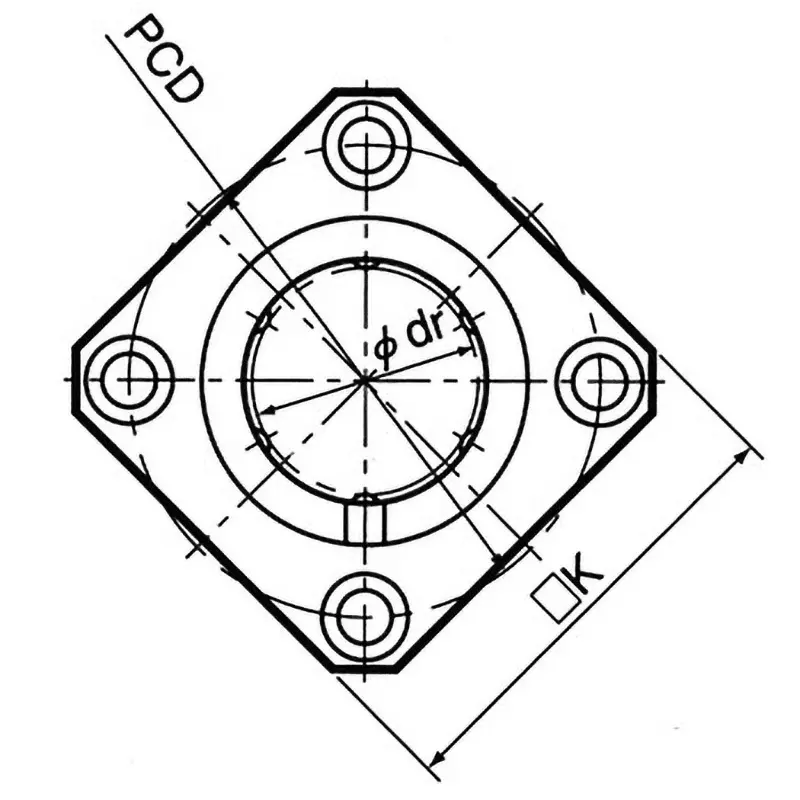

Dimension K |
22 mm |
Squareness |
15 μm |
PCD (mm) |
20 |
