Ships within 25 days
View
View
View
View
| Type of Product | Linear Motion Block |
| Model No | SHS35CSS Block Only |
| Suitable For | SHS35C rail |
| Type | SHS-C Type |
Type of Product |
Linear Motion Block |
Model No |
SHS35CSS Block Only |
Suitable For |
SHS35C rail |
Type |
SHS-C Type |
Monotaro ID |
33051663 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Specifications |
With end seal With side seal With inner seal |
Import Country |
Direct Import from Japan |

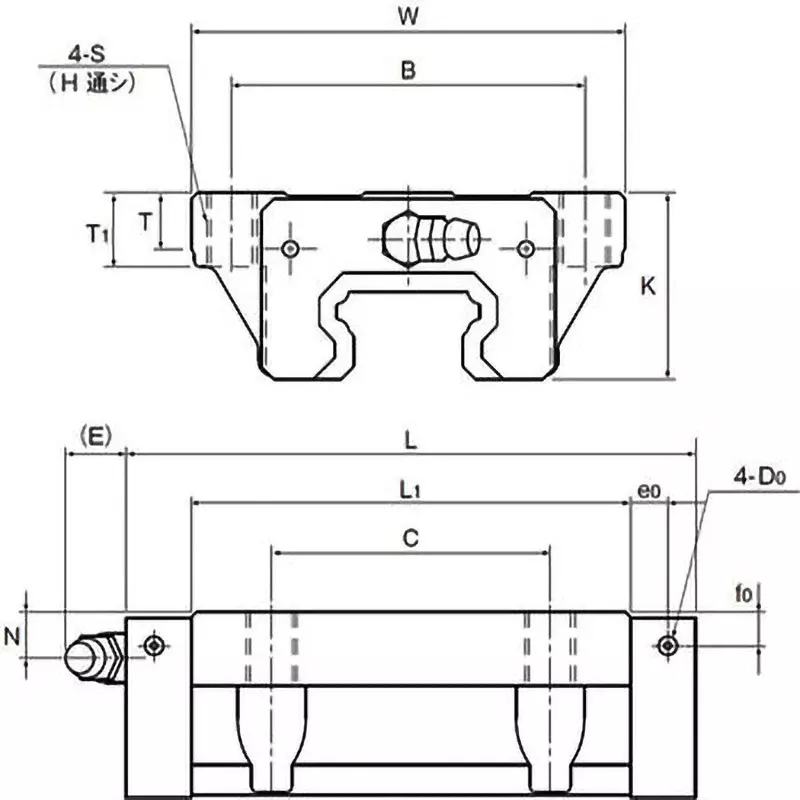

Dimension D0 (Φmm) |
5.2 |
Dimension H (Φmm) |
8.5 |
Dimension K |
40.5 mm |
Dimension B (Φmm) |
82 |
Dimension C |
62 mm |
Dimension L1 |
93 mm |
Basic Static Load Rating (kN) |
96.6 |
Basic Dynamic Load Rating (kN) |
62.3 |
Mass (Kg) |
1.9 |
Dimension T |
11.5 mm |
Dimension n (mm) |
8 |
Dimension E (Φmm) |
12 |
Dimension E |
6.5 mm |
Dimension F |
5.5 mm |
Allowable Static Moment (Nm) |
M <sub>A</sub> (1): 1.38k, (2 close contacts): 6.76k <br> M <sub>B</sub> (1 piece): 1.38k, (Two pieces): 6.76k <br> M <sub>C</sub> (one): 1.53k |
Dimension t1 (mm) |
15 |
