| Model No | KWD-020-SNS-C2-H-1 |
| Type of Product | Ball Runner Block |
| Material | Carbon Steel |
| Seal | SS - Standard Seal |
Model No |
KWD-020-SNS-C2-H-1 |
Type of Product |
Ball Runner Block |
Material |
Carbon Steel |
Seal |
SS - Standard Seal |
Weight |
350 g |
Country of Origin |
India |
Accuracy Class |
H - Highly Accurate |
Name of Manufacturer/Packer/Importer |
Rudraksh Engineering |
Type |
High-Precision Ball Runner Block |

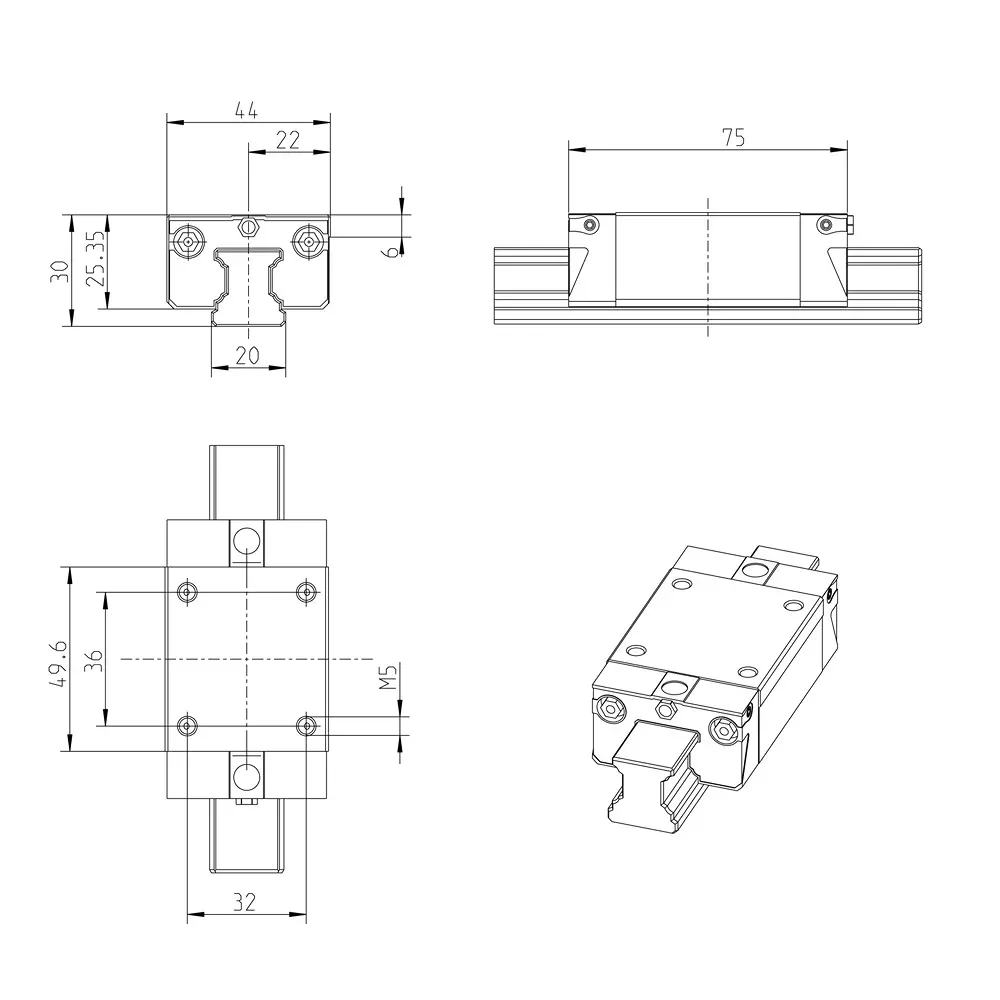

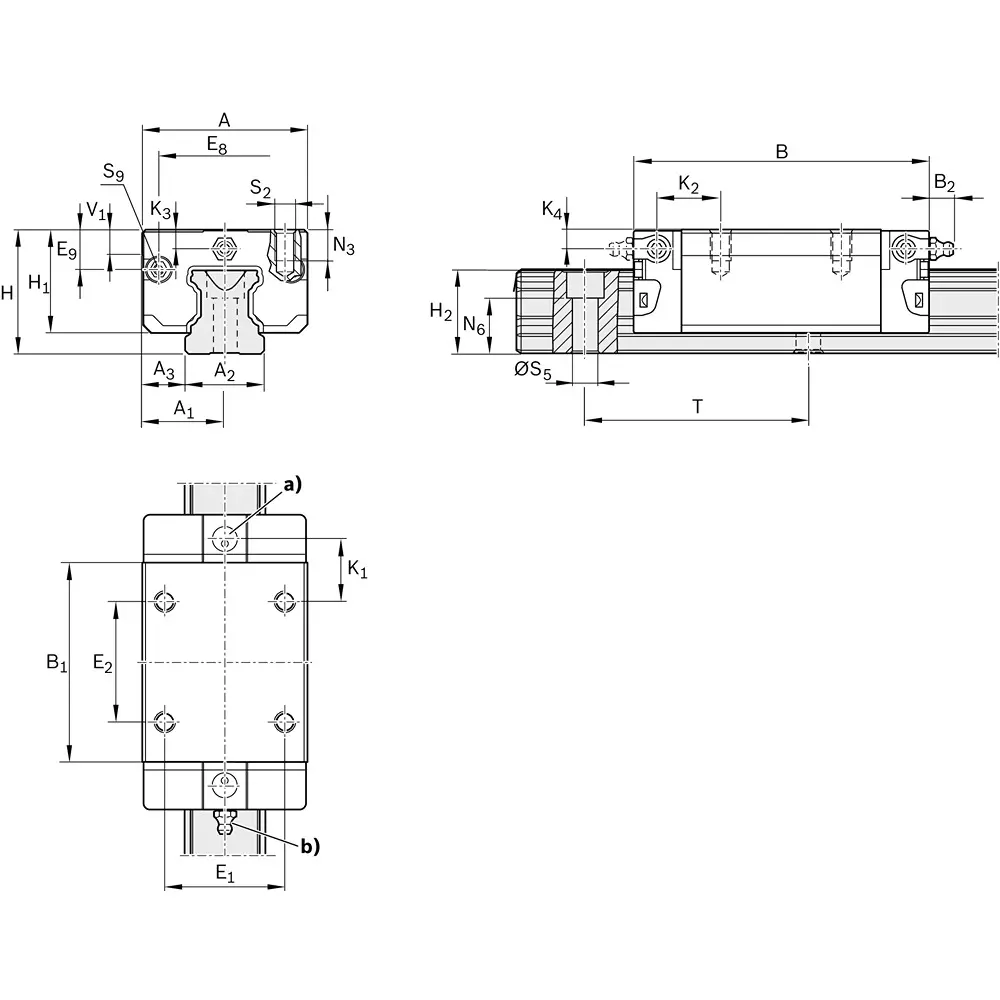

Dimension H1 |
25.35 mm |
Dimension E1 |
32 mm |
Dimension E2 |
36 mm |
Dimension t1 (mm) |
13 mm |
Dimension B |
75 mm |
Version |
Ball Rail System |
Lubrication |
Pre-lubricated, Preserved |
Maximum Linear Speed |
5 m/s |
Acceleration |
500 m/s² |
Item Code |
R162282320 |
Width of Runner Block |
44 mm |
Dimension A1 |
22 mm |
Height of Runner Block |
25.35 mm |
Dimension A3 (mm) |
12 mm |
Chain |
Without Ball Chain (Standard) |
Dimension B1 (mm) |
49.6 mm |
Format |
SNS - Slimline, Normal, Standard Height |
Length of Runner Block |
75 mm |
Dimension A |
44 mm |
Preload Class |
C2 - Medium Preload |
Nominal Size (mm) |
20 mm |
Dimension K1 (mm) |
13.8 mm |
Dimension H |
30 mm |
Dimension A2 (mm) |
20 mm |
Alignment |
Without Self-Alignment |
