| Model No | MWA-015-SNS-C1-H-3 |
| Type of Product | Miniature Runner Block |
| Material | Martensitic Steel |
| Seal | NS - N and Longitudinal Seal |
Model No |
MWA-015-SNS-C1-H-3 |
Type of Product |
Miniature Runner Block |
Material |
Martensitic Steel |
Seal |
NS - N and Longitudinal Seal |
Weight |
80 g |
Country of Origin |
India |
Accuracy Class |
H - Highly Accurate |
Name of Manufacturer/Packer/Importer |
Rudraksh Engineering |

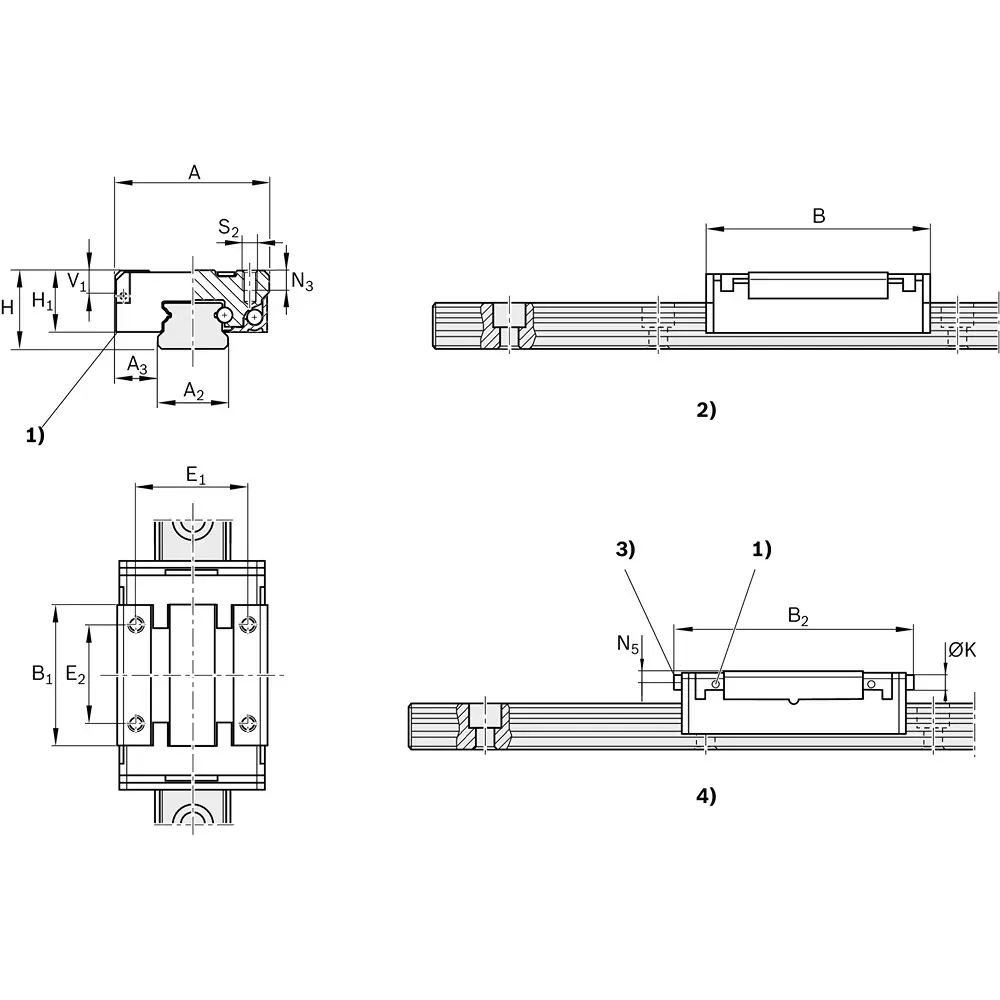

Dimension H1 |
12 mm |
Dimension E1 |
25 mm |
Dimension E2 |
20 mm |
Dimension t1 (mm) |
6 mm |
Dimension B |
43 mm |
Version |
Ball Rail System |
Lubrication |
Pre-lubricated |
Maximum Linear Speed |
3 m/s |
Acceleration |
250 m/s² |
Item Code |
R044251300 |
Width of Runner Block |
32 mm |
Height of Runner Block |
12 mm |
Dimension A3 (mm) |
8.5 mm |
Chain |
Without Ball Chain (Standard) |
Dimension B1 (mm) |
27.2 mm |
Format |
SNS - Slimline, Normal, Standard Height |
Length of Runner Block |
43 mm |
Dimension A |
32 mm |
Preload Class |
C1 - Low Preload |
Nominal Size (mm) |
15 mm |
Dimension H |
16 mm |
Dimension A2 (mm) |
15 mm |
