| Model No | KWE-045-FNS-C2-H-1 |
| Type of Product | Ball Runner Block |
| Material | Carbon Steel |
| Seal | SS - Standard Seal |
Model No |
KWE-045-FNS-C2-H-1 |
Type of Product |
Ball Runner Block |
Material |
Carbon Steel |
Seal |
SS - Standard Seal |
Weight |
2.92 Kg |
Country of Origin |
India |
Accuracy Class |
H - Highly Accurate |
Name of Manufacturer/Packer/Importer |
Rudraksh Engineering |
Type |
Compact Line Ball Runner Block |

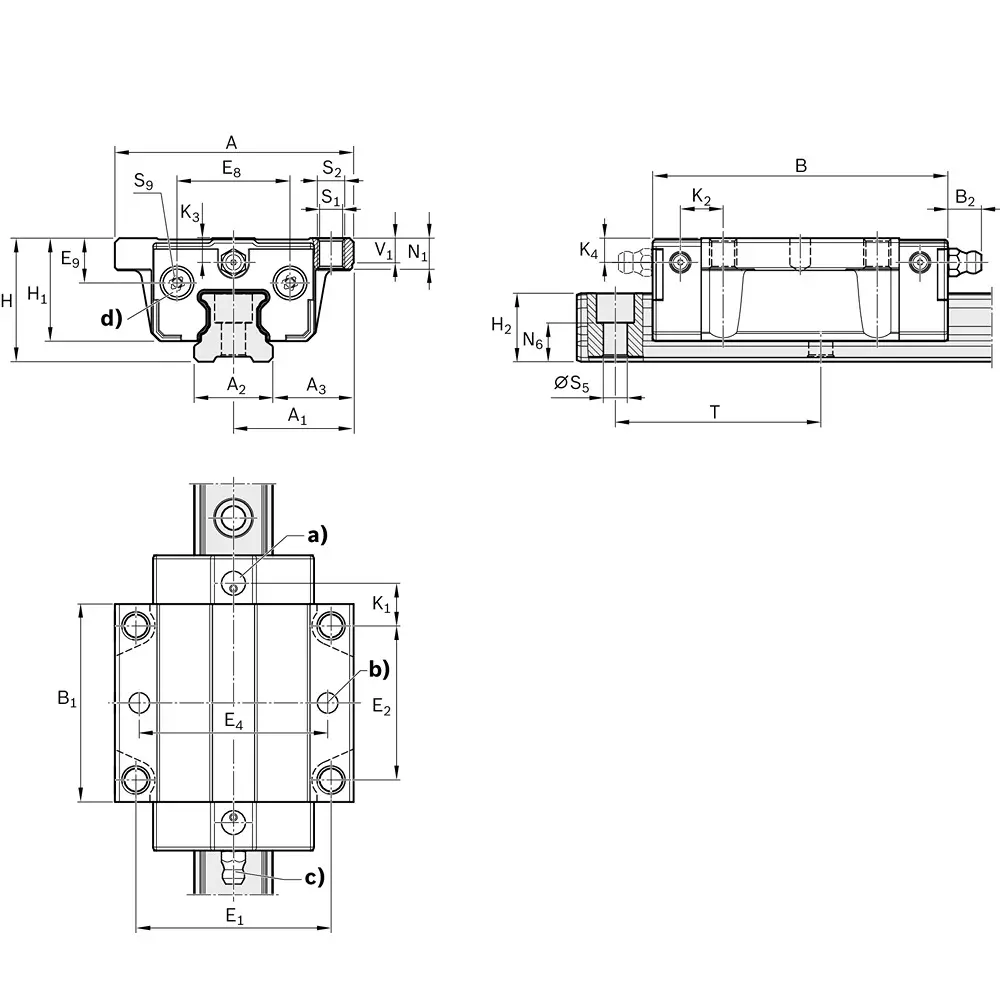

Dimension H1 |
50.3 mm |
Dimension E1 |
100 mm |
Dimension H2 |
33 mm |
Dimension E2 |
80 mm |
Dimension t1 (mm) |
18 mm |
Dimension S1 (mm) |
10.4 mm |
Dimension B |
137.5 mm |
Version |
Ball Rail System |
Lubrication |
Pre-lubricated, Preserved |
Maximum Linear Speed |
5 m/s |
Acceleration |
500 m/s² |
Item Code |
R205A42320 |
Width of Runner Block |
120 mm |
Dimension A1 |
60 mm |
Height of Runner Block |
50.3 mm |
Dimension A3 (mm) |
37.5 mm |
Chain |
Without Ball Chain (Standard) |
Dimension B1 (mm) |
97 mm |
Format |
FNS - Flange, Normal, Standard Height |
Length of Runner Block |
137.5 mm |
Dimension A |
120 mm |
Preload Class |
C2 - Medium Preload |
Nominal Size (mm) |
45 mm |
Dimension K1 (mm) |
17.3 mm |
Dimension H |
60 mm |
Dimension A2 (mm) |
45 mm |
Dimension N1 (mm) |
15 mm |
