Ships within 10 days
View
View
View
View
| Model No | KWD-025-FNS-C2-H-1 |
| Type of Product | Ball Runner Block |
| Material | Carbon Steel |
| Seal | SS - Standard Seal |
Model No |
KWD-025-FNS-C2-H-1 |
Type of Product |
Ball Runner Block |
Material |
Carbon Steel |
Seal |
SS - Standard Seal |
Weight |
650 g |
Country of Origin |
India |
Accuracy Class |
H - Highly Accurate |
Name of Manufacturer/Packer/Importer |
Rudraksh Engineering |
Type |
High-Precision Ball Runner Block |

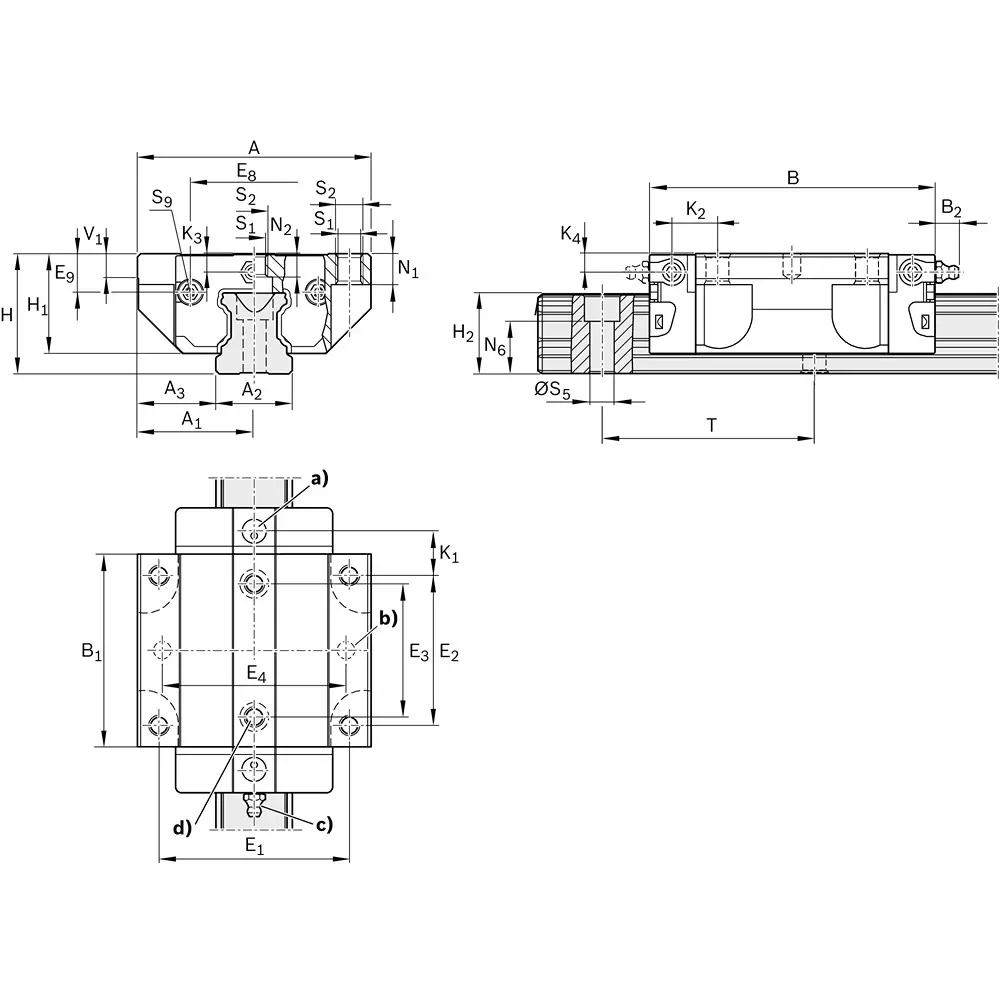

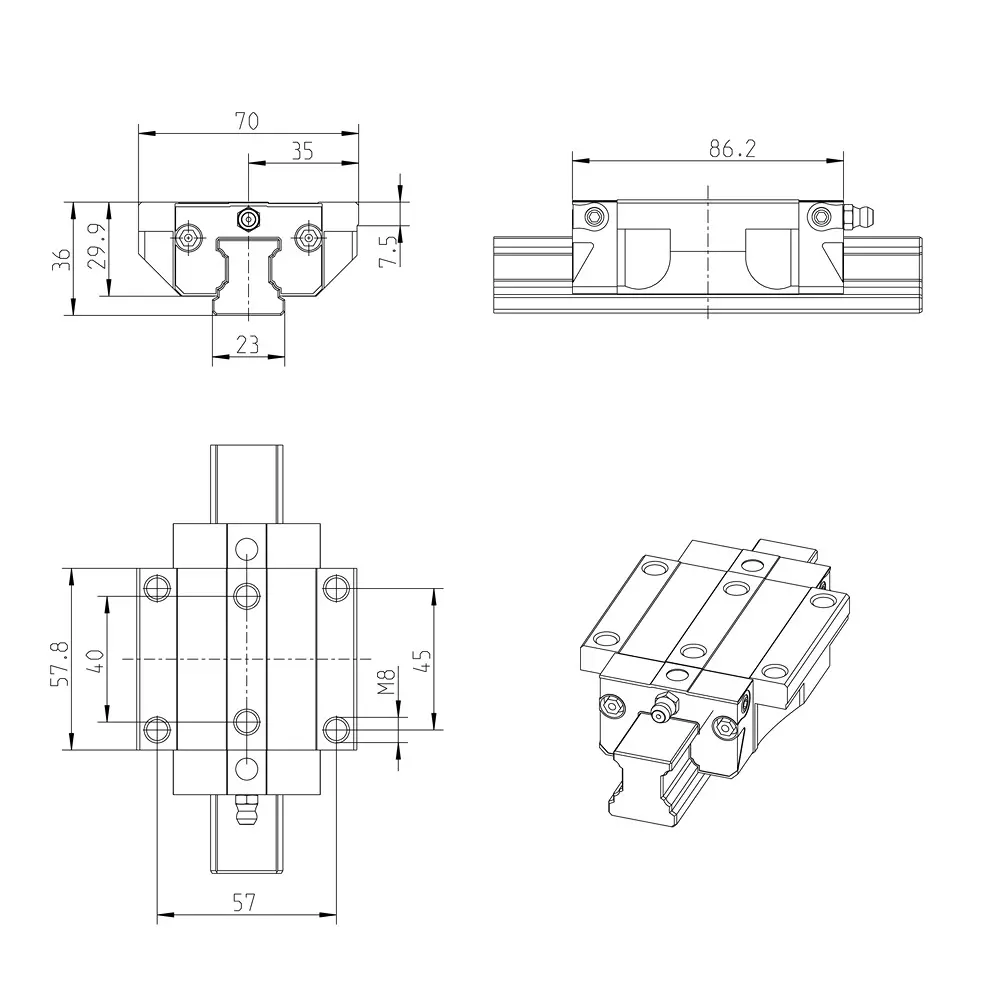

Dimension H1 |
29.9 mm |
Dimension E1 |
57 mm |
Dimension E2 |
45 mm |
Dimension t1 (mm) |
13 mm |
Dimension S1 (mm) |
6.7 mm |
Dimension B |
86.2 mm |
Version |
Ball Rail System |
Lubrication |
Pre-lubricated, Preserved |
Maximum Linear Speed |
5 m/s |
Acceleration |
500 m/s² |
Item Code |
R165122320 |
Width of Runner Block |
70 mm |
Dimension A1 |
35 mm |
Height of Runner Block |
29.9 mm |
Dimension A3 (mm) |
23.5 mm |
Chain |
Without Ball Chain (Standard) |
Dimension B1 (mm) |
57.8 mm |
Format |
FNS - Flange, Normal, Standard Height |
Length of Runner Block |
86.2 mm |
Dimension A |
70 mm |
Preload Class |
C2 - Medium Preload |
Nominal Size (mm) |
25 mm |
Dimension K1 (mm) |
12.45 mm |
Dimension H |
36 mm |
Dimension A2 (mm) |
23 mm |
Alignment |
Without Self-Alignment |
Dimension N1 (mm) |
9.3 mm |
