| Model No | CRWU60-180R |
| Type of Product | Cross Roller Way |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
CRWU60-180R |
Type of Product |
Cross Roller Way |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75737024 |
Import Country |
Direct Import from Japan |

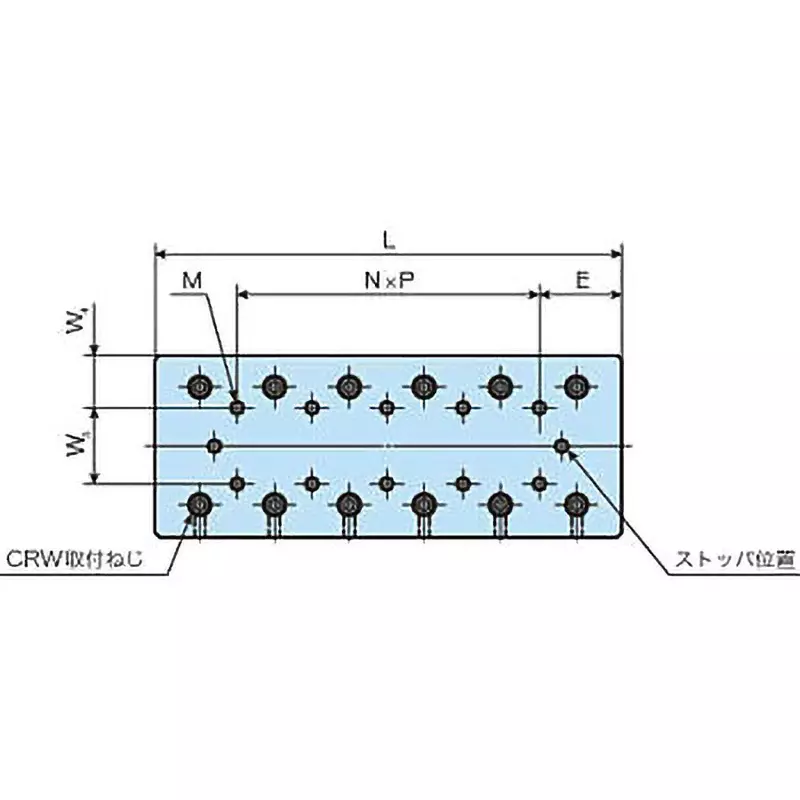

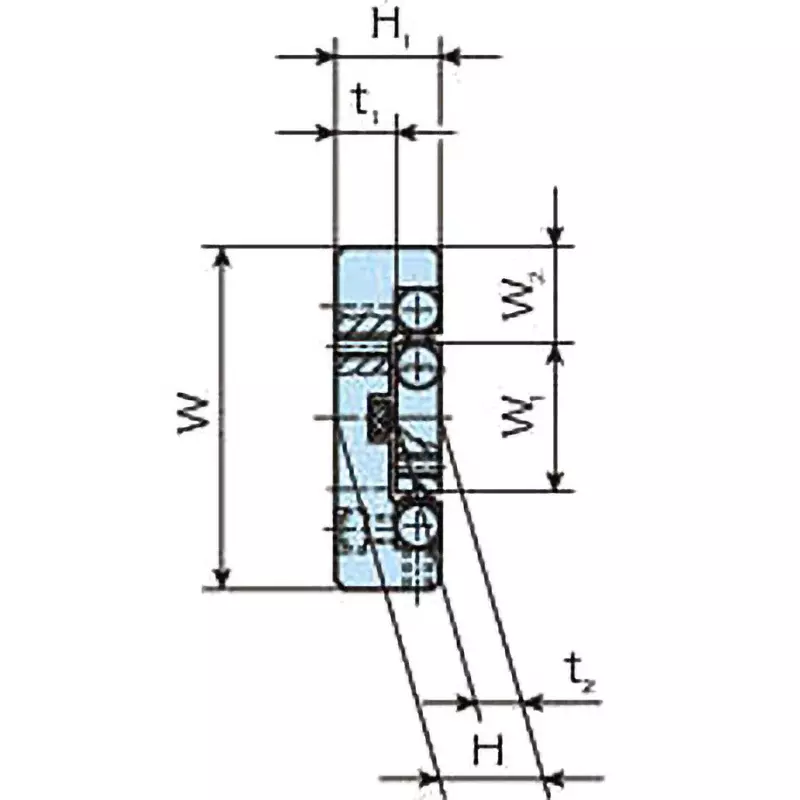

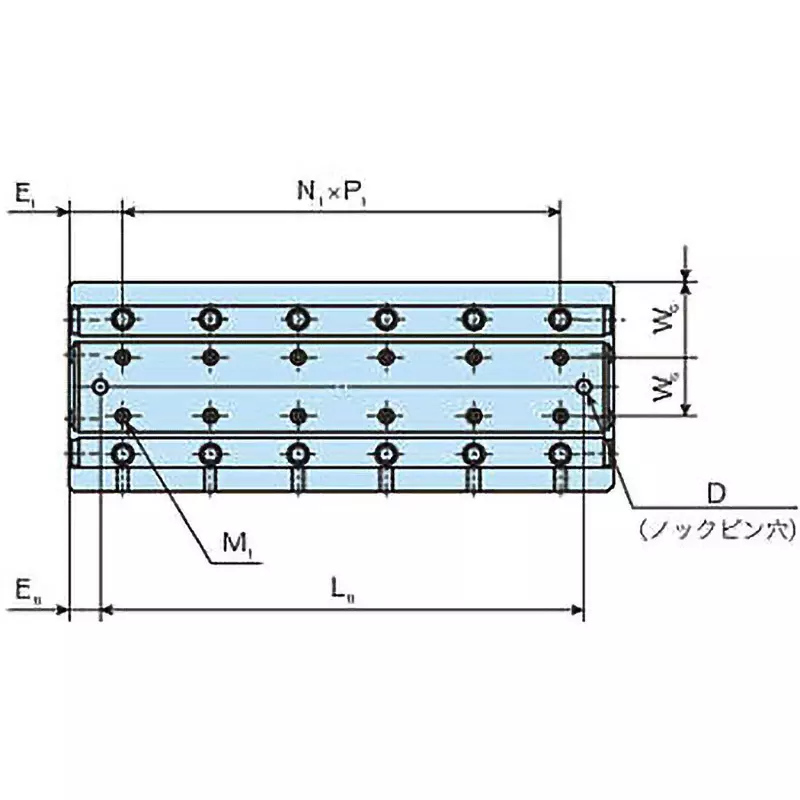

Specifications |
Static moment rating / 205 |
Dimension L (mm) |
180 |
Mass (Kg) |
1.5 |
Maximum Strokes (mm) |
105 |
Dimensions H (mm) |
18.5 (size difference ± 0.1) |
Dimensions D (mm) |
4 (Dimension difference 0 to +0.020) |
Dimensions E (mm) |
27.5 |
Dimension W |
50 mm (Dimension difference ± 0.1) |
Dimension W2 (mm) |
16.7 |
Dimension H1 |
18.5 |
Dimension W3 (mm) |
25 |
Basic Dynamic Load Rating (N) |
8040 |
Basic Static Load Rating (N) |
14600 |
Dimensions M (mm) |
M4 |
Dimension W1 (mm) |
26.6 |
Dimension E1 |
15 mm |
Allowable Loads |
4880 N |
Dimension M1 (mm) |
M4 |
