Ships within 25 days
View
View
View
View
| Model No | CRWU30-35 |
| Type of Product | Cross Roller Way |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
CRWU30-35 |
Type of Product |
Cross Roller Way |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75737417 |
Import Country |
Direct Import from Japan |
Specifications |
Static moment rating / 4.8 |

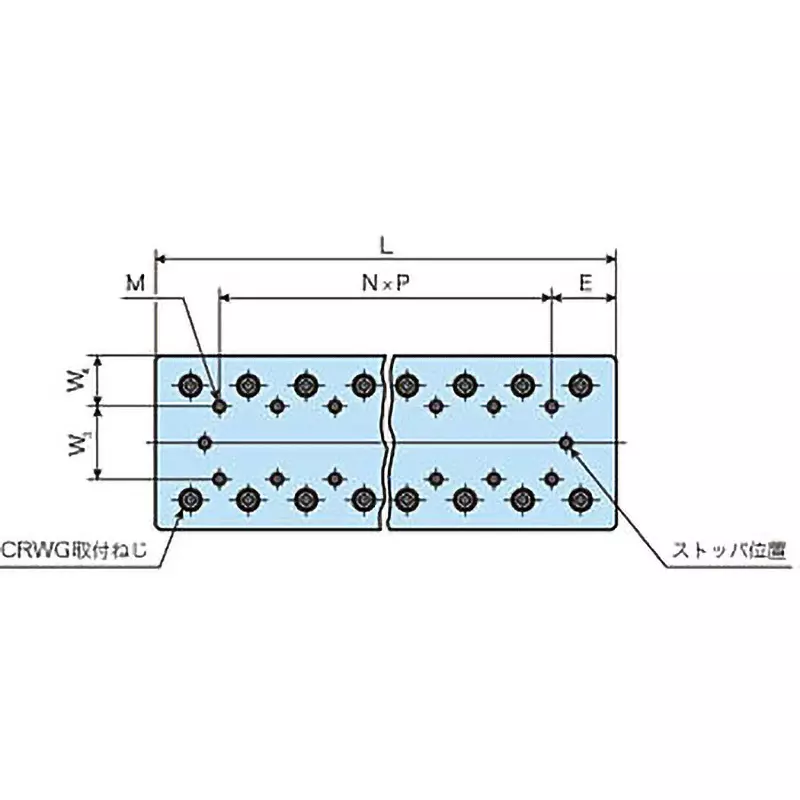

Dimension L (mm) |
35 |
Dimension L1 |
28 mm |
Mass (Kg) |
0.13 |
Maximum Strokes (mm) |
18 |

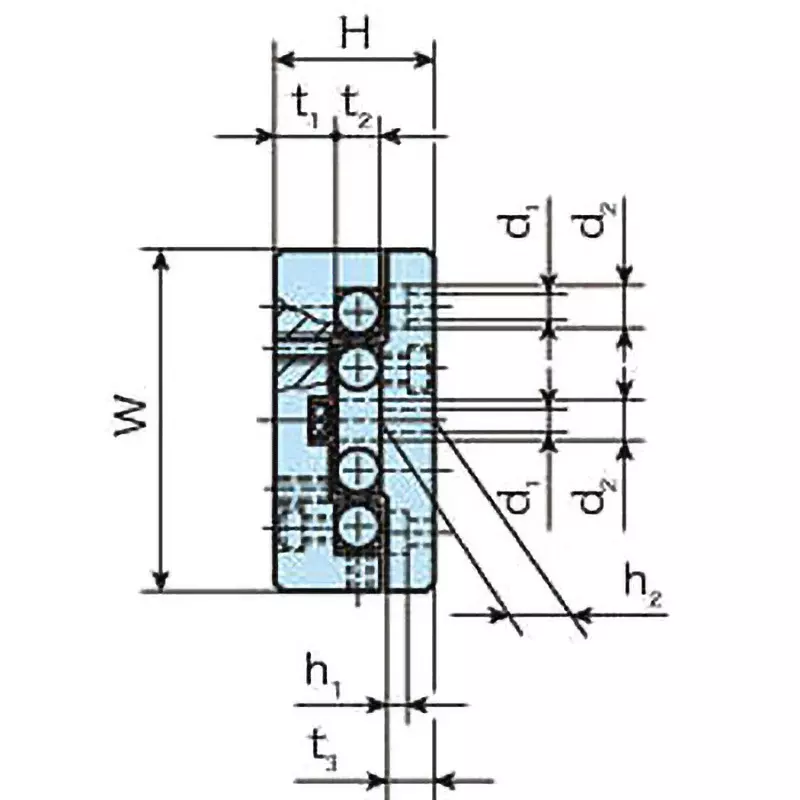

Dimensions H (mm) |
17 (Dimension difference ± 0.1) |
Dimensions E (mm) |
12.5 |
Dimension W |
30 mm (Dimension difference ± 0.1) |
Dimension D2 (mm) |
4.0999999999999996 |
Dimension D1 (mm) |
2.5499999999999998 |
Dimension H1 |
2.5 |
Dimension W3 (mm) |
10 |
Basic Dynamic Load Rating (N) |
525 |
Basic Static Load Rating (N) |
717 |
Dimensions M (mm) |
M2 |
Dimension E1 |
3.5 mm |
Dimension H2 |
6 |
Allowable Loads |
239 N |
