| Model No | LM101929NFOP |
| Type of Product | Linear Bushing LM-OP (Open Type) |
| Material | Stainless steel |
| Seal | Without seal |
Model No |
LM101929NFOP |
Type of Product |
Linear Bushing LM-OP (Open Type) |
Material |
Stainless steel |
Seal |
Without seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
LM |
Monotaro ID |
47168161 |
Import Country |
Direct Import from Japan |

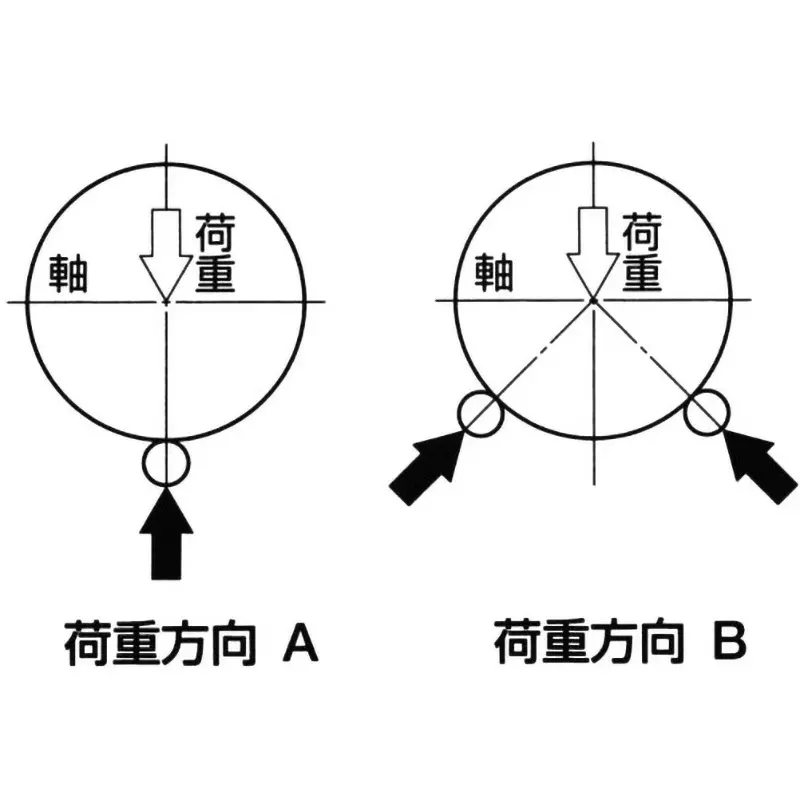

Basic static load rating Co (N) |
[Load direction A] 3620, [Load direction B] 501 |
Basic dynamic load rating C (N) |
[Load direction A] 179, [Load direction B] 179 |

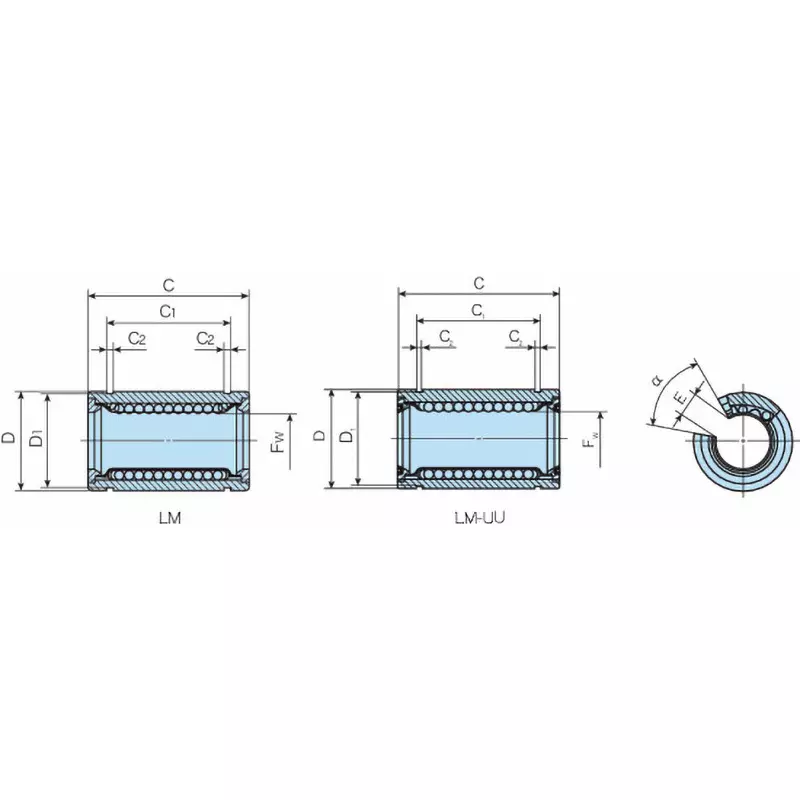

Dimensions D (mm) |
19 |
Dimensions C (mm) |
29 |
Dimensions E (mm) |
6.8 |
Dimension D1 (mm) |
18 |
Shape |
Open type |
Maximum Eccentricity (μm) |
12 |
Dimensional Tolerance (μm) |
(Fw) 0/-9, (D) 0/-13, (C) 0/-200, (C1) 0/-200 |
Row |
3 |
Dimension Fw (mm) |
10 |
Dimension C2 (mm) |
1.3 |
Material (Cage) |
Made of synthetic resin |
Angle α (°) |
80 |
Reference mass (g) |
23 |
Dimension C1 (mm) |
22 |
